Description

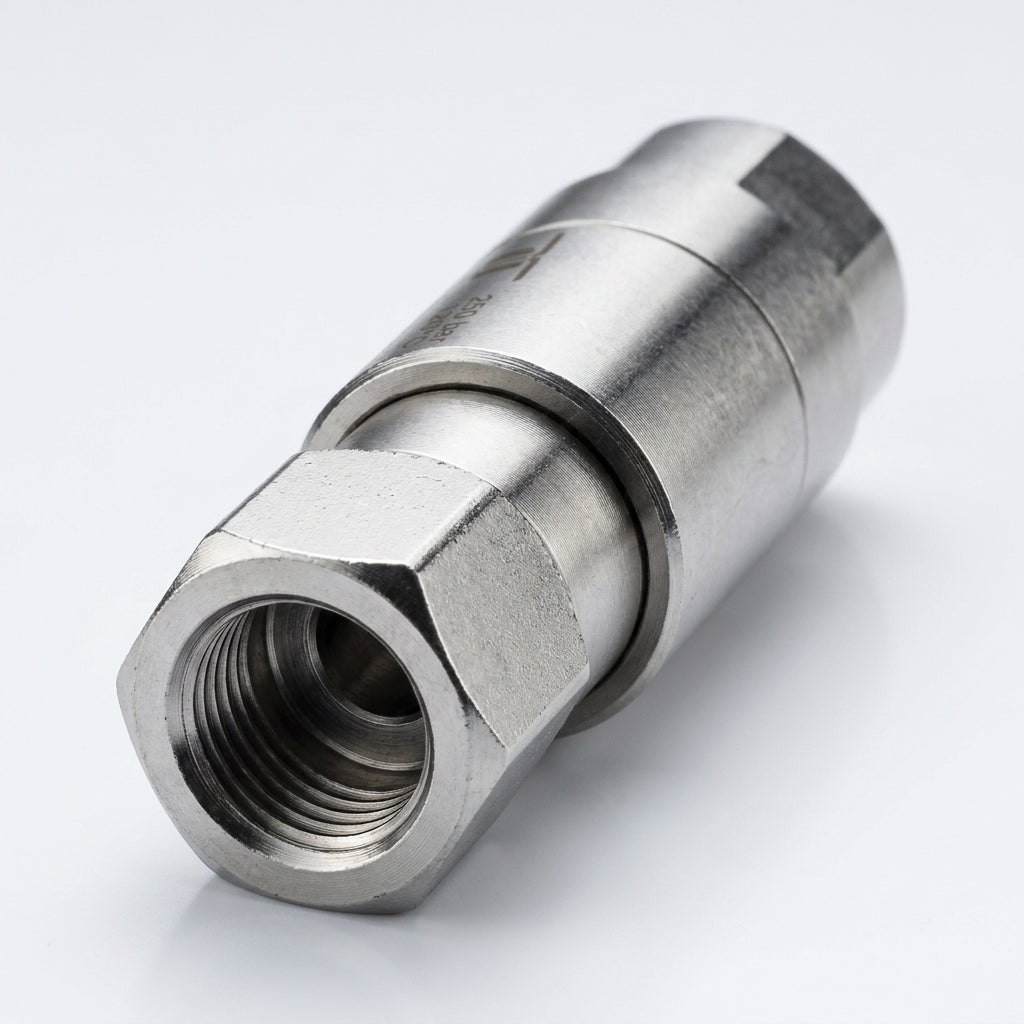

Compact triple bearing swivel coupling with female BSP inlet and outlet connections for high-pressure fluid transfer.
This nickel-plated brass swivel connector features a triple bearing system with stainless steel bearings designed for reliability under demanding conditions. The 1/4in BSP female inlet connects to a 3/8in BSP female outlet, enabling flexible directional control in confined spaces whilst maintaining full flow integrity.
Key Features
- Triple bearing system for smooth, unrestricted rotation
- Stainless steel bearings for corrosion resistance
- Nickel-plated brass body for durability
- Rated to 275 bar maximum working pressure
- Suitable for water, oil, air and compatible liquids (pH 3–12)
Specifications
- Inlet: 1/4in BSP Female
- Outlet: 3/8in BSP Female
- Maximum pressure: 275 bar
- Maximum speed: 1000 rpm at 30°C / 30 rpm at 120°C
- Body material: Nickel-plated brass
- Bearing material: Stainless steel
Applications
- Pressure washing and high-flow cleaning equipment
- Hydraulic and pneumatic systems
- Industrial hose assemblies and distribution lines
- Mobile and vehicle-mounted fluid transfer systems
- Water mist and irrigation control systems
