Description

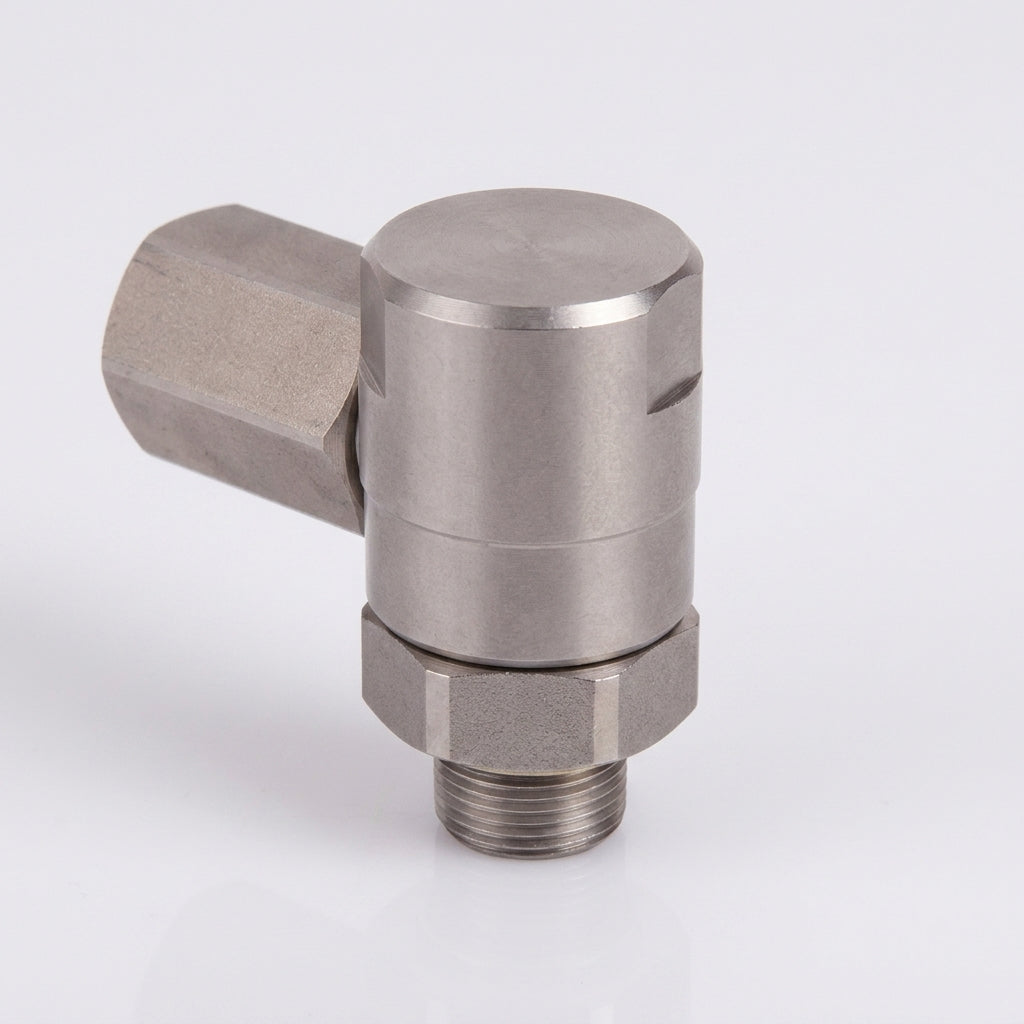

Stainless steel high-pressure swivel coupling rated to 600 bar with 3/8in BSP female and male connections.
This swivel joint combines robust stainless steel construction with NBR seals for reliable performance in demanding fluid transfer systems. The 600 bar pressure rating and 60 Lpm maximum flow capacity make it suitable for hydraulic and industrial applications where corrosion resistance is essential. Operating temperature range extends to 100°C, with a maximum rotation speed of 30 rpm.
Key Features
- 3/8in BSP female inlet and male outlet connections
- 600 bar rated working pressure
- Stainless steel body and pin construction
- NBR seals for fluid compatibility
- Maximum flow rate of 60 Lpm
- 30 rpm maximum rotation speed
Specifications
- Inlet: 3/8in BSP female
- Outlet: 3/8in BSP male
- Pressure rating: 600 bar
- Flow capacity: 60 Lpm
- Temperature rating: 100°C
- Body material: Stainless steel
- Seal type: NBR (buna)
Applications

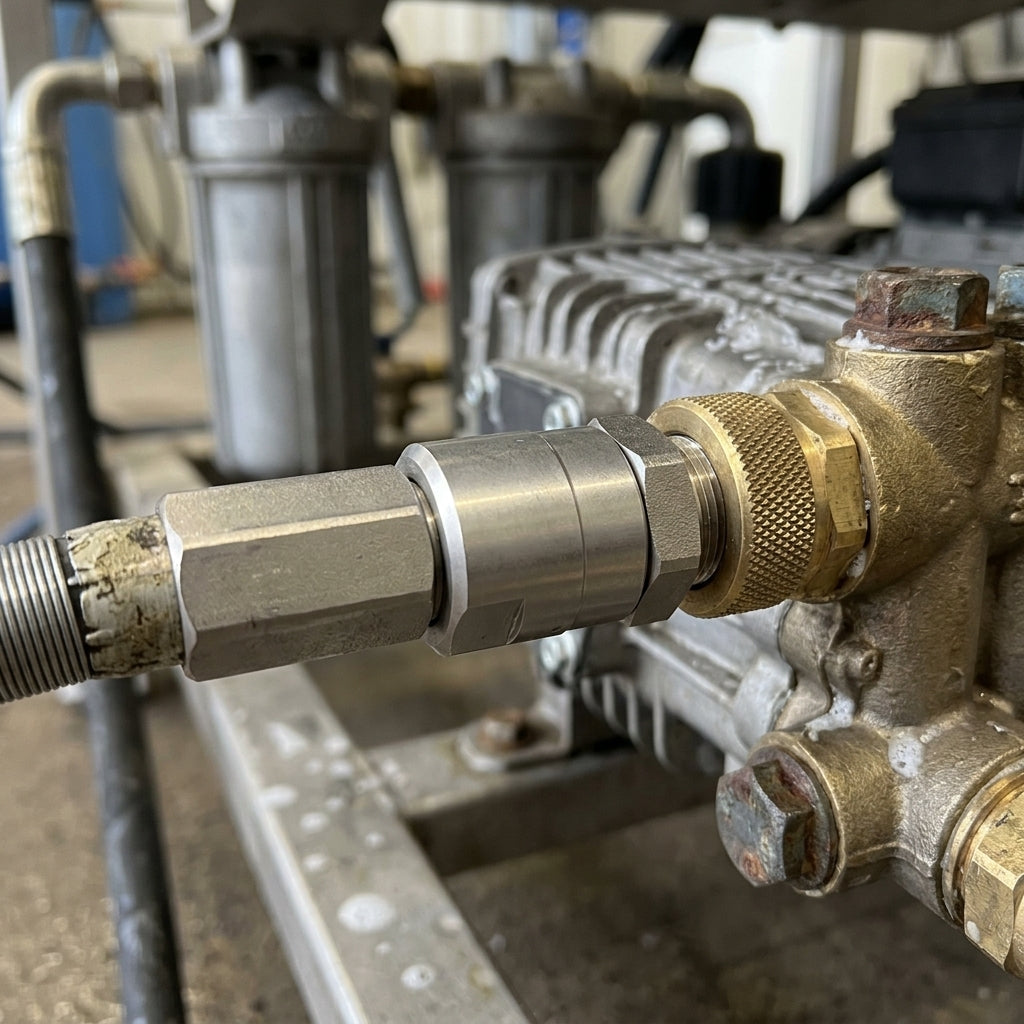

- High-pressure hydraulic fluid transfer systems
- Industrial pump and motor connections
- Rotating equipment requiring corrosion resistance
- Marine and offshore fluid handling
- Chemical and corrosive fluid applications
