Professional PVC Threshold Drainage Channel Connector with Outlet - Low Profile and Standard Profile Options for Secure Connections

Product Overview

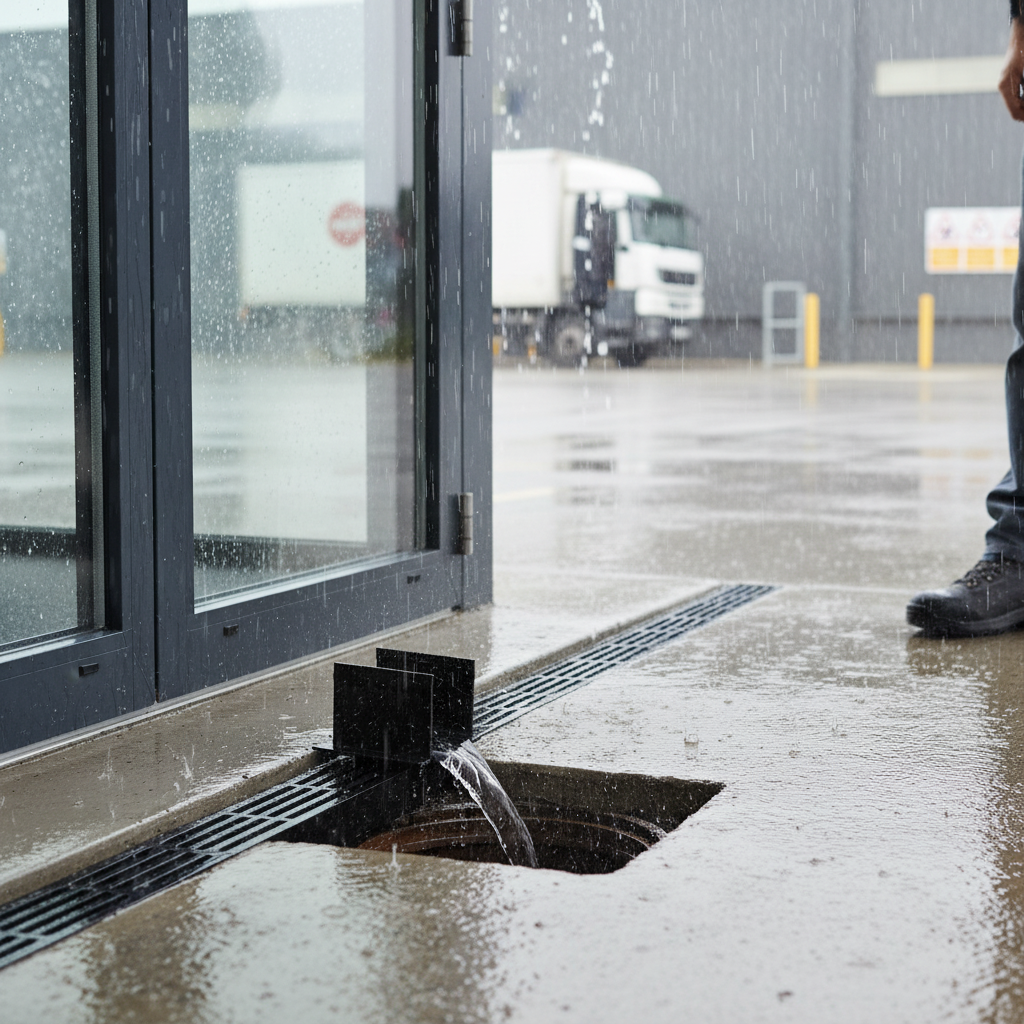

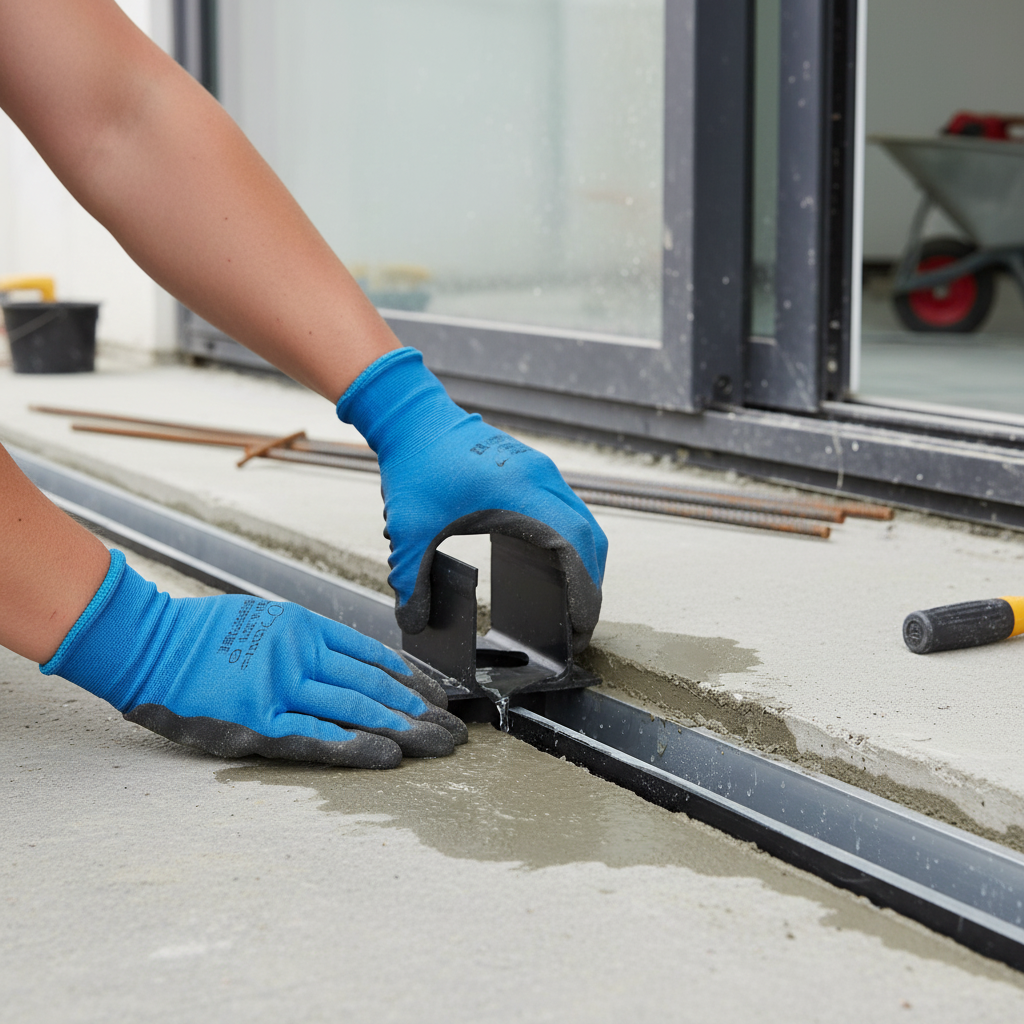

The Professional PVC Threshold Drainage Channel Connector allows seamless connections between two 1 metre long drain channels, ensuring a safe, secure, and strong hold. Designed to lay flush to the floor with no overlap, this connector provides maximum discretion and is ideal for various applications around the home or in areas with low or no vehicular traffic.

Key Features

• Compatible with drain channels that measure 65mm in width, 103mm in depth, and 1m in length.
• Available in two profiles: Low profile with a 75mm diameter hole and Standard profile with an 85mm diameter hole.
• Water outlet included for effective drainage.
• UKCA and CE marked, fully certified to Load Class A 15 of the BS EN 1433:2002.
• Withstands forces of up to 15kN (approximately 1.5 tonnes) in soft ground and around 25kN in concrete.
• All PVC parts can be connected in a waterproof manner using PVC solvent weld.

Dimensions & Specifications

Technical Specifications

• Material: PVC
• Load Class: A 15
• Compliance: UKCA, CE marked
• Force Resistance: Up to 15kN in soft ground, 25kN in concrete

FAQ

1. What is the purpose of this connector?

This connector is designed to join two drain channels securely while maintaining a low profile for aesthetic purposes.

2. Can I use this connector for areas with heavy vehicular traffic?

This connector is best suited for areas with low or no vehicular traffic as it is certified for Load Class A 15, which is designed for pedestrian traffic.

3. How do I ensure the connections are waterproof?

You can achieve waterproof connections by using PVC solvent weld to join the parts.
