Description
Premium Warehouse Impact Rail

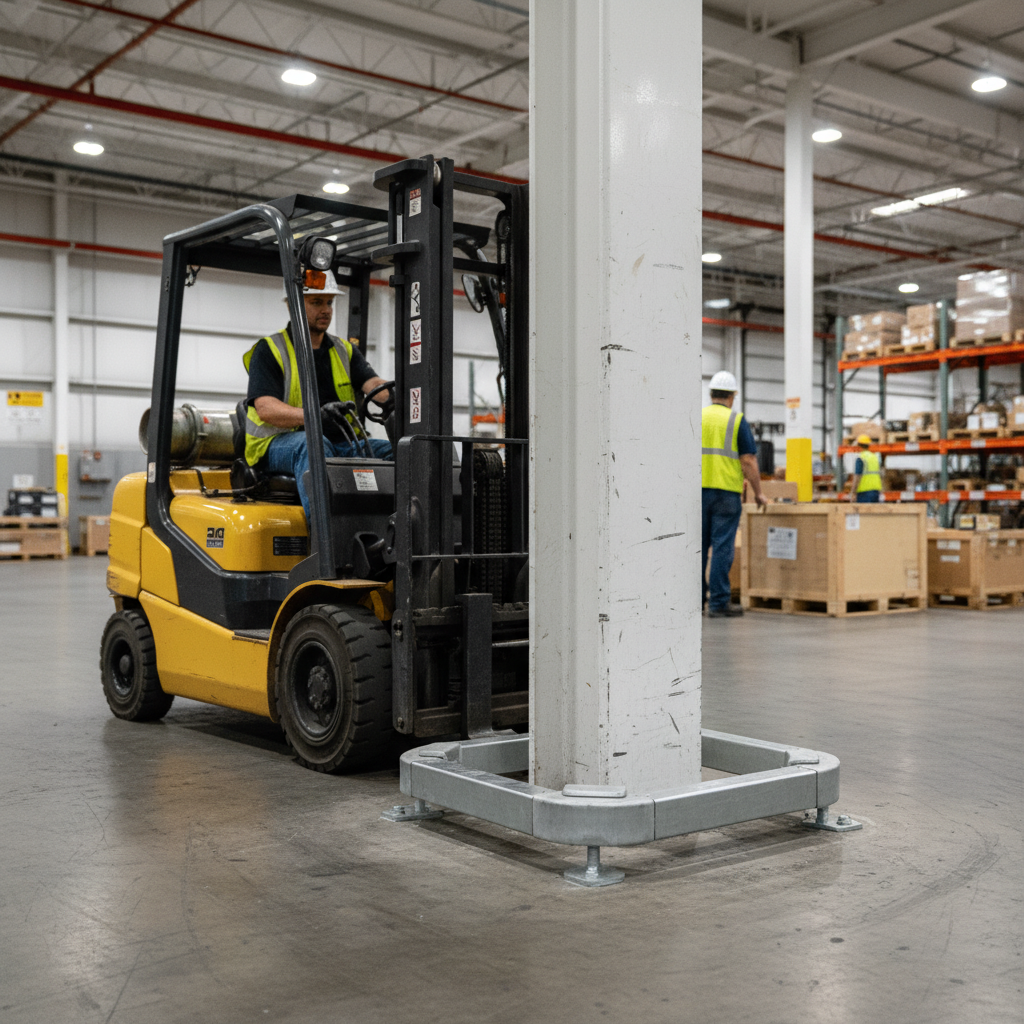

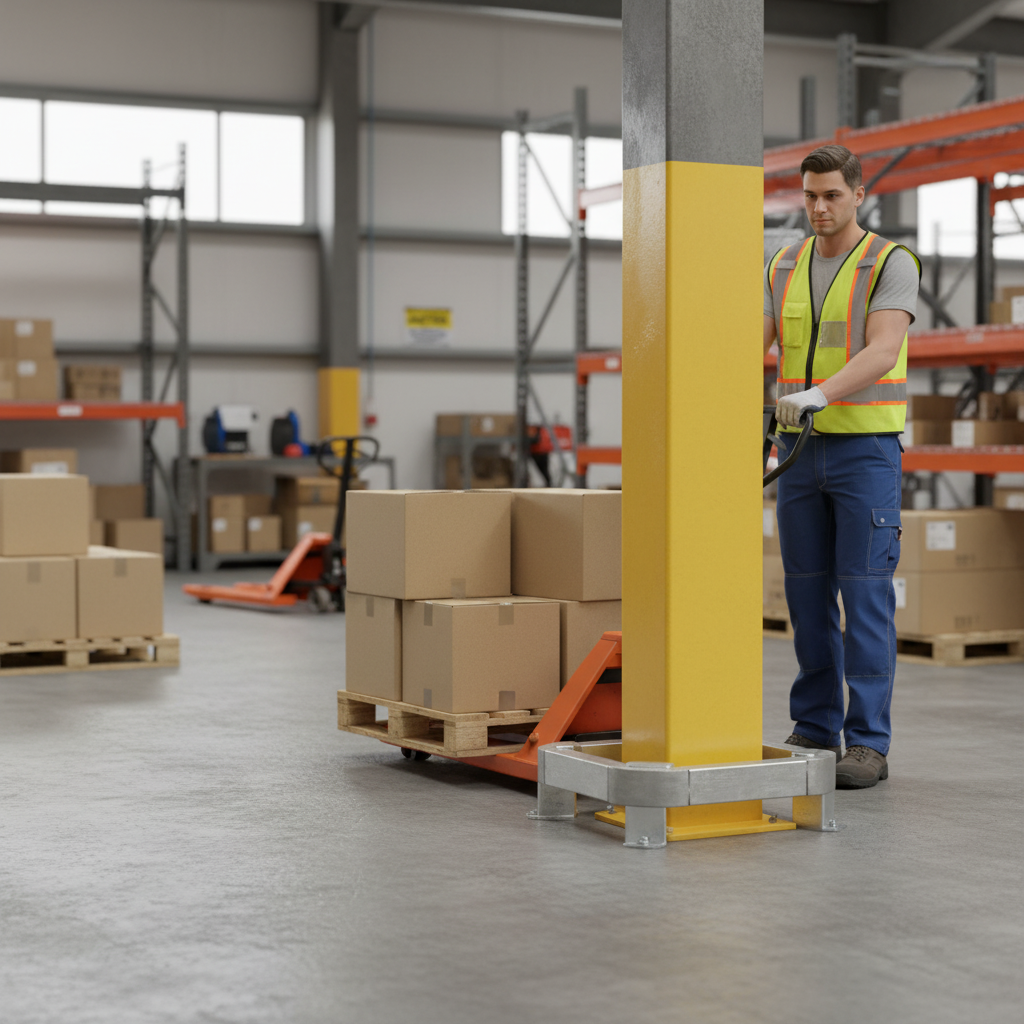

The Premium Warehouse Impact Rail is an essential solution for protecting property and equipment in back-of-house applications such as warehouses, cold rooms, and trucking route corridors. This versatile impact rail is designed to withstand low-speed impacts, reducing the risk of accidental damage caused by vehicles and roll cages maneuvering around your site.
With a galvanised, hot-dipped finish, this impact rail promises a tough service life. Coupled with robust aluminium feet, ends, and corners, it can be assembled to any length and configured to suit both internal and external corners, making it adaptable to various site layouts.
Constructed from a 76x51mm galvanised steel box section, the rail is supplied in 2500mm lengths and complemented with a range of cast aluminium fittings. This ensures unparalleled strength, making it perfect for daily activities in your back-of-house operations.
The support foot of the rail features front and back fixing positions designed to absorb impact energy effectively. Each foot can withstand a load of up to 2 tons, providing peace of mind when it comes to safety and durability.
Features:
- 76x51mm Galvanised Steel Box Section with aluminium feet, ends, and corners
- Maximum distance between feet: 2000mm
- Maximum distance of foot from end or corner: 150mm
- Finished height above floor level: 262mm
- Finished depth: 136mm
- Recommended fixings: 2 x M10x80 raw bolts per foot, dependent on site conditions
- Cast aluminium fittings for enhanced durability
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Rail Length | 2500mm |
| Load Capacity per Foot | 2 tons |
| Rail Height | 262mm |
| Rail Depth | 136mm |
FAQ
Q: Can the impact rail be used outdoors?A: Yes, the Premium Warehouse Impact Rail is suitable for both internal and external use, providing durable protection in various environments.
Q: How is the rail installed?A: The rail can be easily installed with recommended fixings, and our adjustable corner fittings allow for installation at any angle for optimum deflection.
Q: What is the maximum distance between support feet?A: The maximum distance between support feet is 2000mm, allowing for flexible installation based on your requirements.
