Premium PVC Threshold Drain with Stainless Steel Grating - 1 Metre Length for Efficient Water Management

Product Overview

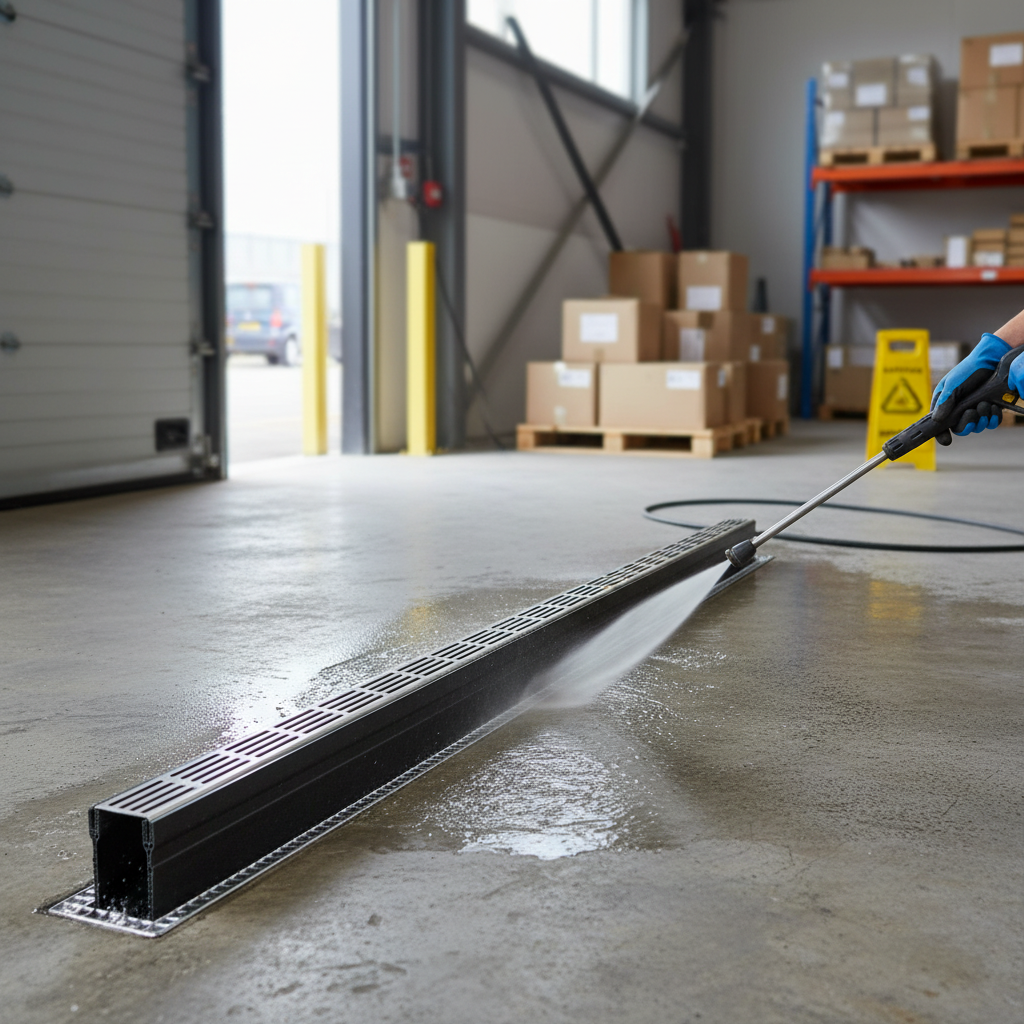

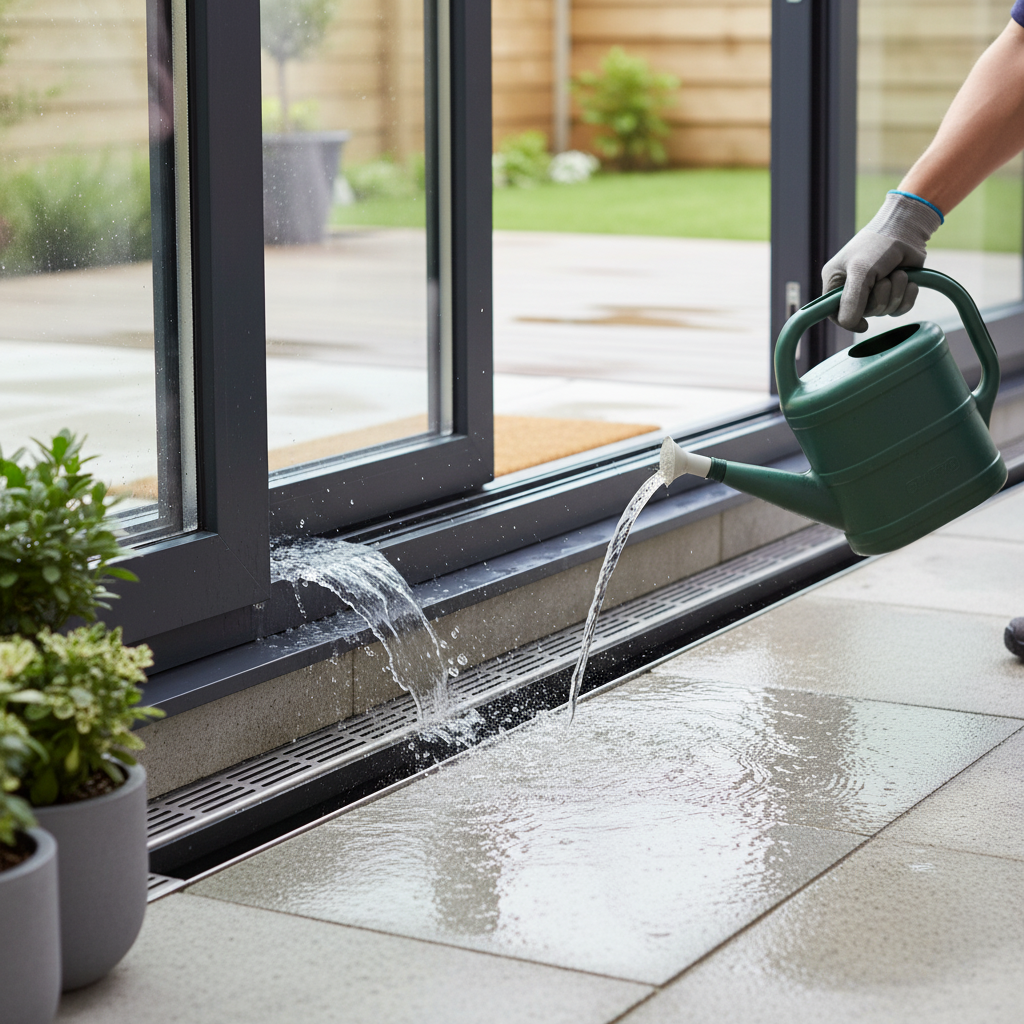

This Premium PVC threshold drain is a slim drainage channel designed for residential projects in non-trafficked areas, such as patios, pathways, and walkways. It efficiently gathers and redirects water, preventing stagnant pools around entrances, patios, and pedestrian spaces near homes or businesses.

The linear drainage channel, also known as a trench drainage channel, controls water runoff effectively at doorways or entrances. This solution is ideal for both commercial and residential structures that are prone to water ingress, protecting walls and foundations from potential damage while maintaining a secure living or working environment. Additionally, threshold drains reduce surface runoff in urban settings, thereby minimizing the likelihood of local flooding.

Technical Specifications

This threshold drainage strip is fully compliant with load class standard A 15 BS EN 1433:2002 and meets the requirements of Part M of the Building Regulations, ensuring it withstands forces of up to 15 kN (approximately 1.5 tonnes) in soft ground and approximately 25 kN in concrete. This robust construction makes it suitable for light-duty applications both indoors and outdoors, such as:

• Skirting the base of indoor pools
• Patio and garage thresholds
• Pedestrian footpaths
• Bridleways

Dimensions & Specifications

Benefits

• Prevents water damage and stagnant pools
• Contributes to a secure living or working environment
• Reduces local flooding in urban areas
• Compliant with safety standards for peace of mind

FAQs

• Can this drain be used outdoors?
  Yes, it is suitable for both indoor and outdoor applications.
• What is the load capacity of the drain?
  The drain can withstand up to 15kN in soft ground and 25kN in concrete.
• Is installation straightforward?
  Yes, the installation process is designed to be user-friendly.
