Description
Premium Cranked HGV Wheel Guides

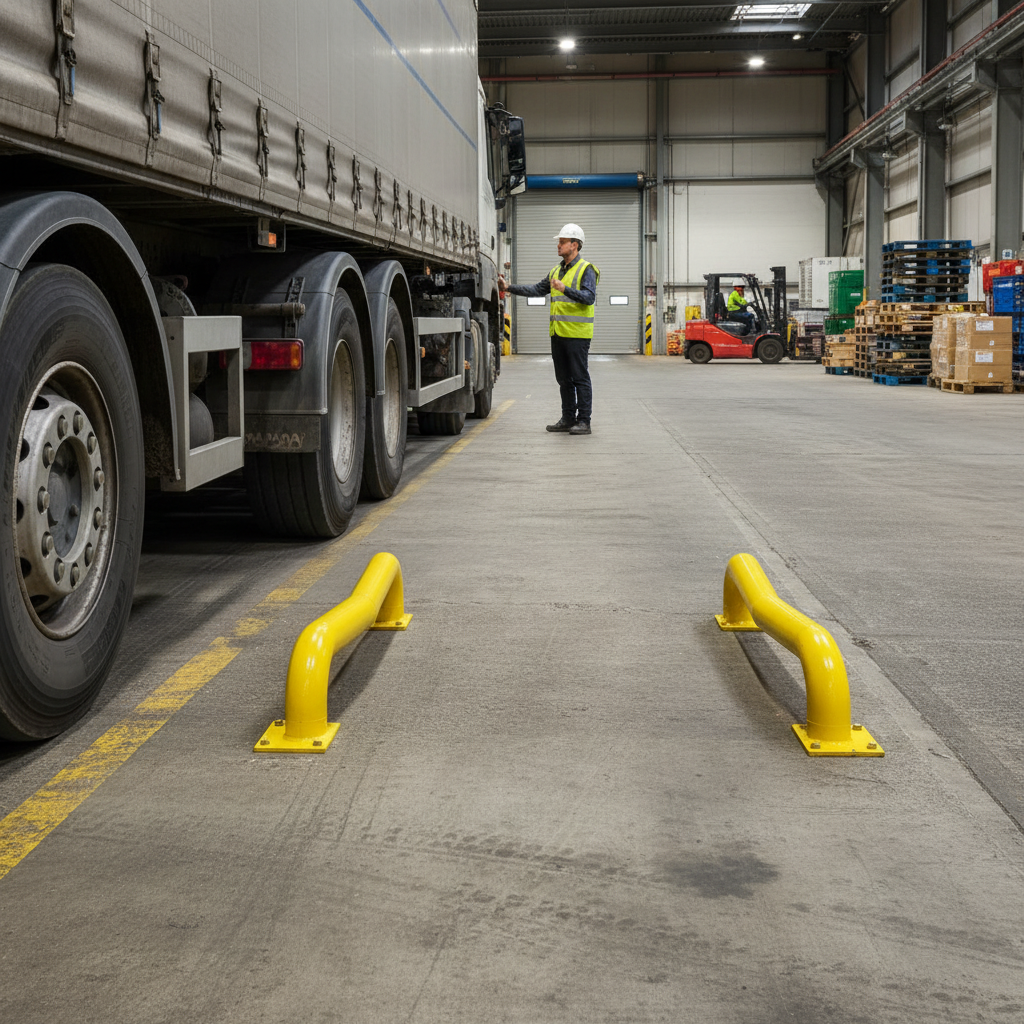

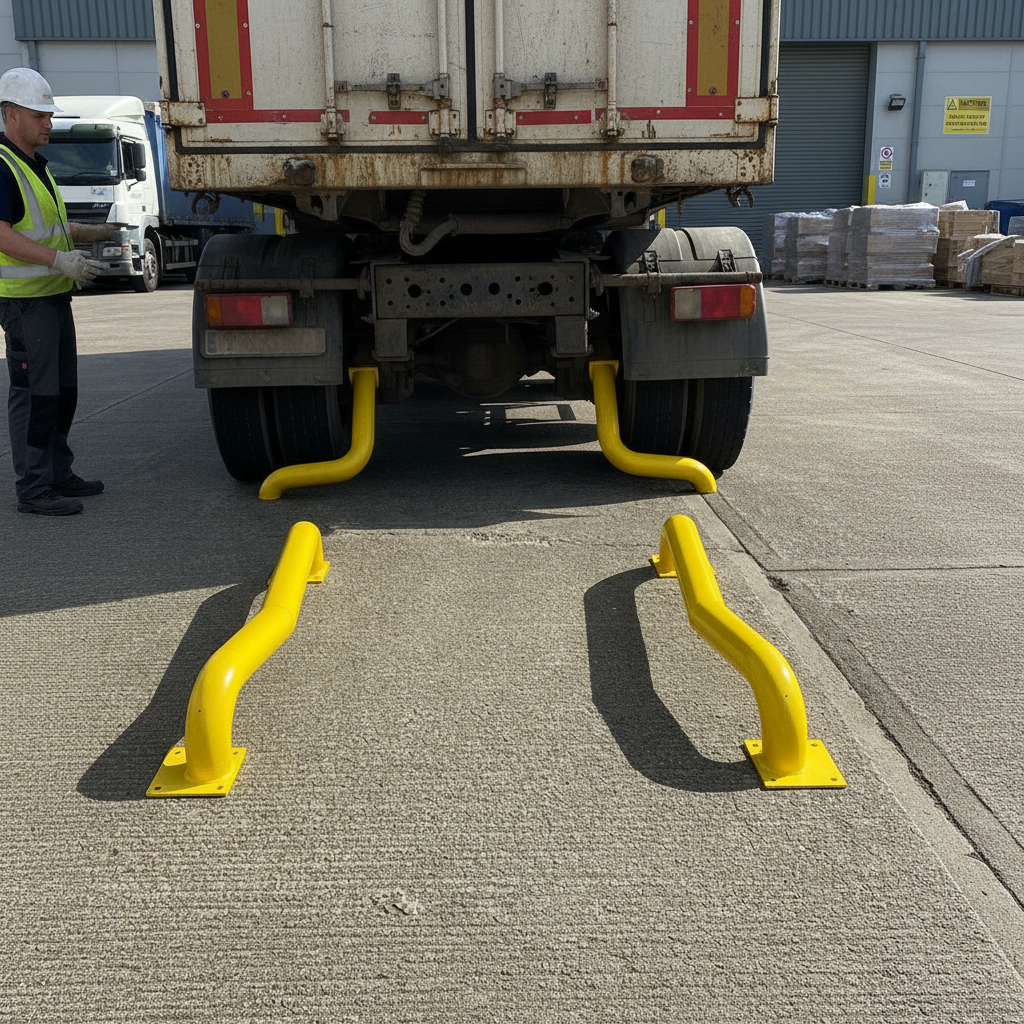

Our Premium Cranked HGV wheel guides provide a solid, steel kerb designed for the safe reversing into loading bays by large vehicles such as wagons and delivery trucks. These guides are also effective in protecting racking, equipment, and machinery from potential damage caused by forklift trucks and moving vehicles.
Manufactured from galvanised mild steel and then powder-coated yellow, these guides not only serve a functional purpose but also provide a visual and physical aid for drivers in busy environments.
Sold in pairs. Each pair includes 1 left-hand crank and 1 right-hand crank. Please note that these guides are available for bolt-down installation only.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 1800mm |
| Diameter Options | 76mm, 90mm, 139mm, 168mm |
| Square Plate Size | 250mm x 10mm |
| Height | 320mm |
| Wall Thickness | 5mm |
| Crank Angle | 15° |
Technical Specifications
- Heavy-duty construction for durability and strength
- Powder-coated finish for added protection
- Easy installation with required bolts
FAQs
- What vehicles are sudirectstock.co.ukle for use with these wheel guides? These wheel guides are sudirectstock.co.ukle for large vehicles including HGVs, wagons, and delivery trucks.
- How are the wheel guides installed? The wheel guides are designed for bolt-down installation and come with specifications for the required bolts.
- Can these guides be used in outdoor environments? Yes, the galvanised mild steel and powder-coated finish make them sudirectstock.co.ukle for outdoor use.
