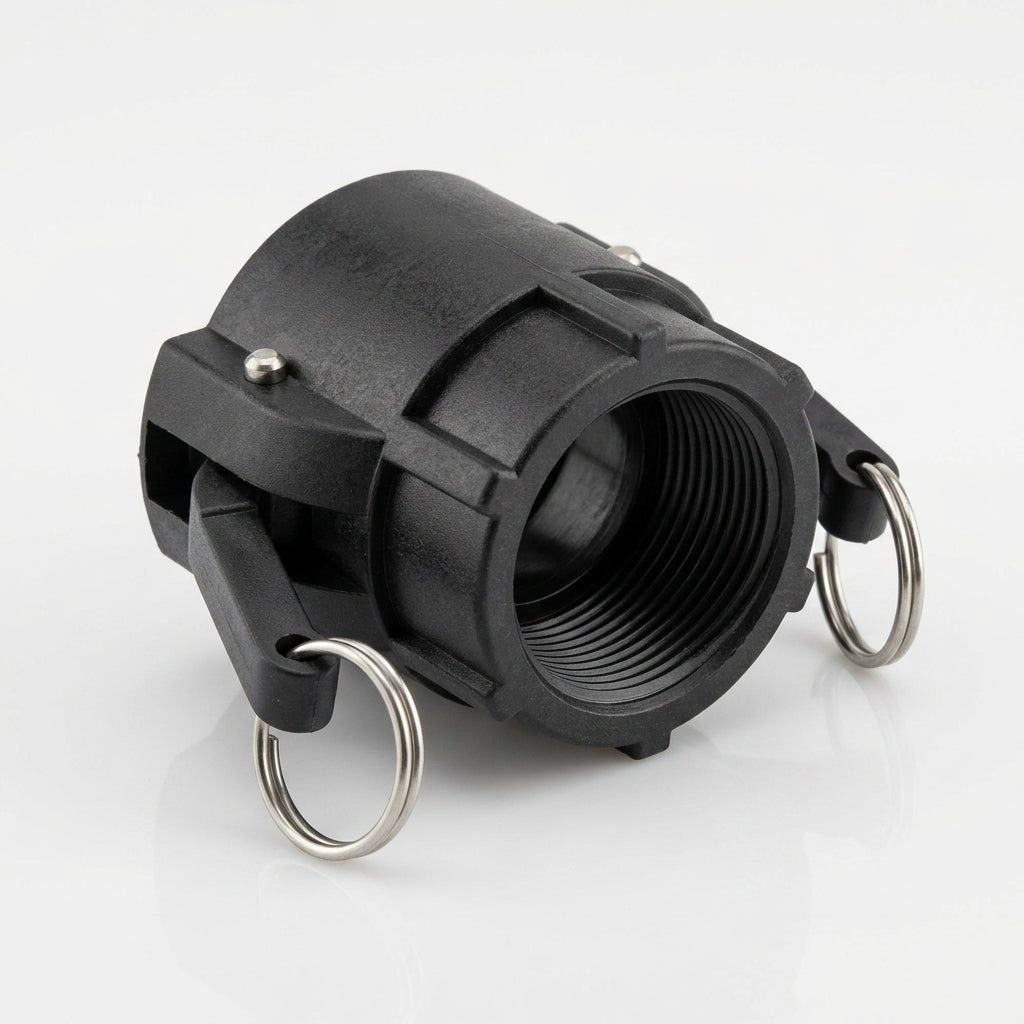

Polypropylene Cam Lever Coupler – 3/4in Female Thread

A durable polypropylene cam lever coupler with stainless steel components for secure, quick-connect fluid transfer applications.

This female-threaded coupling connects to 3/4in adaptors and fittings, combining a robust glass-reinforced polypropylene body with corrosion-resistant stainless steel arms, rings and pins. The integrated EPDM gasket ensures a watertight seal across a wide temperature range, making it suitable for agricultural, industrial and domestic water distribution systems.

Key Features

• Glass-reinforced polypropylene construction for strength and chemical resistance
• Stainless steel arms, rings and pins resist corrosion
• EPDM gasket provides reliable sealing
• 3/4in female thread and 3/4in coupling for standard adaptor compatibility
• Temperature-rated performance from -17.8°C to 47.8°C
• Cam lever mechanism enables one-handed operation

Specifications

• Thread size: 3/4in female
• Coupling size: 3/4in
• Body material: glass-reinforced polypropylene
• Hardware material: stainless steel
• Gasket material: EPDM
• Maximum pressure at -17.8°C: 6.4 bar
• Maximum pressure at 21.2°C: 8.6 bar
• Maximum pressure at 47.8°C: 4.8 bar

Applications

• Garden and agricultural water supply connections
• Caravan and mobile unit water systems
• Industrial fluid transfer lines
• Domestic water distribution networks
• Pressure washer and irrigation equipment connections
