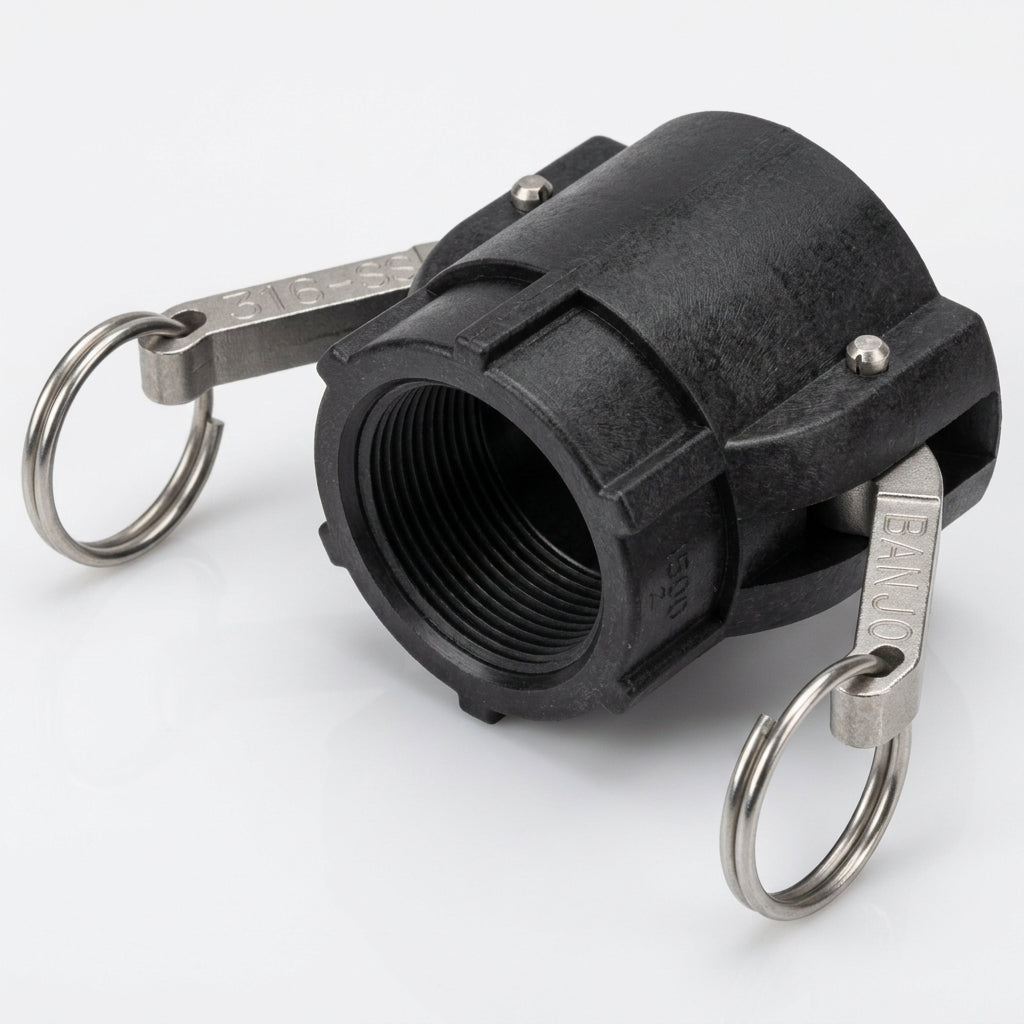

Polypropylene Cam Lever Coupler – 2in Female Thread x 2in Coupling

Robust cam lever coupling in glass-reinforced polypropylene with stainless steel fittings for secure, leak-free connections.

This 2in female thread to 2in coupling combines durable engineered plastic construction with corrosion-resistant stainless steel arms, rings and pins. The EPDM gasket provides reliable sealing across a range of operating temperatures, making it suitable for both heated and ambient fluid transfer systems. Compatible with standard 2in adaptors.

Key Features

• Glass-reinforced polypropylene body for chemical and UV resistance
• Stainless steel cam arms, locking rings and pins for durability
• EPDM gasket for temperature-stable sealing
• 2in female thread and 2in coupling connection points
• Pressure-rated across three temperature ranges for flexible deployment
• Compact lever-action coupling mechanism for quick connect/disconnect

Specifications

• Connection: 2in female thread × 2in coupler
• Material: Glass-reinforced polypropylene body; stainless steel hardware
• Gasket: EPDM
• Maximum pressure at -17.8°C: 6.4 bar
• Maximum pressure at 21.2°C: 8.6 bar
• Maximum pressure at 47.8°C: 4.8 bar
• Adaptor compatibility: 2in standard adaptors

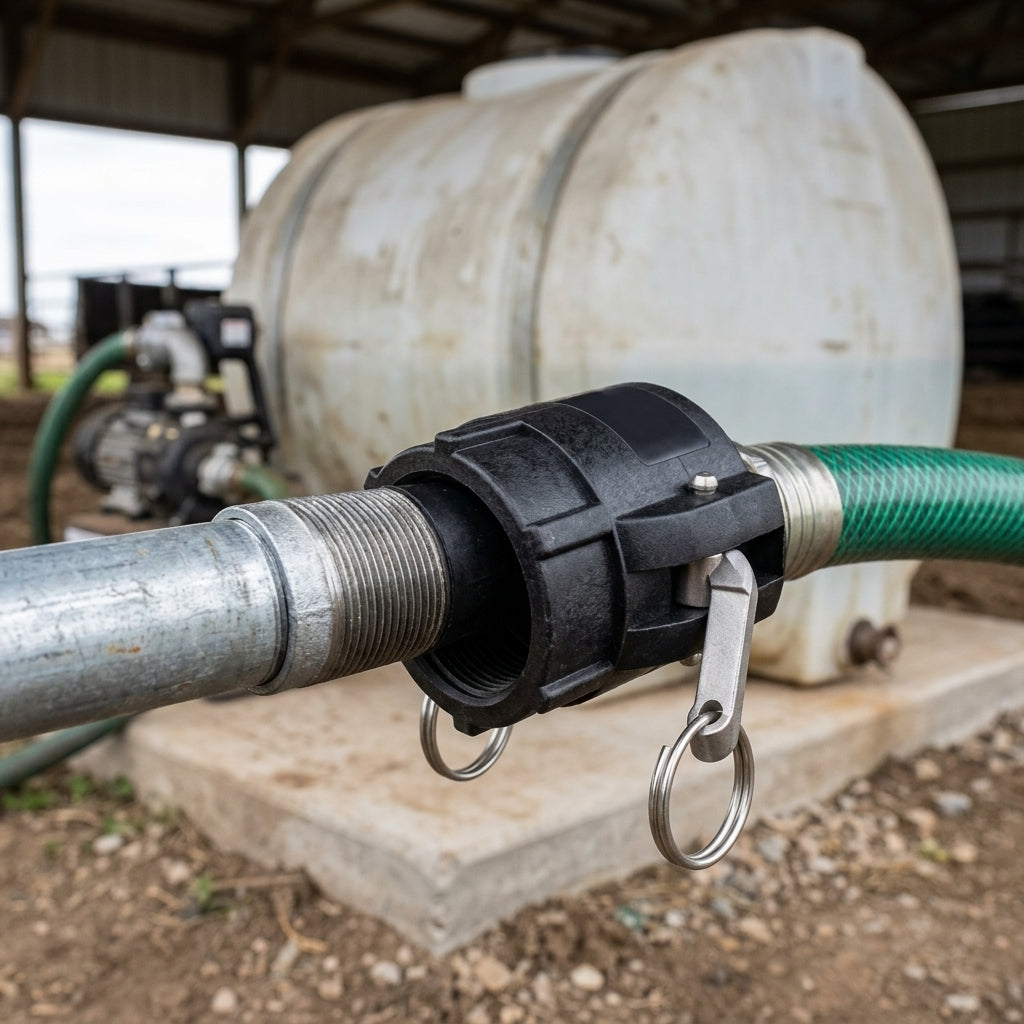

Applications

• Chemical and water transfer systems requiring corrosion resistance
• Agricultural and horticultural fluid distribution
• Industrial mobile tank connections
• Temperature-variable outdoor and indoor installations
• Rapid-deployment coupling in portable tank operations
