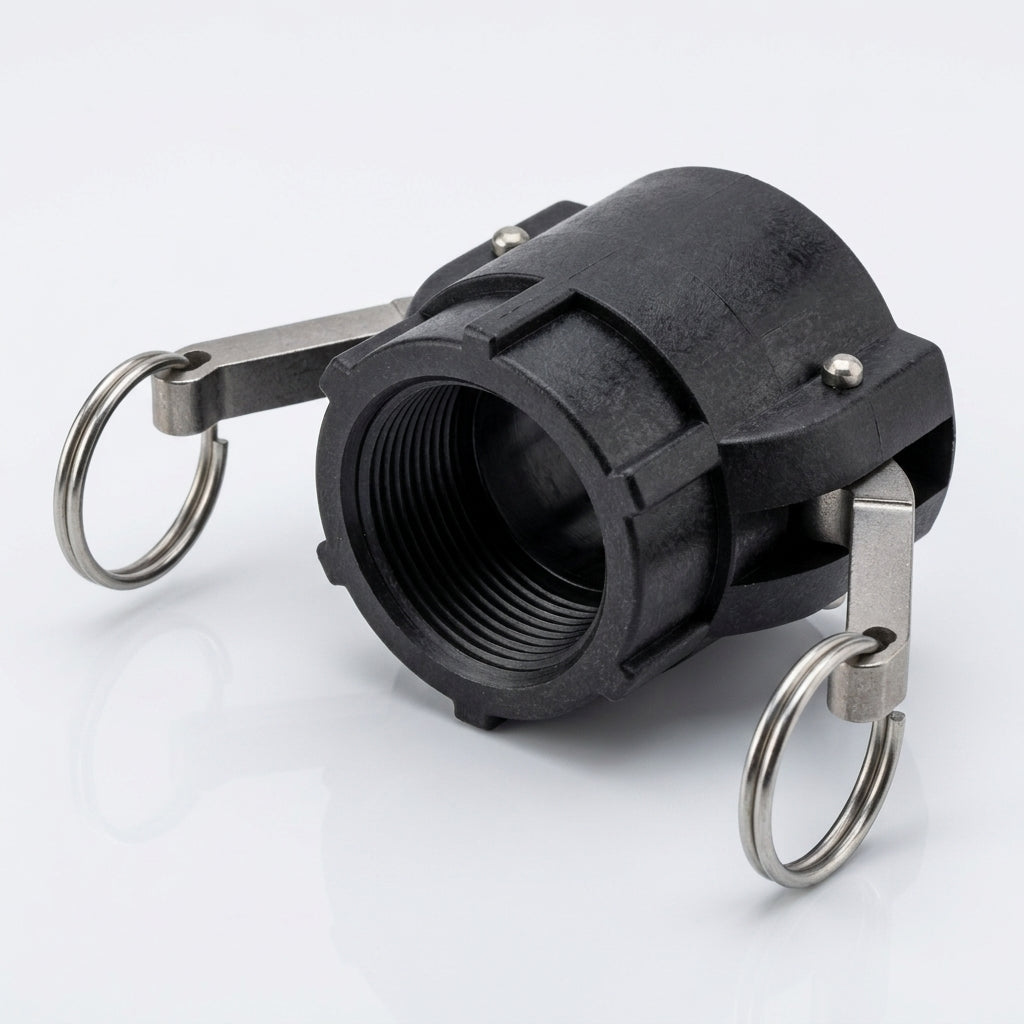

Polypropylene Cam Lever Coupler – 1in Female x 1in Thread

Glass-reinforced polypropylene cam lever coupler with 1in female thread and 1in coupling connection.

This quick-connect coupling combines lightweight engineering-grade polypropylene construction with corrosion-resistant stainless steel levers, rings and pins. The EPDM gasket provides reliable sealing for a wide range of fluid applications across temperature ranges from -17.8°C to 47.8°C. Rated for pressures up to 8.6 bar at 21.2°C.

Key Features

• 1in female thread x 1in coupling configuration
• Glass-reinforced polypropylene body
• Stainless steel arms, rings and pins for durability
• EPDM gasket for dependable sealing
• Temperature range: -17.8°C to 47.8°C
• Compatible with standard 1in adaptors

Specifications

• Thread size: 1in female
• Coupling size: 1in
• Material: Glass-filled polypropylene body with stainless steel hardware
• Gasket type: EPDM
• Maximum pressure at -17.8°C: 6.4 bar
• Maximum pressure at 21.2°C: 8.6 bar
• Maximum pressure at 47.8°C: 4.8 bar

Applications

• Agricultural spraying and irrigation systems
• Chemical transfer and storage connections
• Water distribution and tank coupling
• General fluid handling and transfer
• Light industrial pumping applications
