Heavy Duty Manual Raise Arm Barrier for 6.0m to 9.0m Road Widths with Durable Aluminium Boom and Locking Mechanism

Heavy Duty Manual Raise Arm Barrier

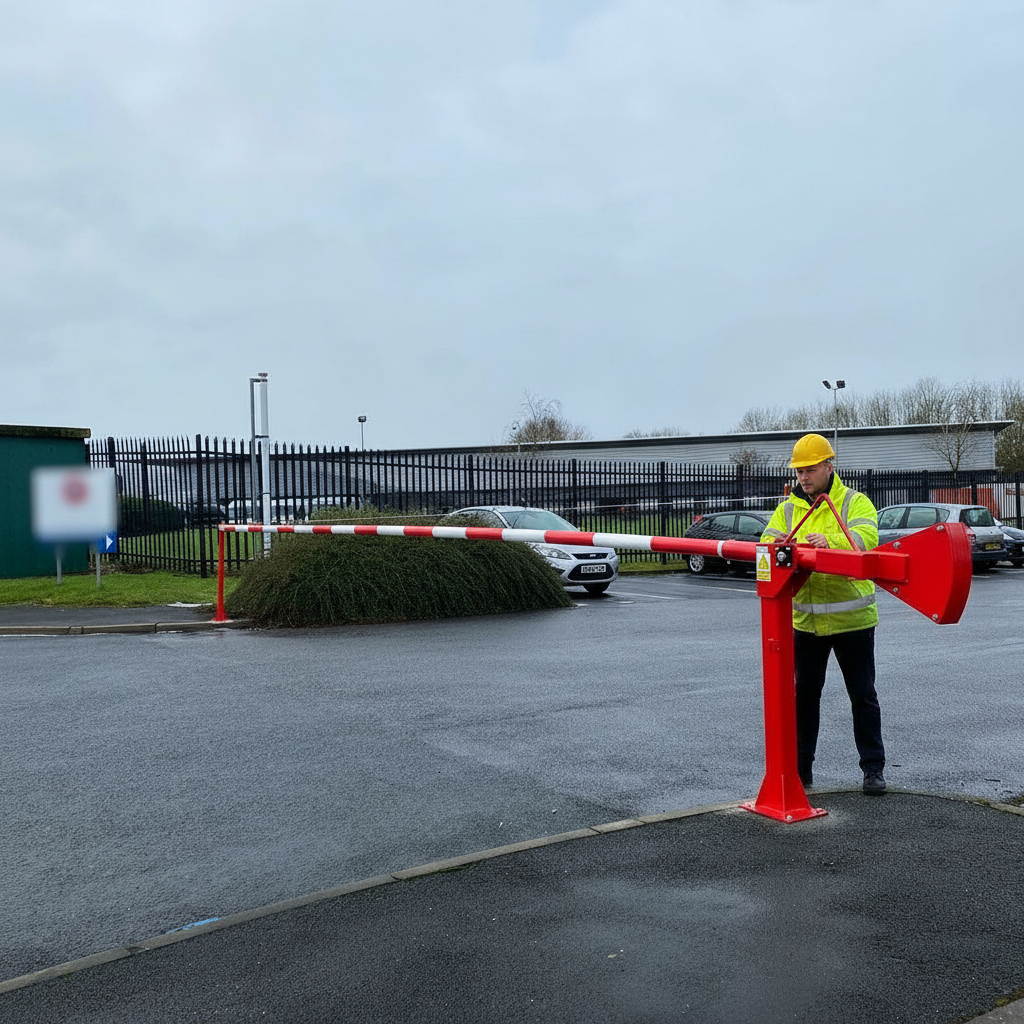

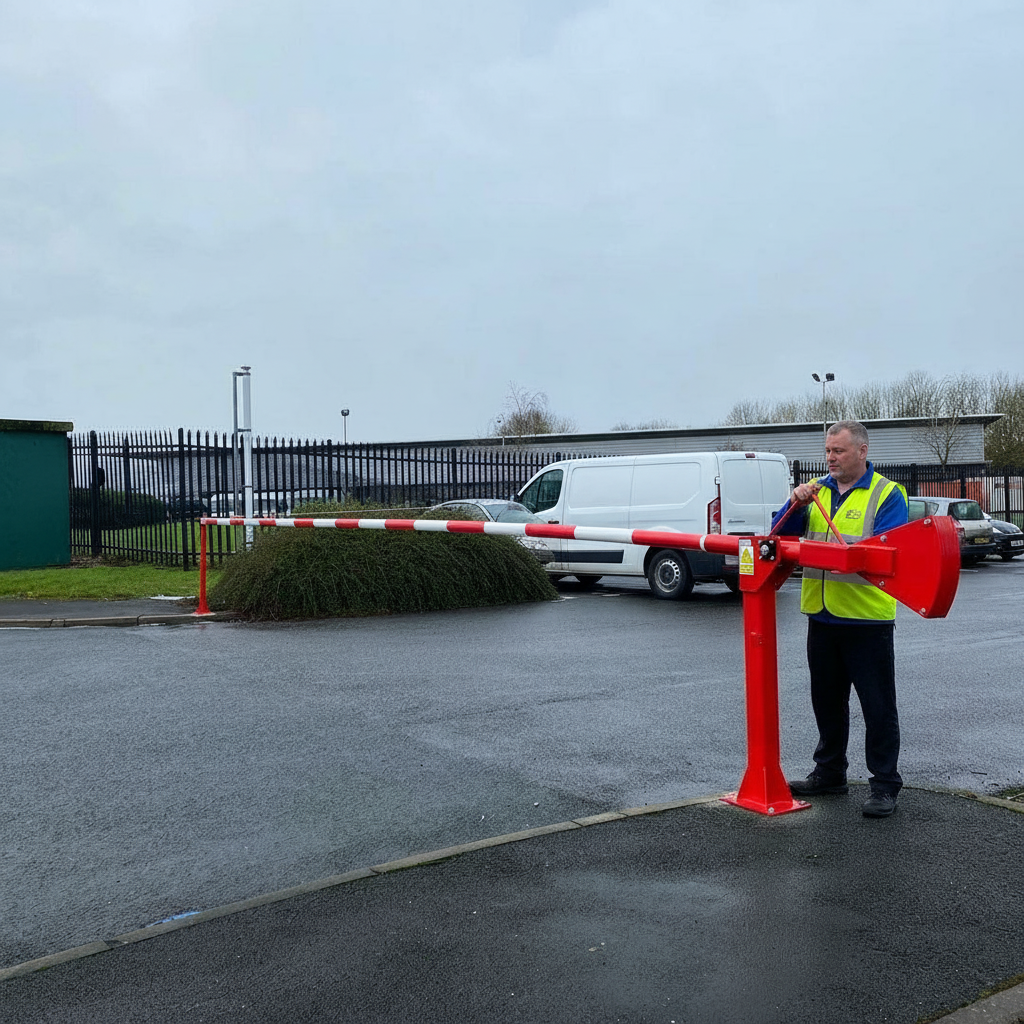

The Heavy Duty Manual Raise Arm Barrier provides a low maintenance, cost-effective way of manually controlling access to unauthorized areas on a permanent or temporary basis. Durable and hard-working, this barrier has been manufactured for over 32 years and features a robust and high-quality pivot post, lockable end rest, and an aluminum boom.

Designed with a carefully engineered pivot post, this barrier has the strength to cover up to 9 meters in road width while still being easily operated by one person. It is further enhanced with a stainless steel pivot bar and two heavy-duty, anti-rust bearings, ensuring complete traffic management.

Standard Manual Raise Arm Barriers

Manual Raise Arm Barriers are an efficient solution for controlling access to unauthorized or restricted areas. These barriers are available in spans of up to 9 meters, specifically designed for heavy-duty applications.
The pivot assembly is constructed from aluminum box section, and the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks.

The design incorporates a locking mechanism that allows the barrier to be fixed in either the raised or lowered position prior to applying the padlock. A counterbalanced fish tail weight is fine-tuned for ease of operation.

The Standard Manual Raise Arm Barrier comes complete with a lockable end rest, padlock, and keys.
The aluminum arm is finished in either alternate red and white or alternate yellow and black vinyl hatching as standard, with other colors available upon request.
Standard Colors: Red/White or Yellow/Black.

Please note: The barrier must be locked when left in the upright position.

Dimensions & Specifications

Technical Specifications

• Durable aluminum construction
• Lockable end rest included
• Compatible padlock and keys provided
• Stainless steel pivot bar for enhanced durability
• Heavy-duty anti-rust bearings for smooth operation

Frequently Asked Questions

• Q: How do I install the manual barrier?
  A: Installation instructions are included with each barrier to ensure proper setup.
• Q: Can the barrier be painted in custom colors?
  A: Yes, we offer custom color options upon request.
• Q: Is the barrier sudirectstock.co.ukle for both permanent and temporary use?
  A: Yes, it is designed for both applications.
