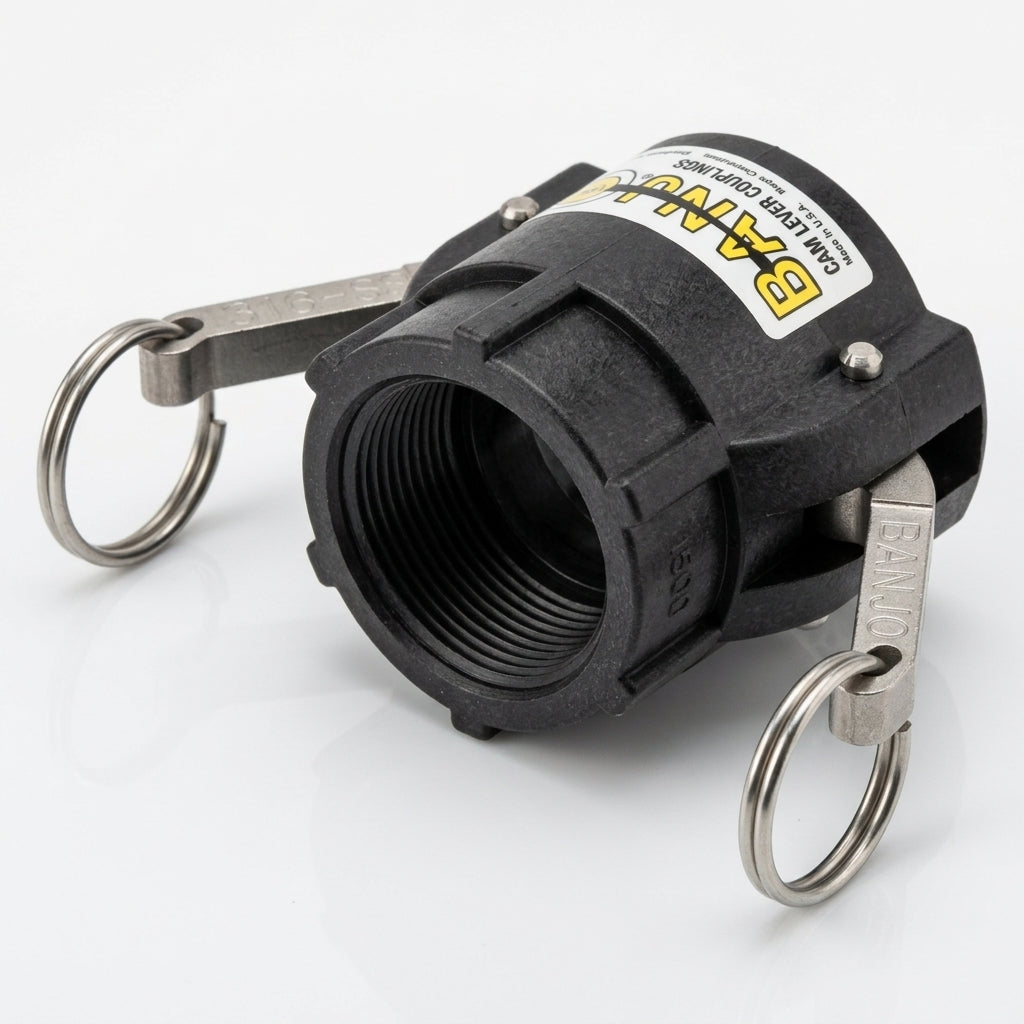

Cam Lever Coupler 1¼in Female x 1½in Polypropylene

Polypropylene cam lever coupler with 1¼in female thread and 1½in coupling connection, combining durability with corrosion resistance.

This compact coupling solution features a glass-reinforced polypropylene body paired with stainless steel operating arms, rings and pins for extended service life. The EPDM gasket provides reliable sealing across varying temperature conditions, making it suitable for agricultural, industrial and utility applications requiring quick-connect fluid transfer.

Key Features

• Glass-reinforced polypropylene construction for lightweight durability
• Stainless steel arms, rings and locking pins resist corrosion
• EPDM gasket seals effectively across temperature range
• 1¼in female NPT thread with 1½in coupling body
• Compact cam lever design for one-handed operation
• Compatible with standard 1½in adaptors and hose fittings

Specifications

• Thread size: 1¼in female NPT
• Coupling size: 1½in
• Body material: glass-reinforced polypropylene
• Hardware material: stainless steel
• Gasket: EPDM
• Maximum pressure at -17.8°C: 6.4 bar
• Maximum pressure at 21.2°C: 8.6 bar
• Maximum pressure at 47.8°C: 4.8 bar

Applications

• Agricultural irrigation and spray equipment
• Tank and drum fluid transfer systems
• Portable pump discharge connections
• Water distribution and delivery vehicles
• General-purpose coupling for hose assemblies
