Description

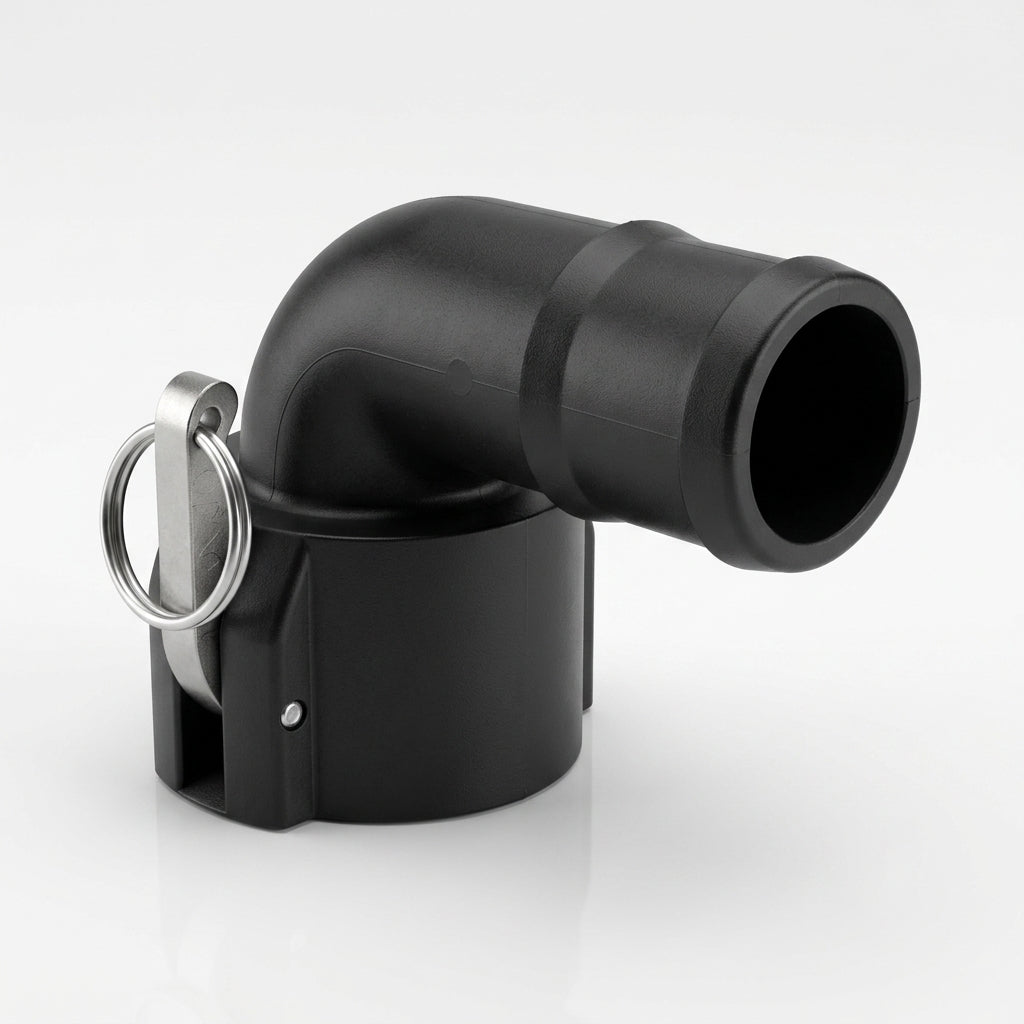

High-pressure quick-disconnect hose coupler with 90° angled cam lever design for secure, efficient fluid connections.
This angled cam lever coupler combines a glass-reinforced polypropylene body with stainless steel components for durability and corrosion resistance. The 2in hose barb inlet and 2in coupler outlet accommodate standard industrial hose and adapter fitments, whilst the EPDM gasket ensures a watertight seal across a wide temperature range.
Key Features
- 90° angled cam lever mechanism for space-constrained installations
- Glass-reinforced polypropylene body with stainless steel arms, rings and pins
- EPDM gasket for reliable sealing
- Temperature-rated operation from –17.8°C to 47.8°C
- Compatible with standard 2in hose adaptors
- Quick-connect/disconnect design
Specifications
- Hose barb inlet: 2in
- Coupler outlet: 2in
- Maximum pressure at –17.8°C: 6.4 bar
- Maximum pressure at 21.2°C: 8.6 bar
- Maximum pressure at 47.8°C: 4.8 bar
- Body material: glass-reinforced polypropylene
- Hardware: stainless steel
- Gasket material: EPDM
Applications
- Agricultural and irrigation water systems
- Industrial fluid transfer and tank connections
- Confined-space hose routing where angled entry is required
- Mobile equipment and trailer fluid systems
- Wastewater and environmental fluid handling
