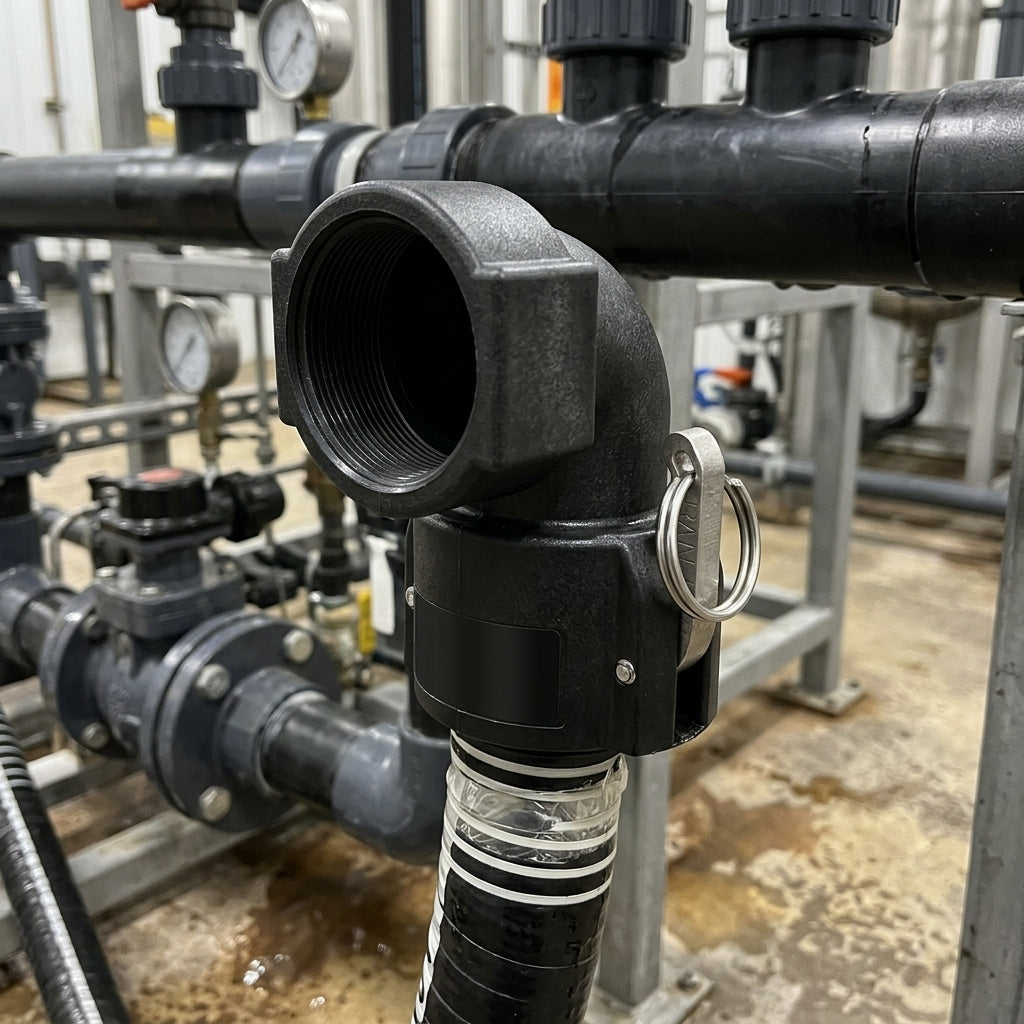

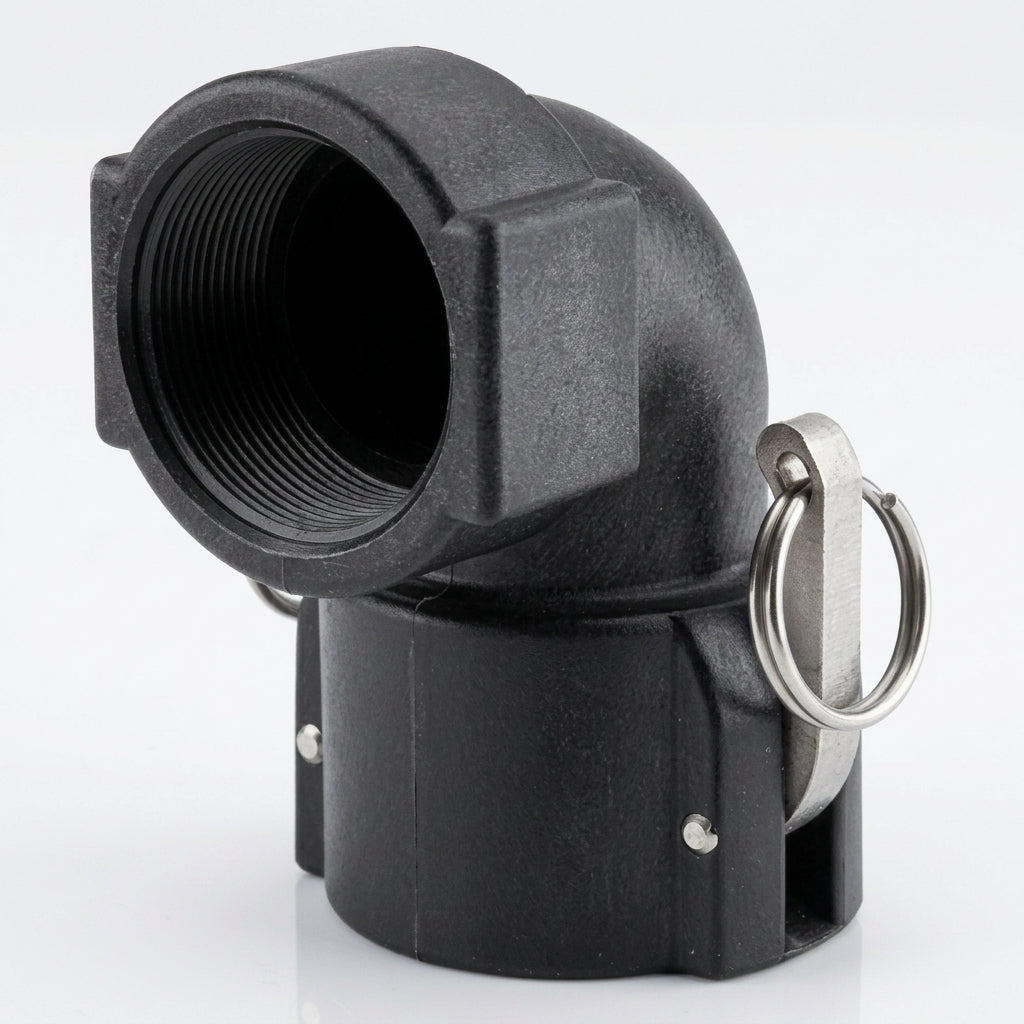

90° Cam Lever Coupler 1½in Female Thread x 1½in Socket

90° angled cam lever coupler with 1½in female thread and 1½in socket coupling for quick-disconnect fluid connections.

This heavy-duty coupler features a glass-reinforced polypropylene body paired with stainless steel arms, rings and pins for enhanced durability. The EPDM gasket provides reliable sealing across a wide temperature range, making it suitable for various industrial and agricultural applications requiring secure fluid transfer.

Key Features

• 90° offset design for restricted-space installations
• Glass-reinforced polypropylene construction
• Stainless steel mechanical components resist corrosion
• EPDM gasket for chemical and temperature resistance
• Rated 8.6 bar at 21.2°C standard operating conditions
• Pressure range 4.8–6.4 bar across -17.8°C to 47.8°C

Specifications

• Connection: 1½in female thread × 1½in coupler socket
• Body material: glass-reinforced polypropylene
• Metal components: stainless steel arms, rings, pins
• Seal: EPDM gasket
• Maximum pressure: 8.6 bar (21.2°C), 6.4 bar (-17.8°C), 4.8 bar (47.8°C)
• Compatible with standard 1½in adaptor fittings

Applications

• Agricultural fluid transfer and irrigation systems
• Industrial water circulation and cooling lines
• AdBlue and chemical dispensing equipment
• Confined-space coupling where angled connection needed
• Mobile tank and trailer refuelling connections
