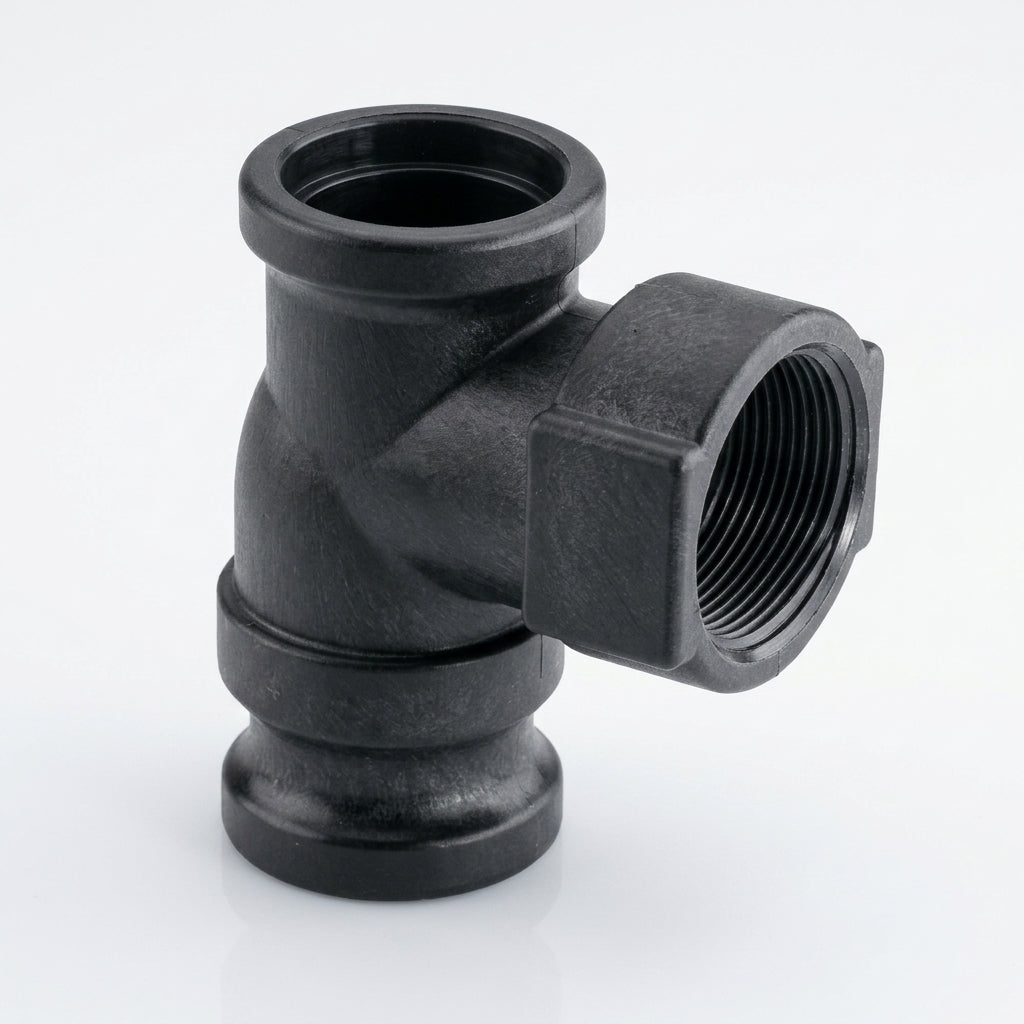

90° Cam Lever Adaptor - 1½in Female Thread x 1½in Polypropylene

Right-angle polypropylene cam lever adaptor with 1½in female thread and matching port for fluid system connections.

This 90° adaptor enables angled piping configurations in fluid handling and storage systems. Manufactured from glass-reinforced polypropylene, it provides reliable performance across a range of operating temperatures with rated pressure ratings that vary by ambient conditions.

Key Features

• 90° angle configuration for offset connections
• 1½in female thread inlet with 1½in adaptor outlet
• Glass-reinforced polypropylene construction
• Pressure rated: 8.6 bar at 21.2°C; 6.4 bar at -17.8°C; 4.8 bar at 47.8°C
• Cam lever connection system
• Compatible with standard 1½in adaptor fittings

Specifications

• Thread size: 1½in female
• Adaptor size: 1½in
• Angle: 90°
• Material: Glass-reinforced polypropylene
• Maximum operating pressure: 8.6 bar (at 21.2°C ambient)

Applications

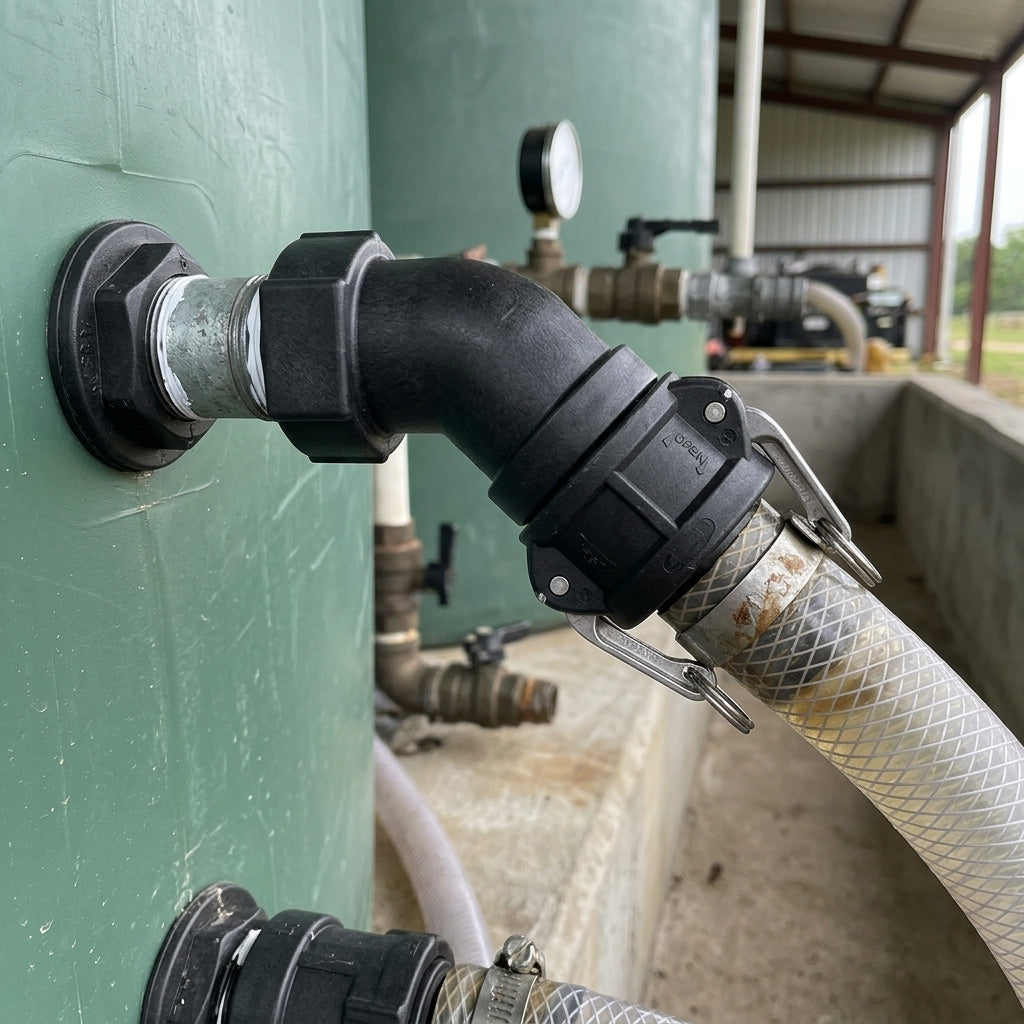

• Tank outlet and inlet configurations
• Fluid transfer and distribution lines
• Space-constrained piping layouts
• Agricultural and industrial storage systems
• Pump discharge and return lines
