Description

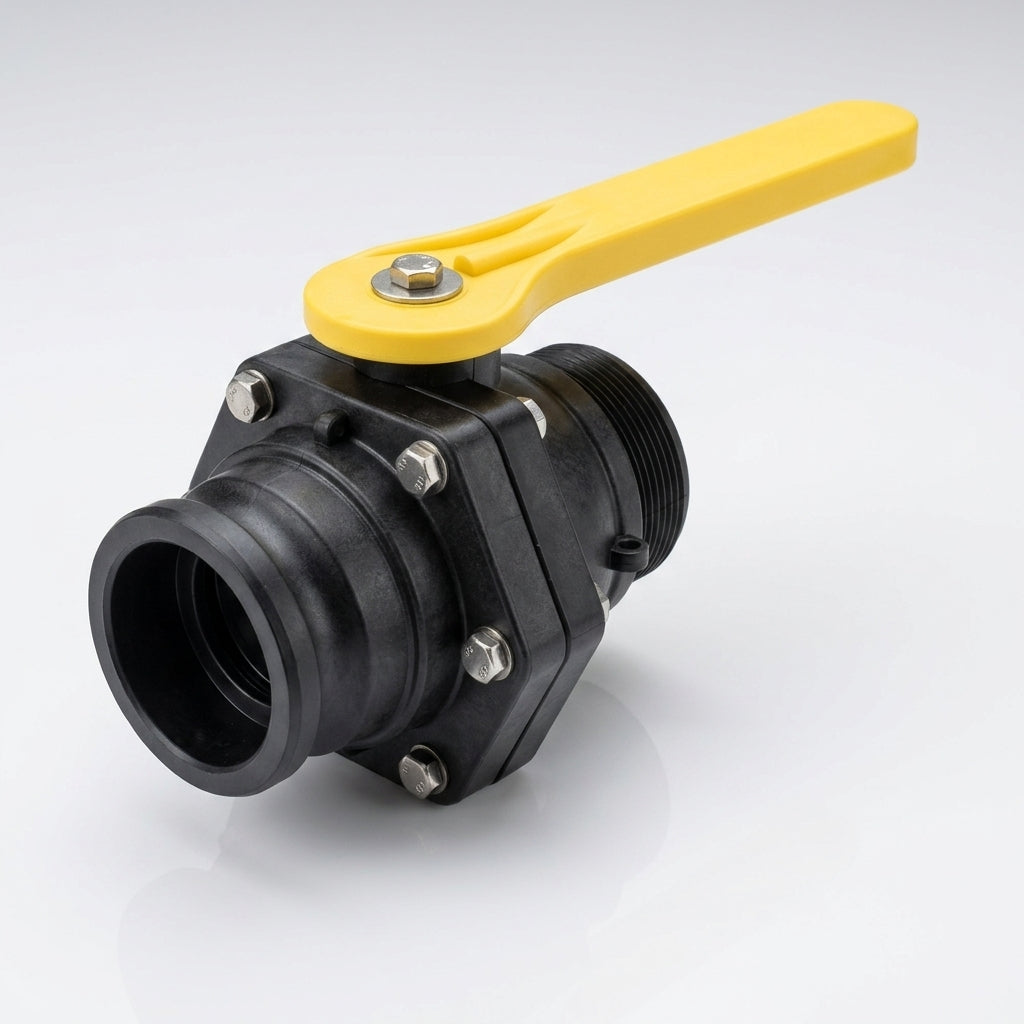

Polypropylene reinforced fibreglass ball valve adaptor connecting 3in camcup fittings to 3in NPT male threads.
This compact stubby valve combines a precision-moulded polypropylene body with FKM viton-type seals and a diamond-turned stainless steel ball for dependable performance in transfer and storage systems. The self-aligning ball mechanism requires minimal operating pressure whilst maintaining a tight seal against PTFE-lined seats, and stainless steel bolts ensure long-term corrosion resistance.
Key Features
- 3in camcup adaptor connection with 3in NPT male thread outlet
- 2.5in ball internal diameter for smooth flow control
- Diamond-turned stainless steel ball for spherical precision and seal integrity
- FKM viton-type seals with PTFE seal contact surfaces
- Fibreglass-reinforced polypropylene body for lightweight durability
- Stainless steel bolts throughout; minimal operating pressure required
Specifications
- Maximum pressure: 7 bar at 21°C; 5 bar at 65°C
- Camcup adaptor inlet, 3in NPT male thread outlet
- Ball i.d.: 2.5in
- Seal material: FKM (viton type)
- Body material: Polypropylene reinforced with fibreglass
Applications
- Liquid transfer and dispensing systems
- Water and fluid storage interconnections
- Agricultural and industrial tank connections
- Chemical and waste fluid handling lines
- On-farm and mobile tank installations
