Description

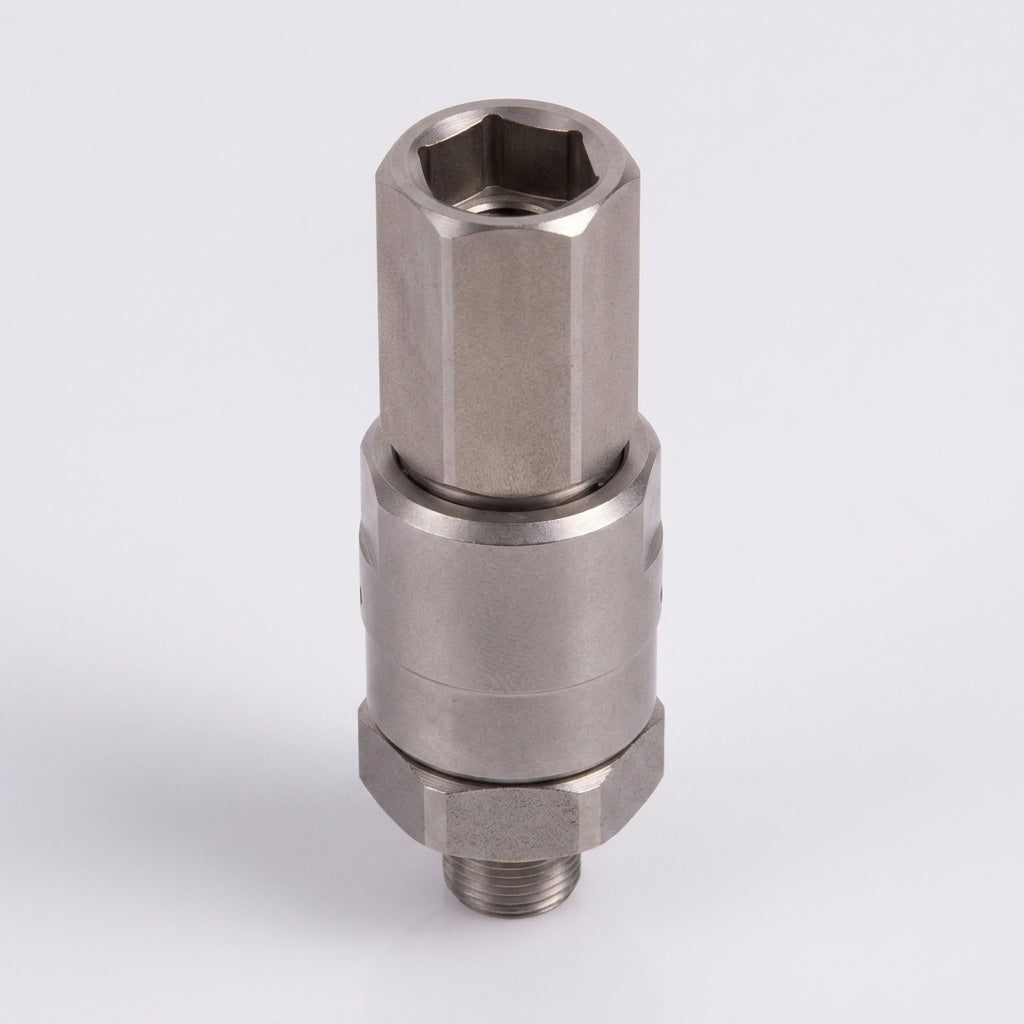

High-pressure stainless steel swivel coupling with 600 bar rating and 3/8in BSP female-to-male connections.
This swivel joint enables smooth rotation under pressure in demanding fluid transfer applications. Constructed from stainless steel with NBR seals, it combines corrosion resistance with reliable performance across industrial and mobile equipment systems.
Key Features
- 600 bar working pressure rating
- 60 litres per minute maximum flow capacity
- Stainless steel body and internal pin construction
- 3/8in BSP female inlet × 3/8in BSP male outlet
- NBR (buna-nitrile) seals for durability
- 30 rpm maximum rotation speed
- 100°C temperature rating
Specifications
- Connection type: 3/8in BSP female × 3/8in BSP male
- Rated pressure: 600 bar
- Maximum flow: 60 lpm
- Body material: Stainless steel
- Seal material: NBR (buna-nitrile)
- Maximum operating temperature: 100°C
- Maximum rotational speed: 30 rpm
Applications
- High-pressure hydraulic systems requiring articulation
- Fluid transfer on mobile and rotating machinery
- Agricultural and construction equipment

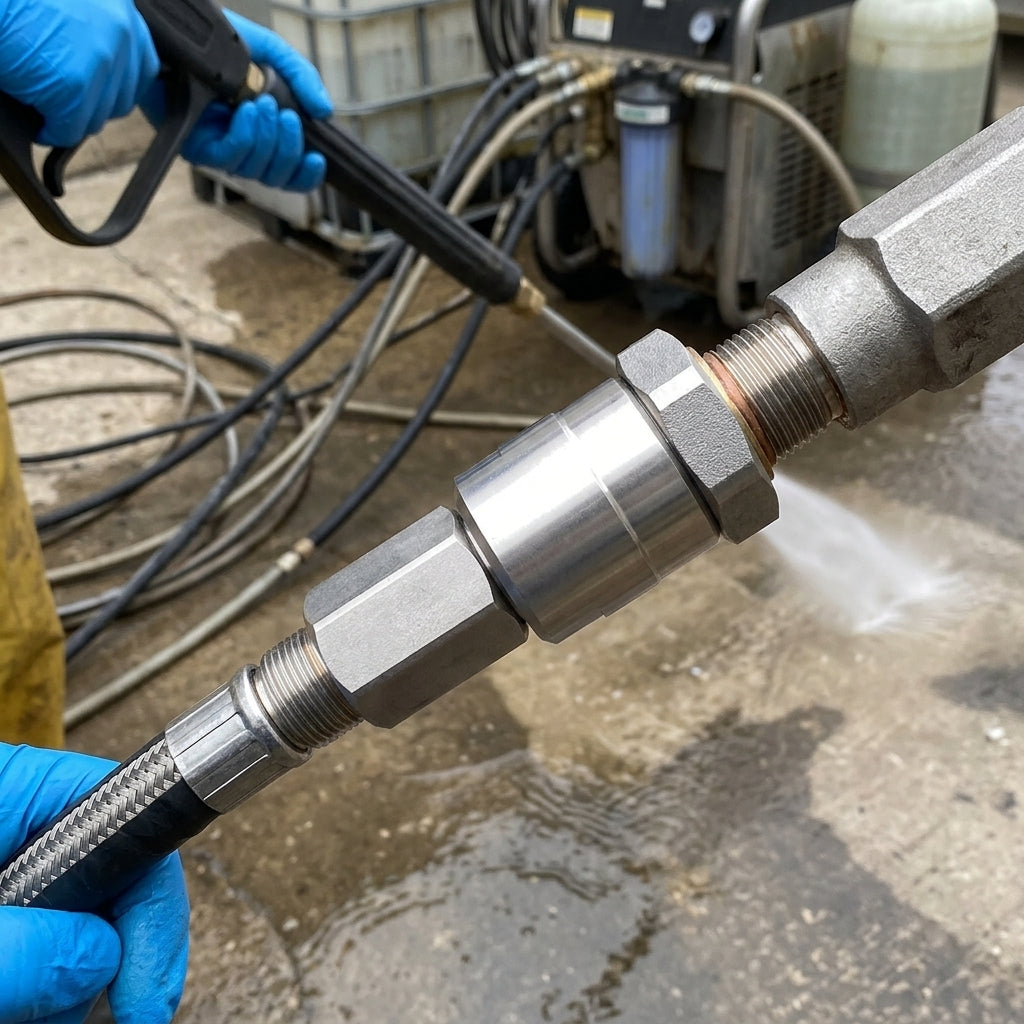

- Industrial cleaning and power washing equipment
- Chemical and food processing where corrosion resistance is essential
