Description

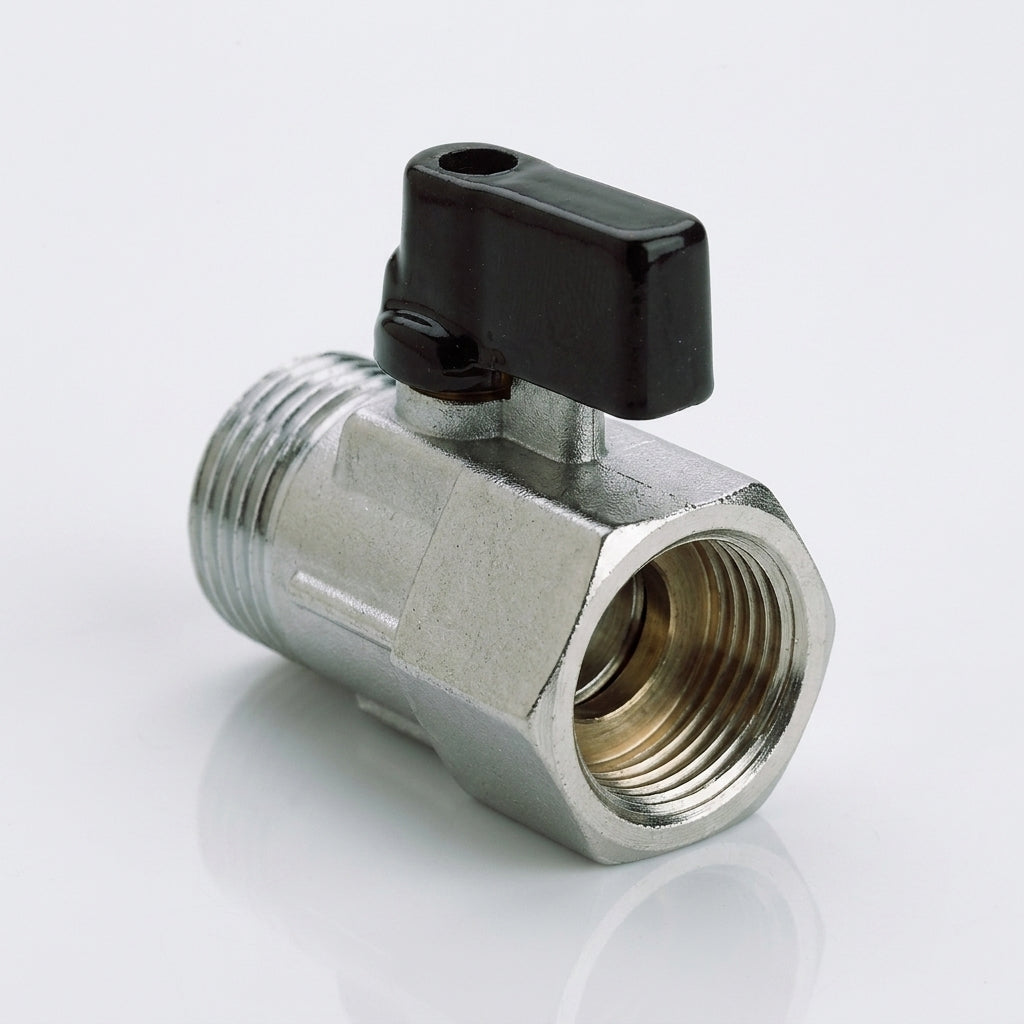

Compact plated brass ball valve with 3/8in BSP male and female thread connections.
This miniature ball valve combines durability with reliable flow control in a compact 41mm body length. The nickel and chromium plated brass construction resists corrosion, whilst PTFE ball seats and nitrile seals ensure long service life across a range of industrial applications.
Key Features
- 3/8in BSP male inlet x 3/8in BSP female outlet threads
- 10 bar maximum working pressure
- 80°C maximum operating temperature
- Nickel/chromium plated brass body
- PTFE ball seats for reliable sealing
- Nitrile elastomer seals
- Compact 41mm length
Specifications
- Connection: 3/8in BSP (male × female)
- Pressure Rating: 10 bar
- Temperature Range: 0–80°C
- Body Material: Plated brass
- Seat Material: PTFE
- Seal Material: Nitrile
- Length: 41 mm

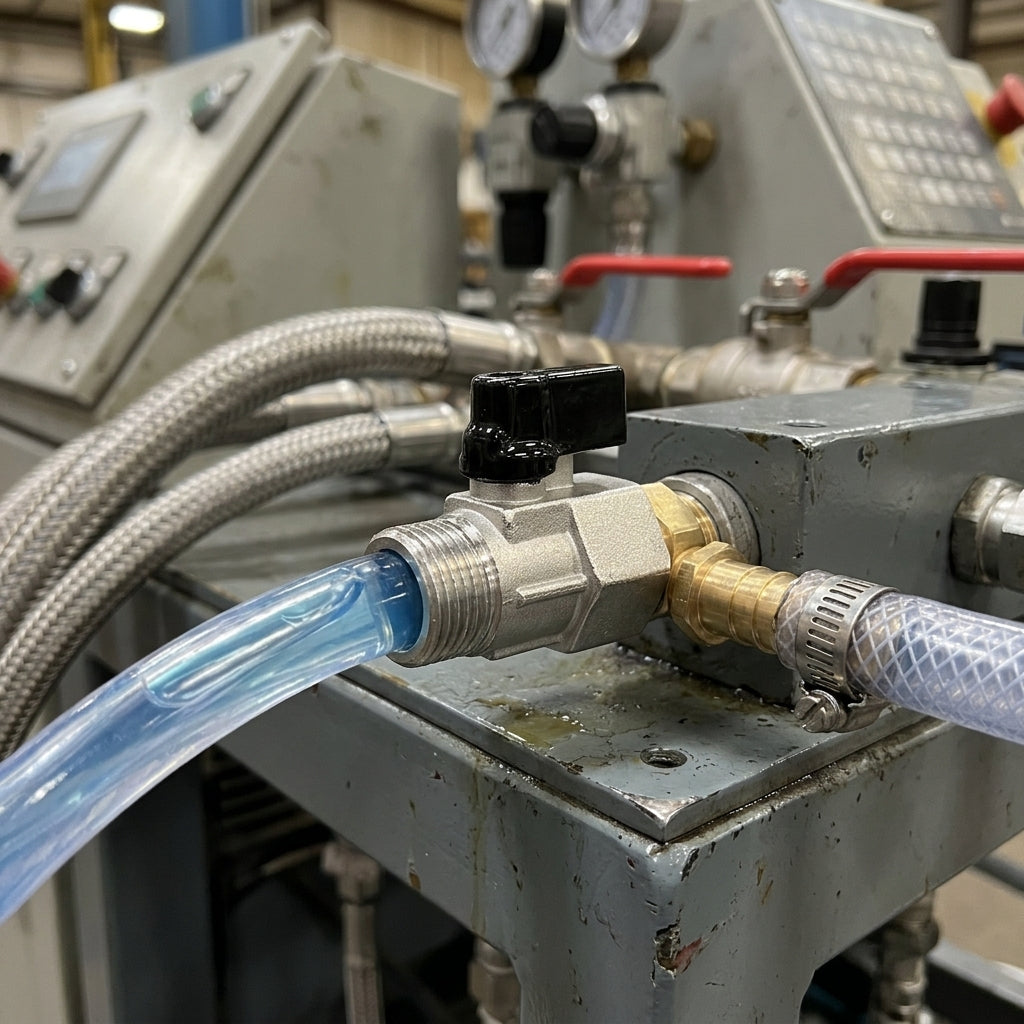

Applications
- Compressed air circuit control and isolation
- Hydraulic system flow regulation
- Water and coolant distribution
- Industrial pilot line control
- Equipment quick-disconnect systems
