Description

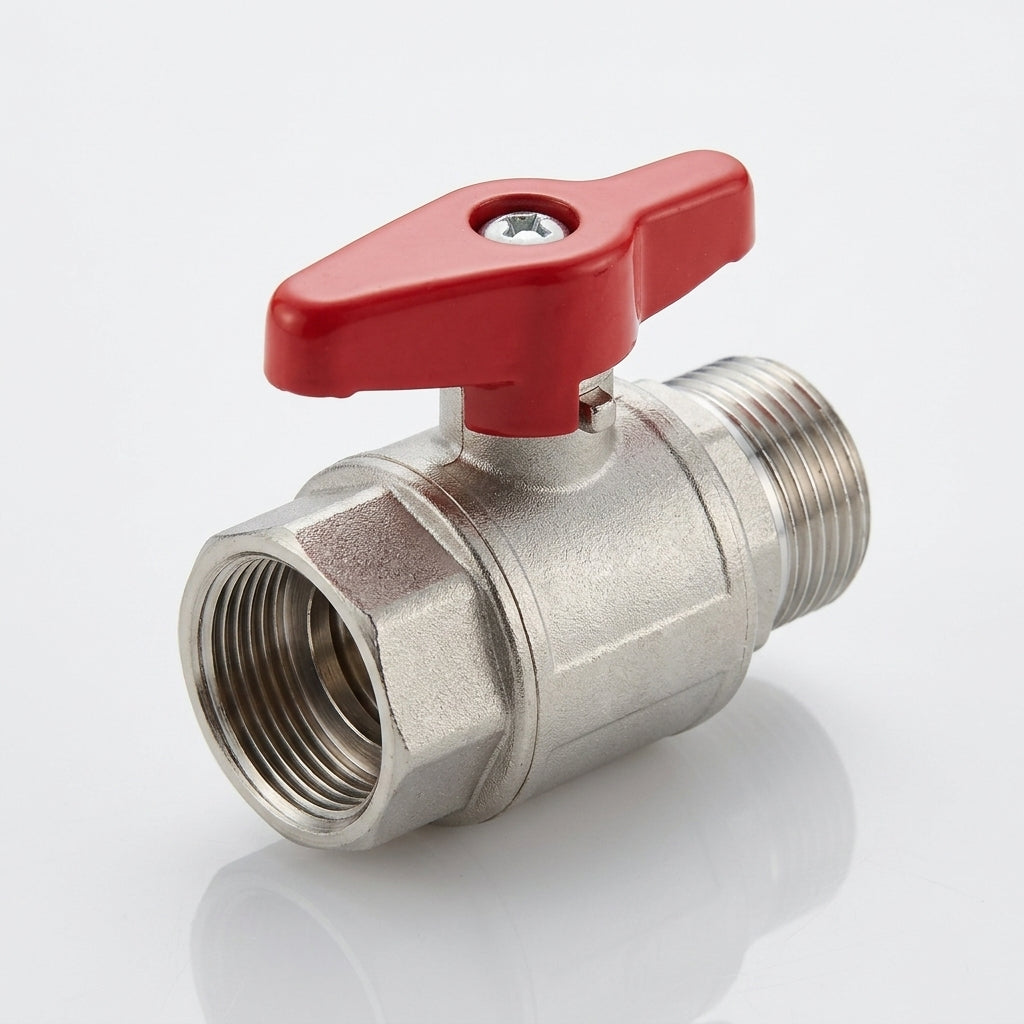

Nickel-plated brass ball valve with 3/8in BSP male-to-female connection and T-handle operator.
A compact, mid-pressure ball valve constructed from plated brass with PTFE ball seats for dependable performance in general industrial and utility applications. The T-handle provides intuitive on/off control, whilst the combination of male and female threaded ports offers flexible installation in existing systems.
Key Features
- 3/8in BSP male inlet × 3/8in BSP female outlet threads
- 32 bar maximum working pressure
- 80°C maximum fluid temperature
- Nickel/chromium plated brass body
- PTFE ball seats for reliable sealing
- T-handle lever operator
Specifications
- Overall length: 41 mm
- Port size: 3/8in BSP
- Rated pressure: 32 bar
- Rated temperature: 80°C
- Body material: plated brass
- Seat material: PTFE
Applications
- Pneumatic line isolation and control
- Water and coolant flow regulation
- General industrial shut-off applications
- Equipment panel-mounted valve stations
- Utility and maintenance connections
