Description

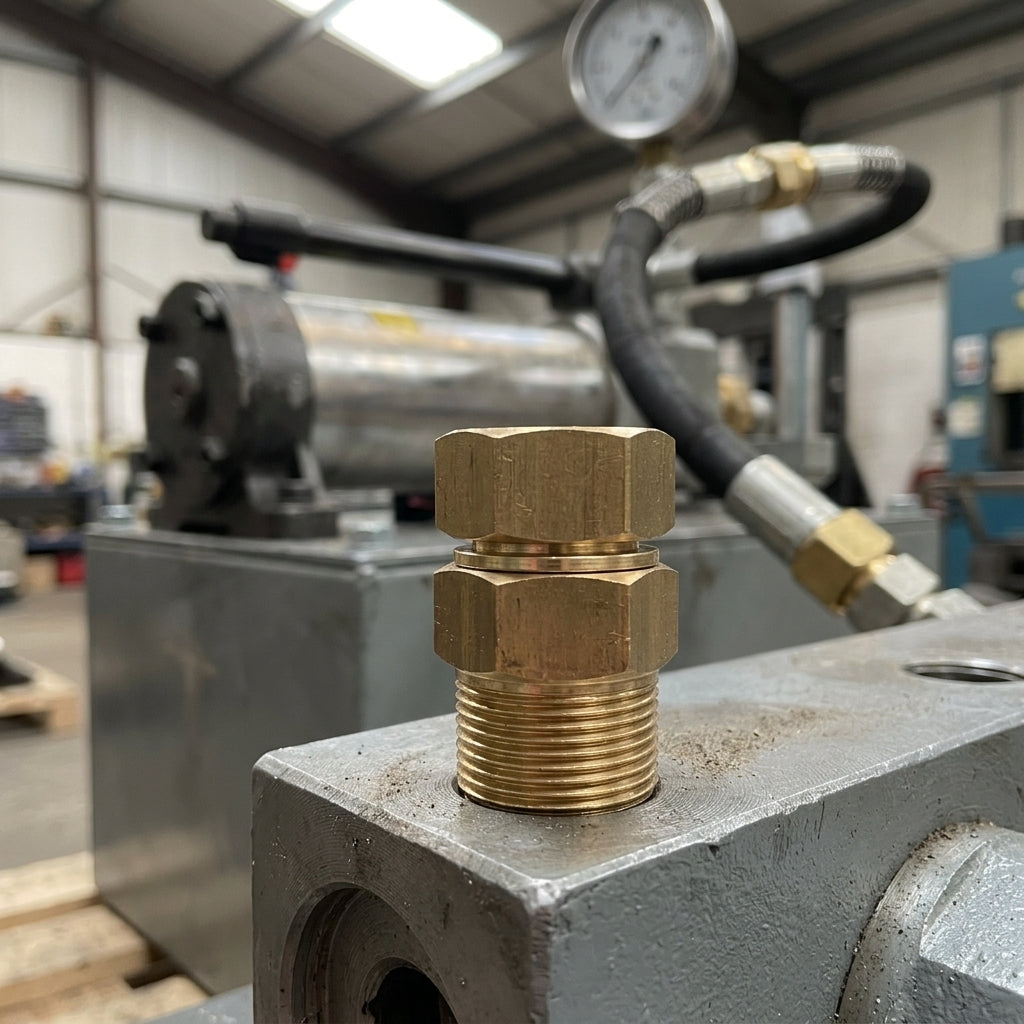

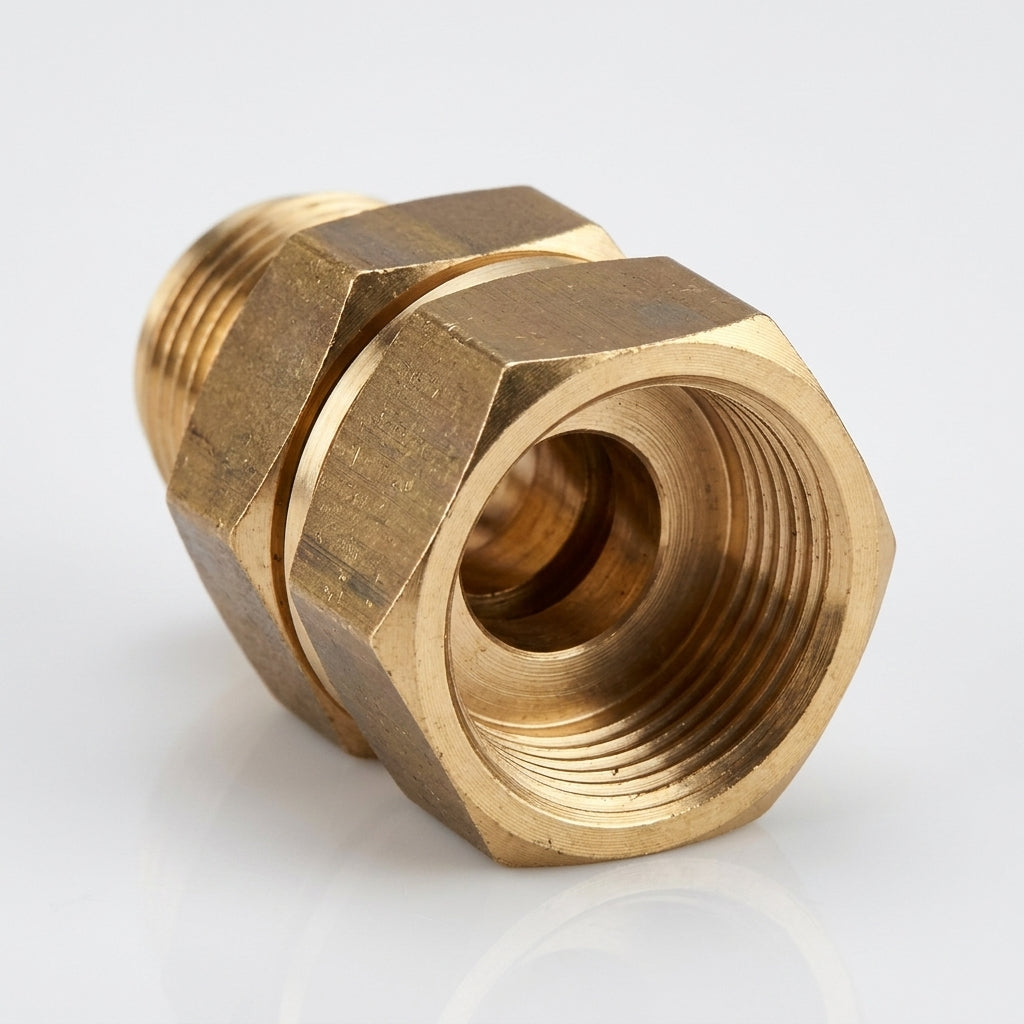

Brass swivel fitting with 3/8in BSP male inlet and 1/4in BSP female outlet, rated to 220 bar operating pressure.
This compact reducer swivel combines directional flow control with rotational flexibility, minimising stress on hose connections and fittings. NBR seals provide reliable containment across mobile and fixed installations where vibration and misalignment are common.
Key Features
- 220 bar rated working pressure
- 30 lpm maximum flow rate
- 360° swivel connection reduces hose fatigue
- Brass body with NBR seals
- 60°C continuous operating temperature
- 90°C peak temperature rating
Specifications
- Inlet: 3/8in BSP male
- Outlet: 1/4in BSP female
- Pressure rating: 220 bar
- Flow capacity: 30 lpm
- Body material: Brass
- Seal material: NBR (Buna)
- Temperature range: –5°C to 90°C
Applications
- Hydraulic power units and pump discharge circuits
- Mobile machinery manifold connections
- Fixed industrial pressure systems
- Tank-mounted hydraulic assemblies
- Flow regulation and pressure relief piping
