Description

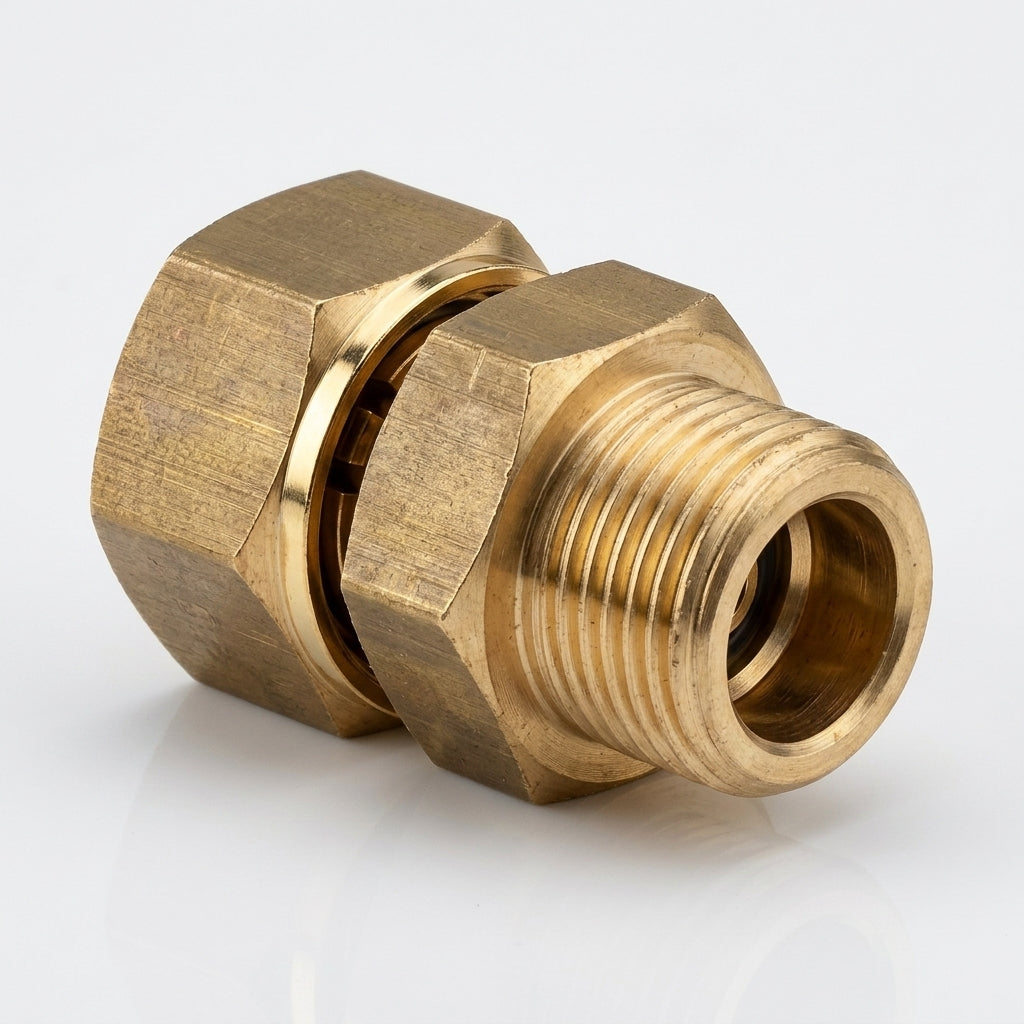

Brass swivel connector with 3/8in BSP male and female ports, engineered for high-pressure fluid systems.
This rotating connector eliminates hose twist and tangles during operation. Designed with a robust brass body and NBR seals, it withstands demanding industrial hydraulic applications. The 220 bar pressure rating and 30 Lpm flow capacity make it suitable for both stationary and mobile equipment requiring flexible, rotating fluid pathways.
Key Features
- 220 bar working pressure rating
- 30 Lpm maximum flow rate
- Full brass construction for durability and corrosion resistance
- NBR (Buna) seals for reliable fluid containment
- Compact 3/8in BSP thread design
- 360° rotation capability
Specifications
- Inlet: 3/8in BSP male thread
- Outlet: 3/8in BSP female thread
- Pressure rating: 220 bar maximum
- Flow capacity: 30 Lpm
- Maximum working temperature: 60°C
- Rated temperature: 90°C
- Body material: Brass
- Seal material: NBR (Buna)
Applications

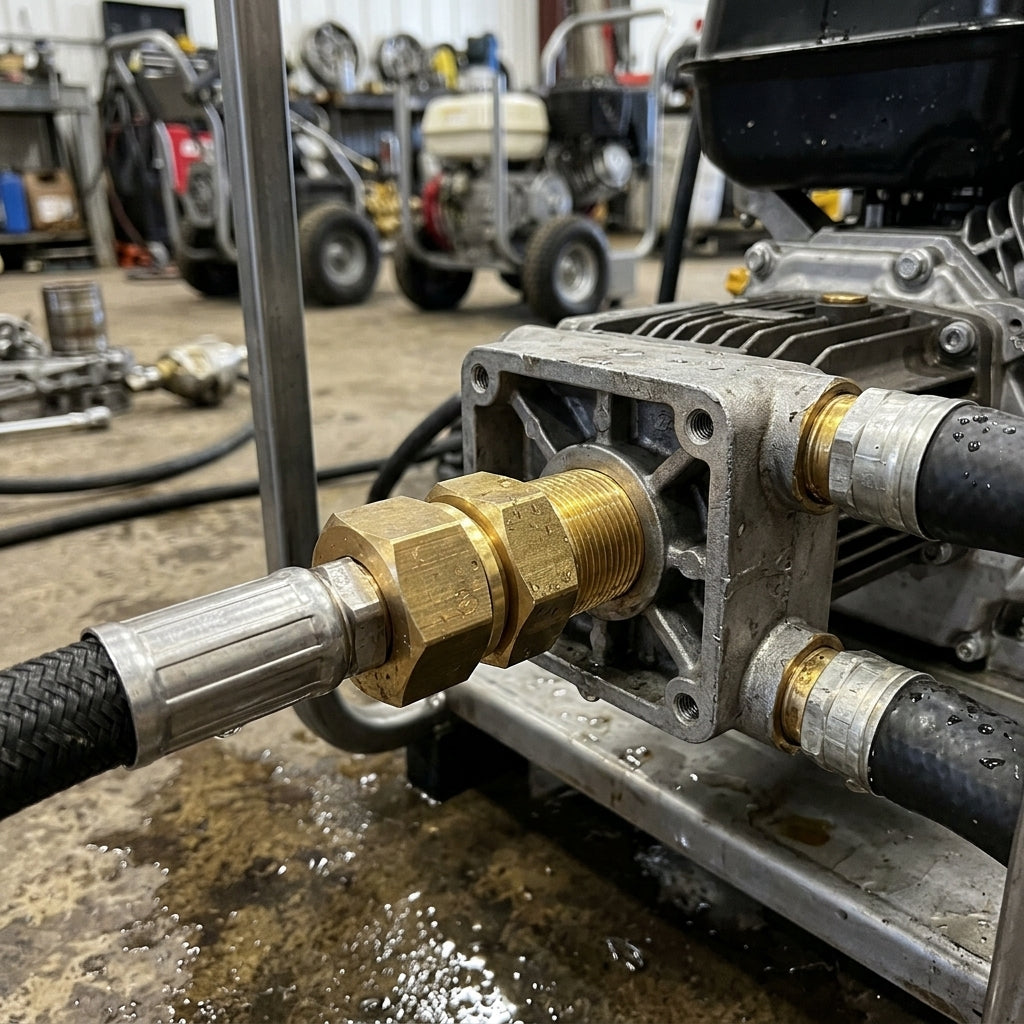

- Hydraulic power systems and mobile machinery
- Pressure washing and cleaning equipment
- Agricultural and construction equipment
- Fluid transfer lines requiring rotation freedom
- Industrial pump and motor connections
