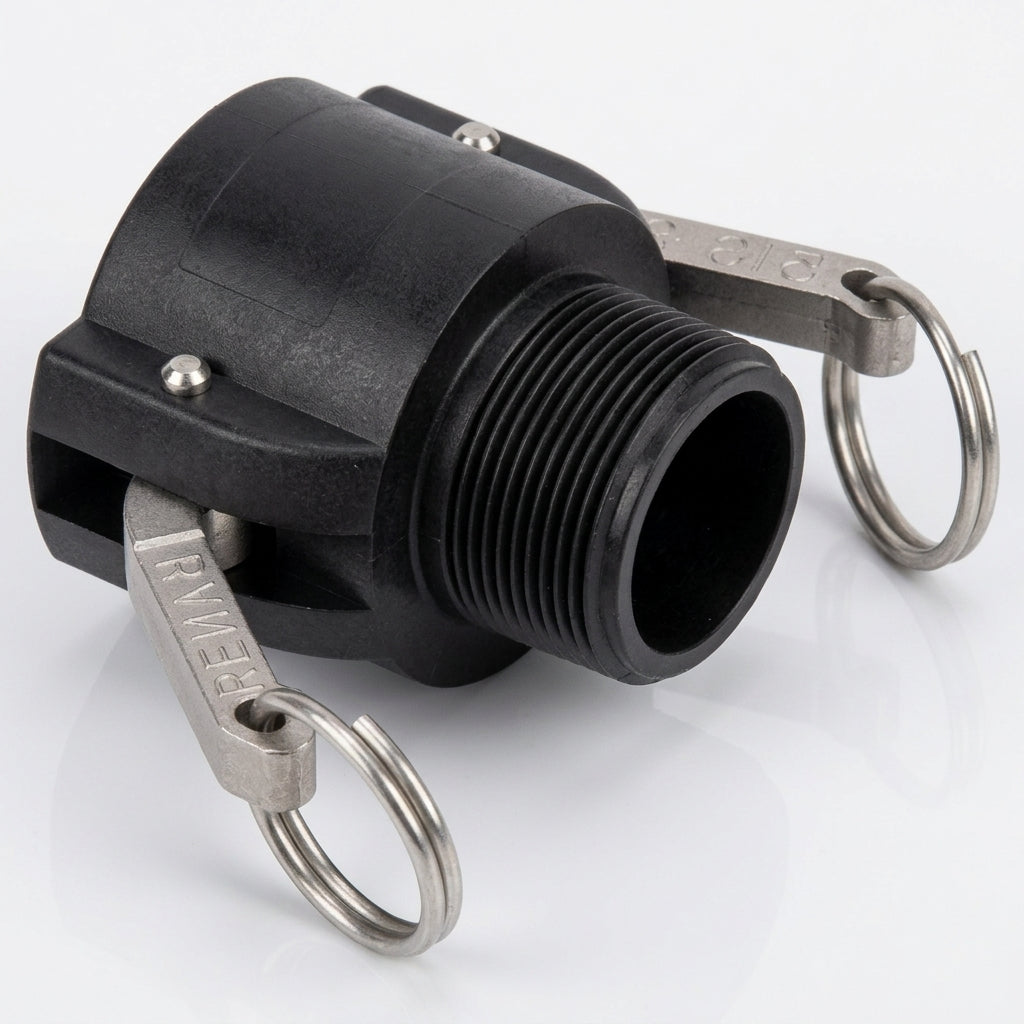

3/4in Male Thread Cam Lever Coupler with Stainless Steel Arms

Quick-connect cam lever coupler in glass-reinforced polypropylene with stainless steel components for secure fluid coupling.

This 3/4in male thread to 3/4in coupling combines a durable polypropylene body with corrosion-resistant stainless steel arms, rings and pins. The EPDM gasket ensures a reliable seal across a range of operating temperatures and pressures. Self-aligning groove design simplifies connection and works with standard 3/4in adaptors.

Key Features

• Glass-reinforced polypropylene body for chemical and impact resistance
• Stainless steel arms, rings and pins prevent corrosion
• EPDM gasket for reliable sealing
• Self-aligning groove for easy connection
• Compatible with 3/4in standard adaptors
• Temperature-rated performance across industrial range

Specifications

• Connection: 3/4in male thread to 3/4in coupling
• Body material: Glass-reinforced polypropylene
• Sealing: EPDM gasket
• Pressure rating: 8.6 bar at 21°C ambient
• Low-temperature rating: 6.4 bar at -17.8°C
• High-temperature rating: 4.8 bar at 47.8°C

Applications

• Agricultural and horticultural fluid distribution systems
• Industrial transfer and circulation lines
• Washdown and pressure-cleaning equipment
• Chemical handling and dosing systems
• Marine and outdoor fluid connections
