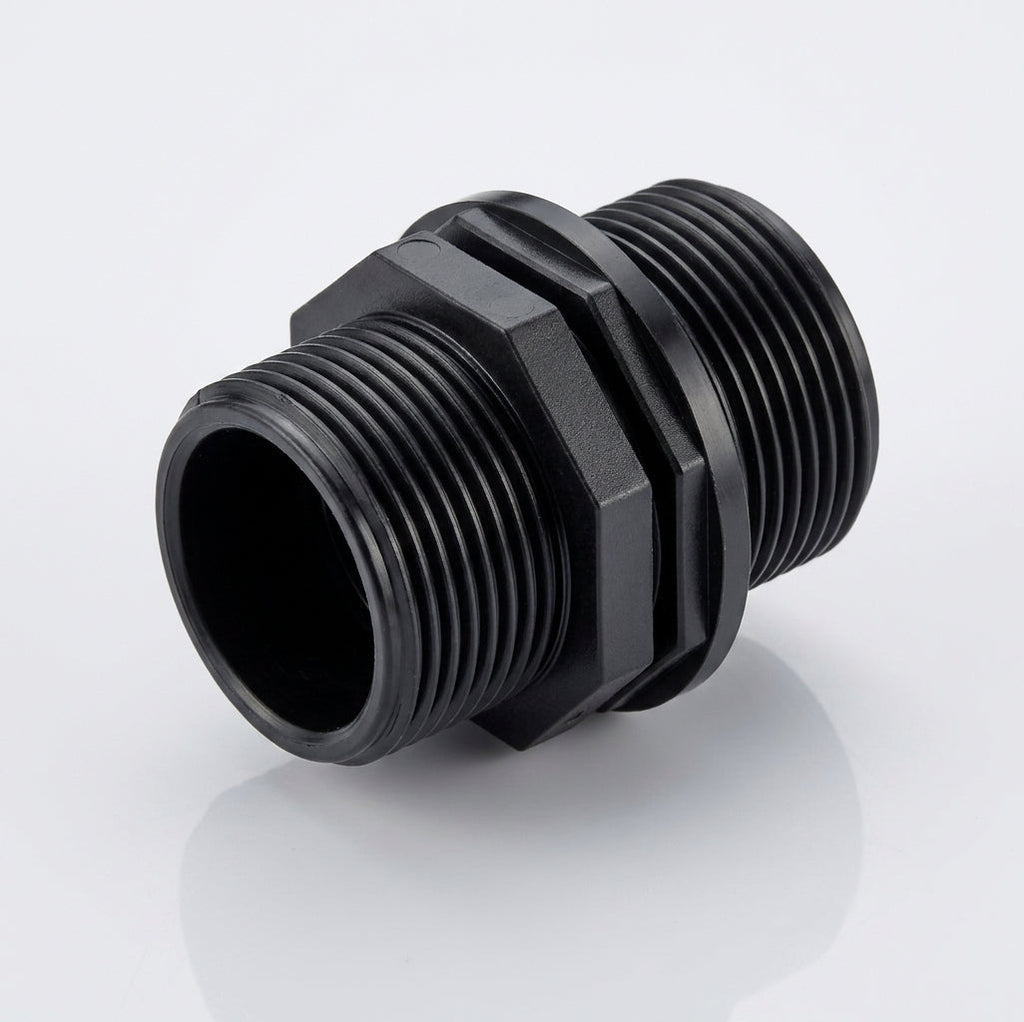

3/4in BSP Symmetrical Nipple, 22mm Thread Length, Polypropylene

Polypropylene symmetrical nipple with 3/4in BSP male threads for joining two female-threaded components.

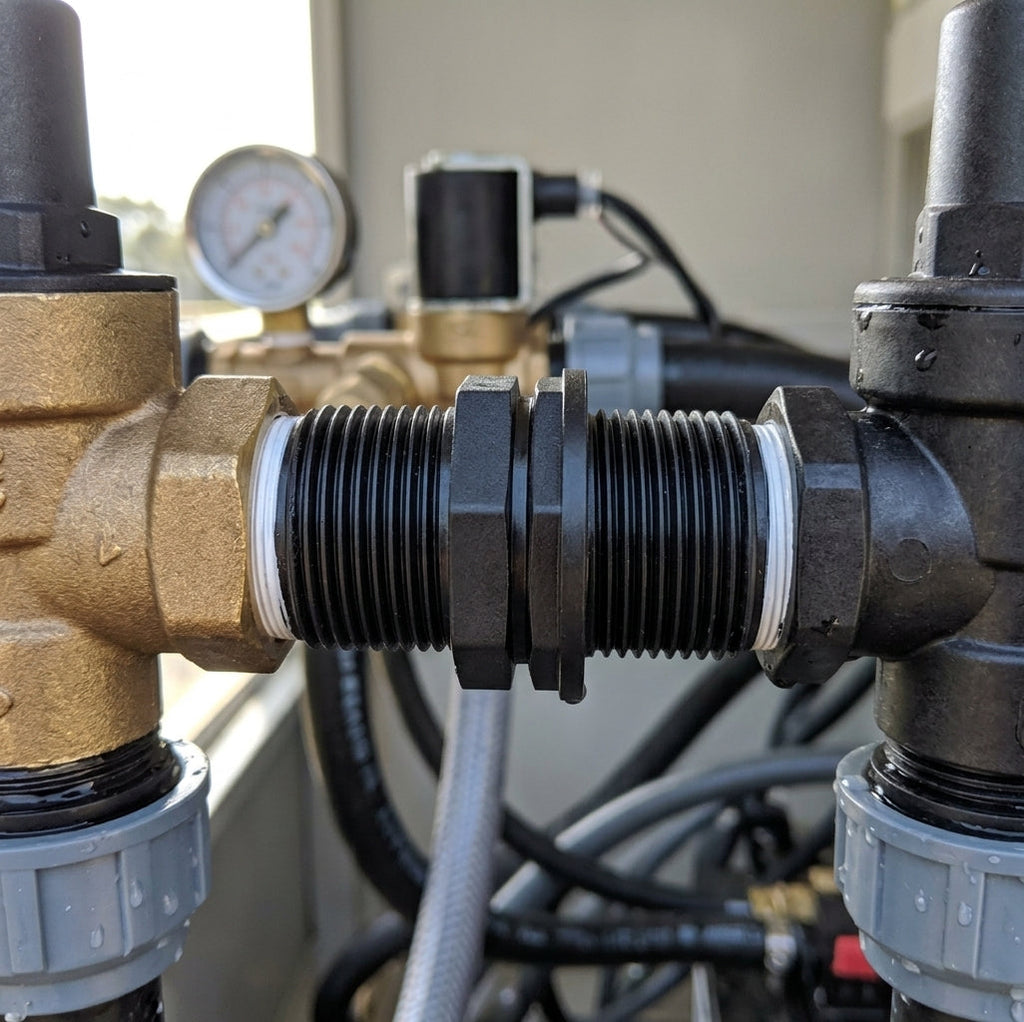

This compact connector features equal 22mm thread lengths on both ends, making it ideal for joining two female-threaded ports in low-pressure fluid systems. Constructed from durable polypropylene, it offers chemical resistance and lightweight performance for a wide range of industrial applications.

Key Features

• 3/4in BSP male threads both ends
• Symmetrical design with 22mm thread length per end
• Polypropylene construction for chemical resistance
• Maximum working pressure: 10 bar
• Temperature range: up to 40°C
• Lightweight and corrosion-resistant

Specifications

• Thread size: 3/4in BSP male
• Thread length: 22mm each end
• Material: Polypropylene (PP)
• Maximum pressure: 10 bar
• Maximum temperature: 40°C

Applications

• Water supply and drainage systems
• Agricultural irrigation connections
• Low-pressure fluid transfer lines
• Tank and container port joining
• General utility piping in non-corrosive environments
