Description

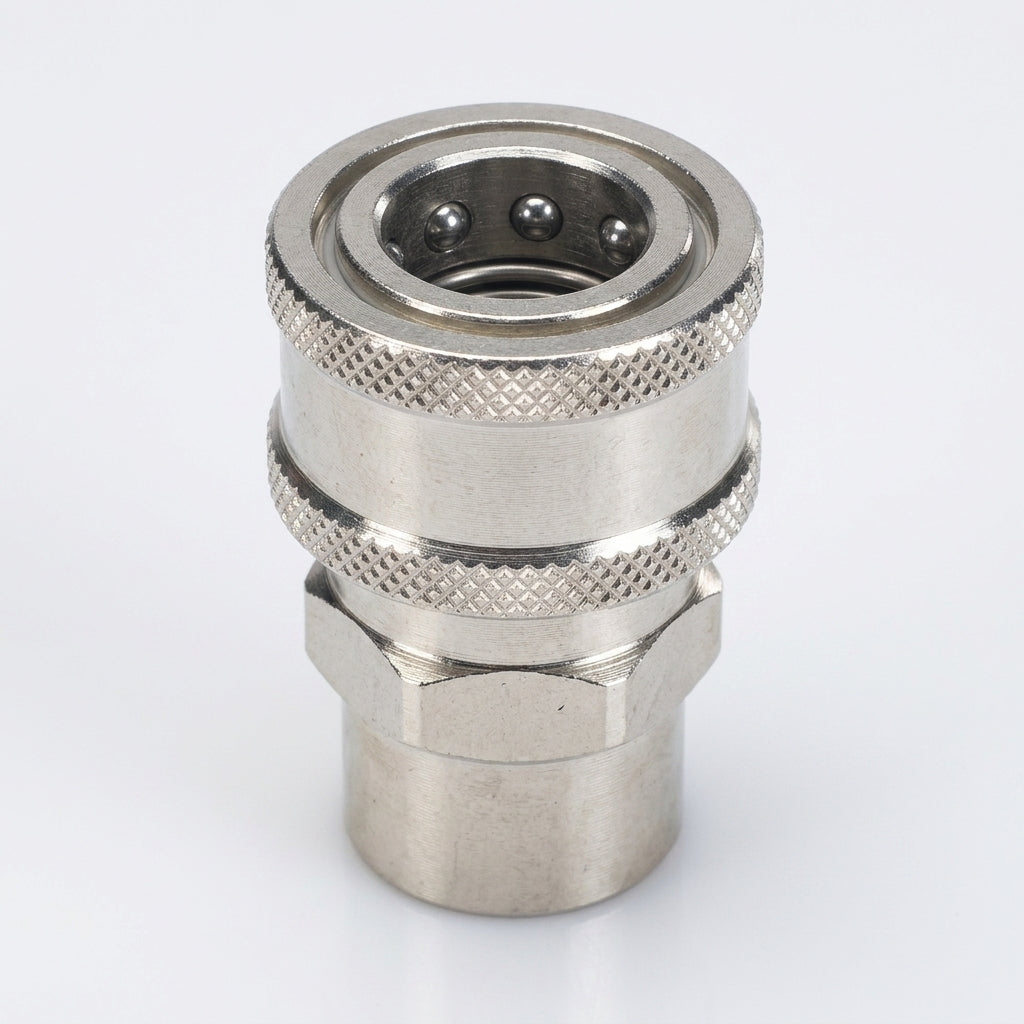

High-pressure quick-release coupling with 3/8in BSP female thread connection, rated to 250 bar.
This robust coupling combines a quick-release mechanism with a standard BSP female thread for secure, leak-free connections in hydraulic and fluid transfer applications. Constructed from nickel-plated brass with NBR seals, it delivers reliable performance across pressurised systems.
Key Features
- 250 bar working pressure rating
- 30 Lpm maximum flow capacity
- 3/8in BSP female thread connection
- Nickel-plated brass body for corrosion resistance
- NBR O-rings for reliable sealing
- Compatible with ARS250 adaptor series
Specifications
- Pressure rating: 250 bar
- Flow rate: 30 Lpm maximum
- Thread: 3/8in BSP female
- Body material: Nickel-plated brass
- Seal material: NBR
- Operating temperature: up to 90 °C
Applications
- Hydraulic system connections
- Fluid transfer and circulation lines
- Pressurised water and coolant systems
- Industrial pump and motor linkages
- Mobile and fixed equipment coupling
