Description

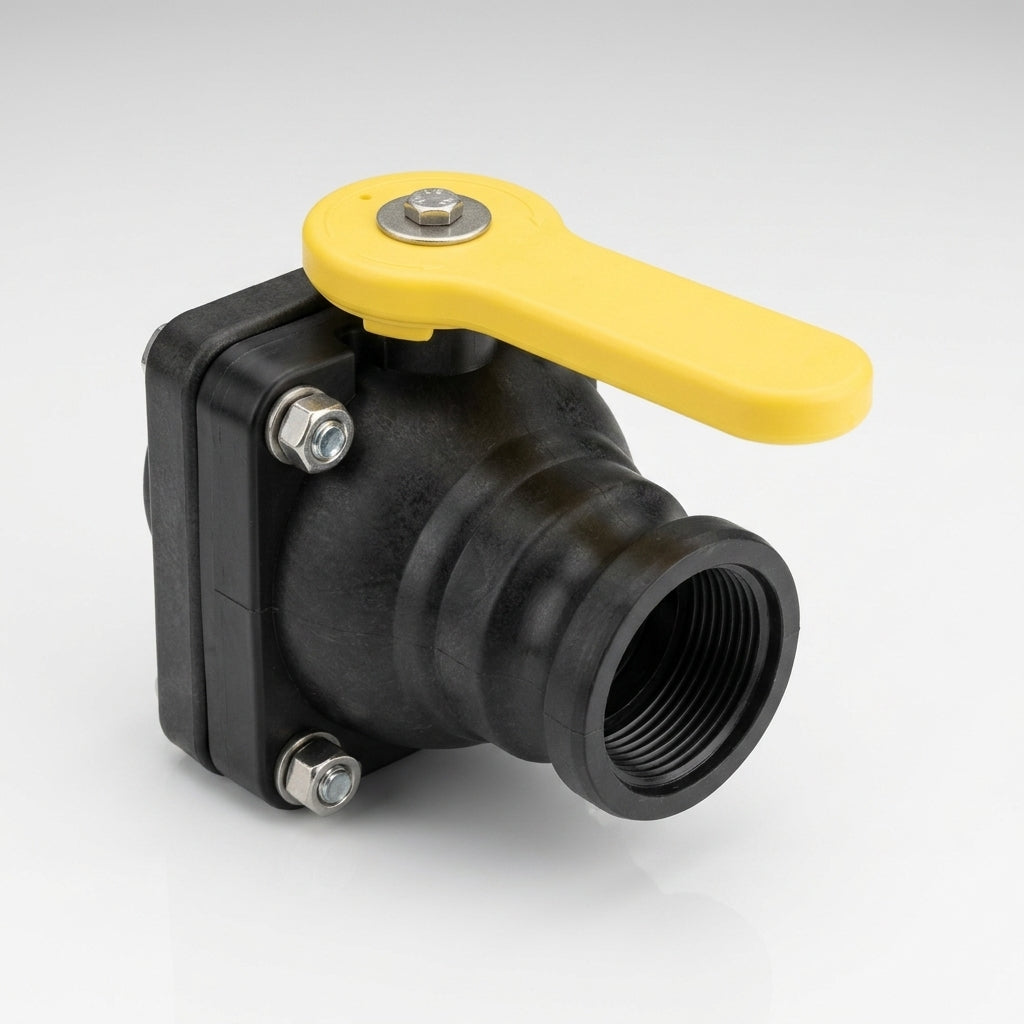

Compact ball valve adaptor with 2in female thread and camcup connection for quick-coupling applications.
This stubby valve adaptor combines a 2in camcup connection with 2in female thread, featuring a self-aligning ball mechanism for reliable operation. The precision-engineered construction ensures smooth actuation with minimal handle pressure, making it ideal for frequent connection and disconnection cycles in fluid transfer systems.
Key Features
- 2in camcup adaptor with 2in female thread connection
- 1½in ball internal diameter for controlled flow
- Self-aligning ball mechanism against PTFE seals
- Diamond-turned spherical ball for precise sealing contact
- Fibreglass-reinforced polypropylene body
- FKM (viton-type) elastomer seals for chemical resistance
- Stainless steel bolts for corrosion resistance
Specifications
- Maximum pressure: 7 bar at 21°C
- Maximum pressure: 5 bar at 65°C
- Material: Polypropylene with fibreglass reinforcement
- Seal material: FKM (viton-type)
- Connection types: 2in camcup and 2in female thread
Applications
- Quick-disconnect fluid transfer systems
- Portable tank and container connections
- Chemical handling and storage systems
- Water transfer and irrigation equipment
- Industrial liquid dispensing operations
