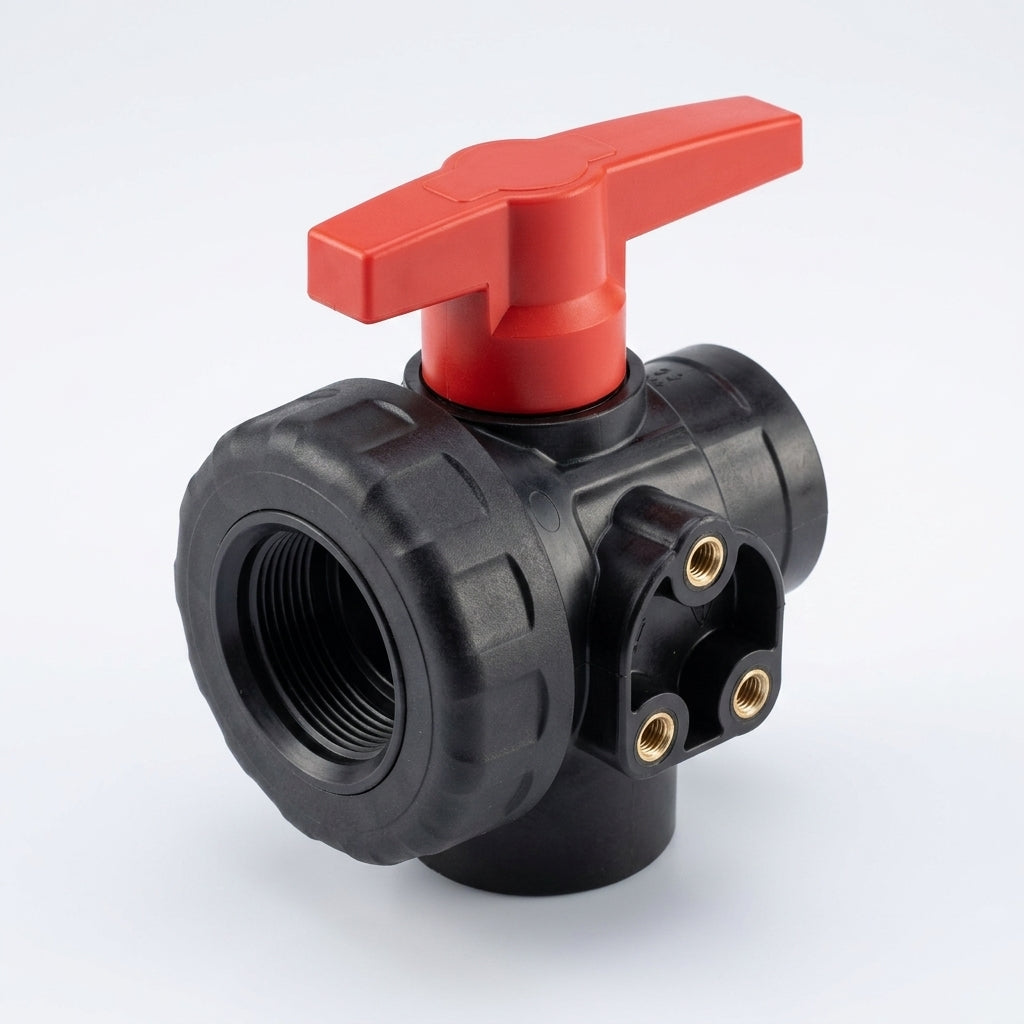

2in BSP Female 3-Way T Port Polypropylene Ball Valve, 10 Bar

Three-way T port ball valve in fibreglass-reinforced polypropylene with 2in BSP female connections.

This industrial-grade valve is engineered for applications requiring reliable flow distribution or isolation across three ports. The T port configuration maintains continuous flow capability in one primary direction whilst allowing selective routing through secondary connections. Maximum operating pressure is 10 bar, with durable Teflon ball seats and EPDM seals providing chemical resistance and longevity.

Key Features

• Fibreglass-reinforced polypropylene construction for strength and chemical compatibility
• Teflon ball seats for smooth operation and extended service life
• EPDM seals for broad fluid compatibility
• Three M8 mounting threads for secure installation
• T port design: flow cannot be completely isolated
• 10 bar maximum working pressure

Specifications

• Connection type: 2in BSP female threads
• Port configuration: 3-way T
• Material: Fibreglass-reinforced polypropylene
• Ball seats: Teflon
• Seals: EPDM
• Maximum pressure: 10 bar
• Mounting: 3× M8 threads

Applications

• Fluid distribution and diversion in circulation systems
• Chemical and water treatment plant piping
• Agricultural irrigation and spraying systems
• Industrial cooling and recirculation loops
• Multi-port manifold assembly integration
