Description

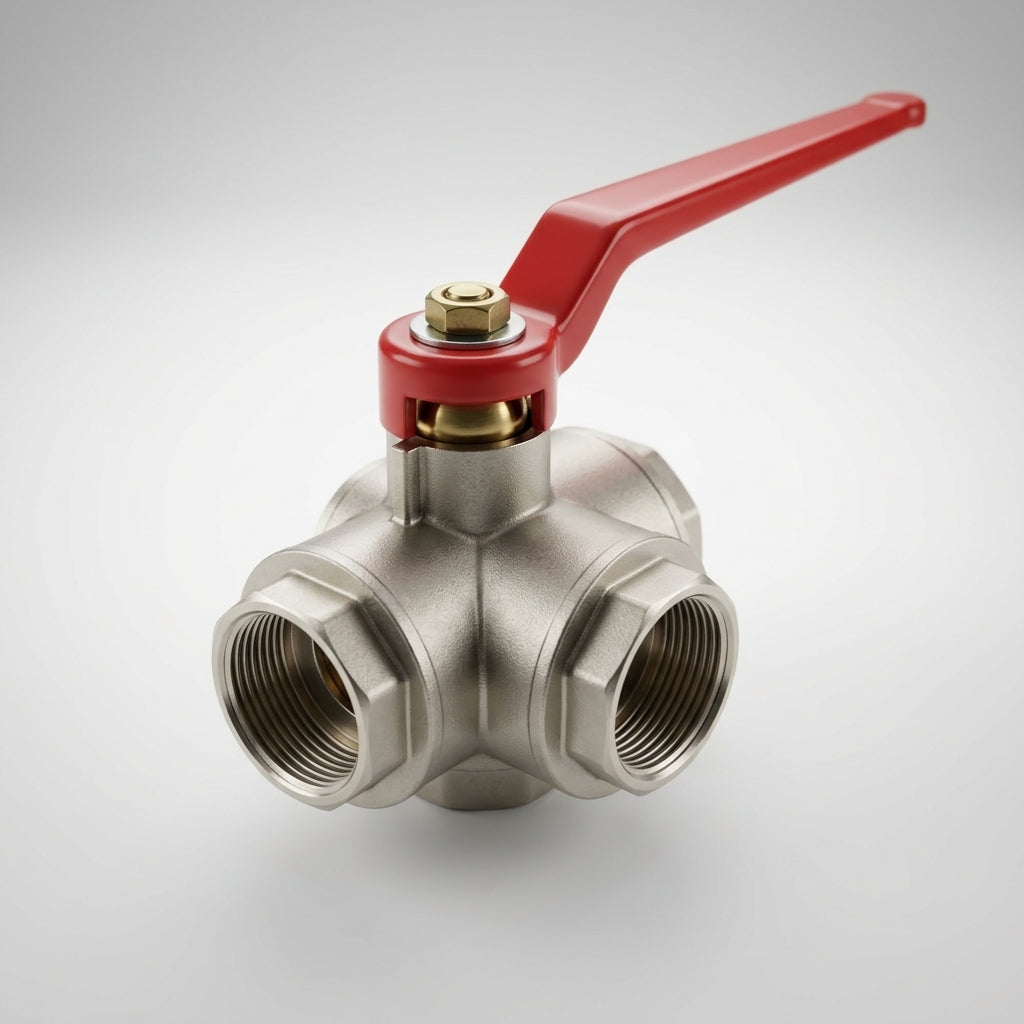

Three-way L port ball valve with 2in BSP female connections, designed for low-pressure fluid and gas isolation in industrial piping systems.
This valve features a brass construction with nickel-chromium plating for enhanced corrosion resistance and durability. The L port configuration allows directional flow control, making it ideal for diverting or combining fluids in process lines. PTFE ball seats and Viton seals ensure reliable sealing across a range of media.
Key Features
- 2in BSP female thread connections
- L port design for three-way flow routing
- Nickel-chromium plated brass body
- PTFE ball seats for positive sealing
- Viton elastomer seals for chemical compatibility
- Manual lever operation for simple on-off control
Specifications
- Connection size: 2in BSP female
- Maximum working pressure: 20 bar
- Maximum temperature: 80°C
- Port configuration: L port (three-way)
- Body material: Brass with nickel-chromium plating
- Seat material: PTFE
- Seal material: Viton
Applications
- Heating and cooling systems
- Low-pressure water circulation
- Process fluid diversion and routing
- Agricultural and irrigation systems
- Industrial equipment coolant circuits
