12V DC Self-Priming Diesel Transfer Pump Kit, 45 Lpm, 12m Head

Complete 12 Volt DC self-priming vane pump system designed for safe and efficient diesel, oil and anti-freeze transfer.

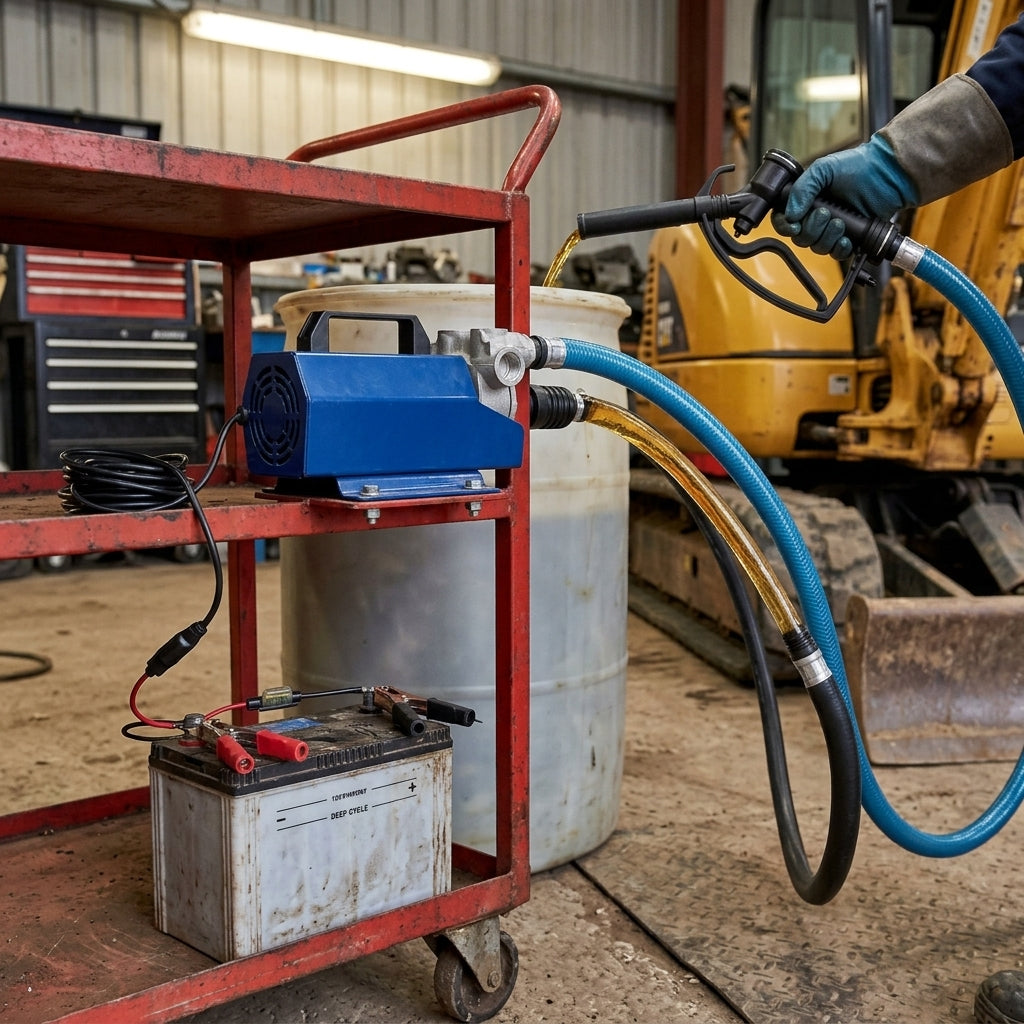

This portable transfer kit combines a self-priming vane pump with integrated bypass valve and on/off switch for straightforward operation. The system delivers reliable fluid handling at up to 45 litres per minute with a maximum head of 12 metres, making it suitable for workshop, fleet and mobile applications.

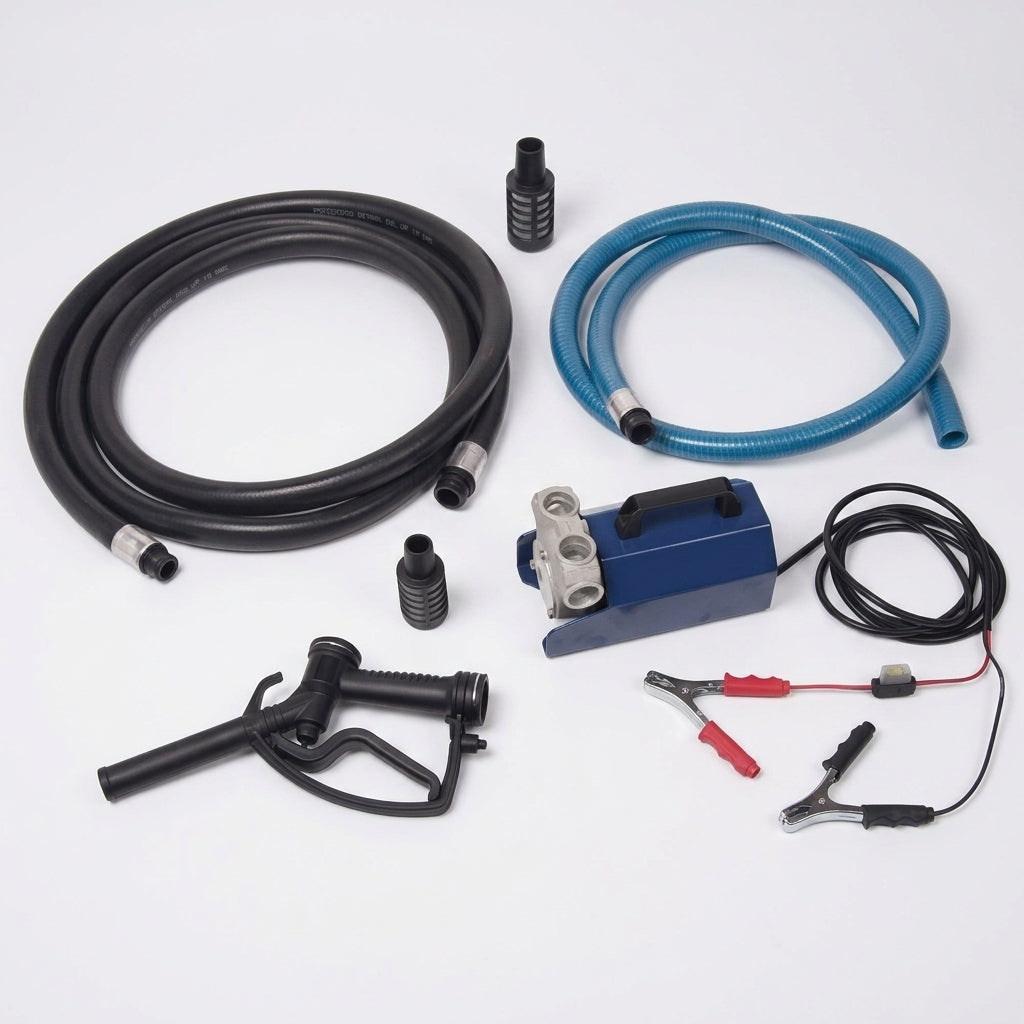

Key Features

• Self-priming vane pump with integrated bypass valve
• Integrated on/off switch for easy control
• Switchable side or top outlet ports for flexible installation
• 4 metre delivery hose and 2 metre suction hose with filter included
• Polypropylene filler gun for controlled dispensing
• 275 cm power cable with mounting clips

Specifications

• Power: 12 Volt DC, 20 Amp fuse rated
• Flow rate: 45 litres per minute maximum
• Maximum head: 12 metres
• Hose connections: 25 mm barb inlet/outlet
• Suction hose length: 2 metres with integrated filter
• Delivery hose length: 4 metres

Applications

• Diesel fuel transfer and storage topping
• Heating oil and lubricant dispensing
• Anti-freeze circulation and system filling
• Mobile vehicle refuelling and workshop use
• Industrial fluid handling and maintenance
