Description

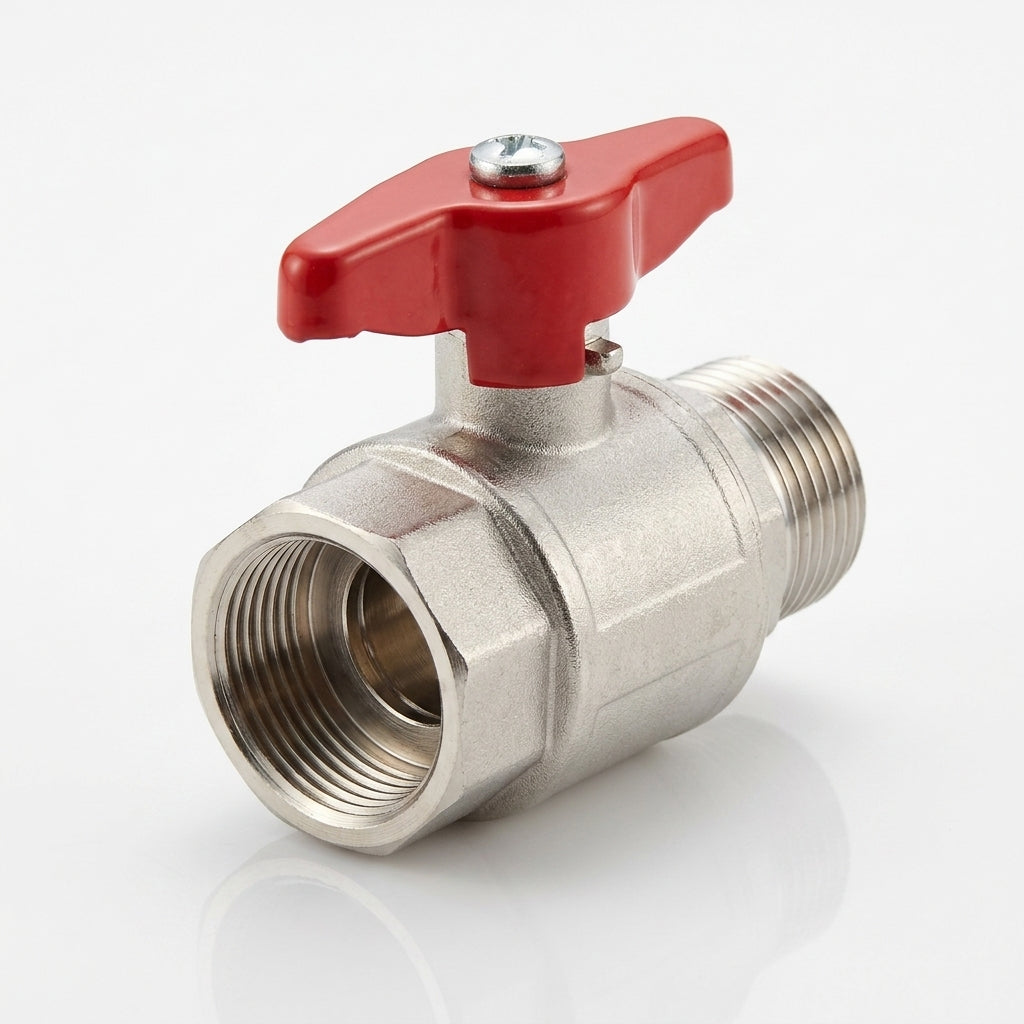

Nickel-plated brass ball valve with 1in BSP male and female threads, 25 bar rated, 80mm length.
This full-port ball valve provides dependable on-off flow control for general industrial and domestic applications. The plated brass construction resists corrosion, whilst PTFE ball seats ensure smooth, reliable operation. T-handle design permits quick manual actuation.
Key Features
- 1in BSP male inlet x 1in BSP female outlet thread
- 25 bar maximum working pressure
- 80°C maximum temperature rating
- Nickel/chromium plated brass body
- PTFE ball and seat material
- T-handle for manual operation
Specifications
- Body length: 80 mm
- Connection type: 1in BSP parallel threads
- Pressure rating: 25 bar
- Temperature range: 0 to 80°C
- Material: plated brass
- Ball seat: PTFE
Applications
- Water supply systems and distribution
- Low-pressure fluid transfer lines
- Industrial process control
- Domestic plumbing installations
- General hydraulic and pneumatic circuits
