Description

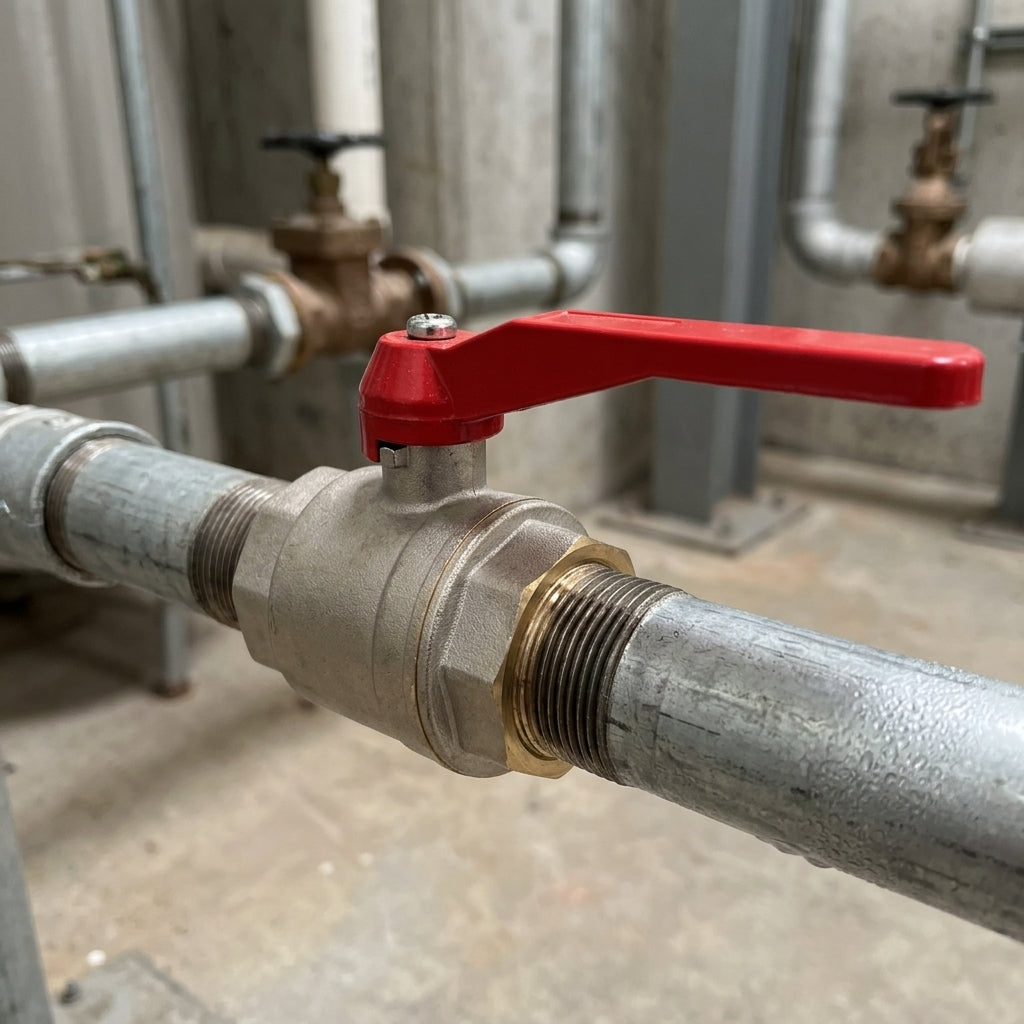

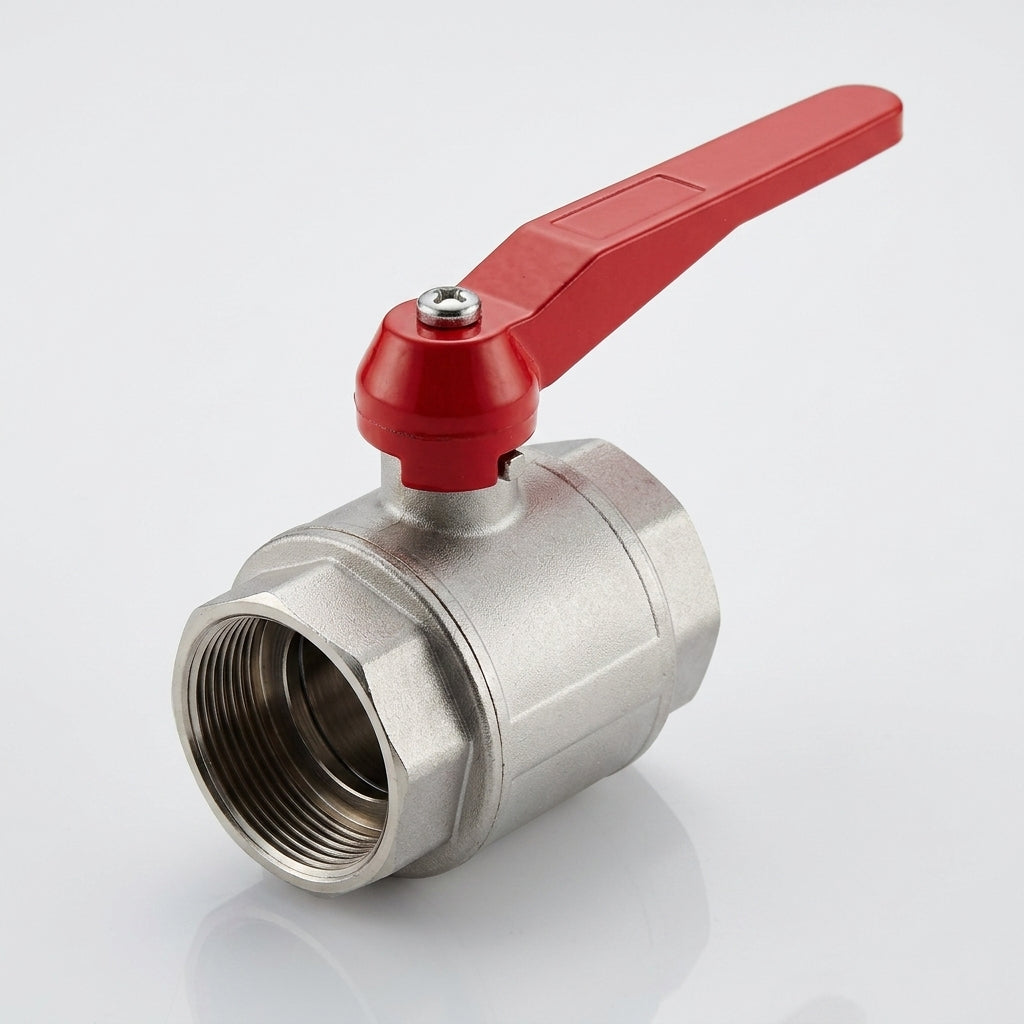

Nickel-chromium plated brass lever ball valve with 1½in BSP female connections, rated to 20 bar and 80°C maximum operating temperature.
This compact ball valve features a lever handle for quick manual operation and is constructed from durable plated brass with PTFE ball seats for reliable performance across industrial applications. The 89mm body length makes it suitable for space-constrained installations requiring straightforward on-off flow control.
Key Features
- 1½in BSP female thread both inlet and outlet
- Lever handle for easy manual operation
- Nickel-chromium plated brass construction
- PTFE ball seats for smooth, reliable sealing
- Compact 89mm body length
- 20 bar maximum working pressure
Specifications
- Connection type: BSP female threads
- Valve size: 1½in
- Maximum pressure: 20 bar
- Maximum temperature: 80°C
- Material: Plated brass
- Body length: 89mm
- Seat material: PTFE
- Actuation: Manual lever
Applications
- General industrial fluid control systems
- Water and coolant circulation
- Compressed air systems at low pressures
- Hydraulic fluid management
- Plant and machinery flow regulation
