Description

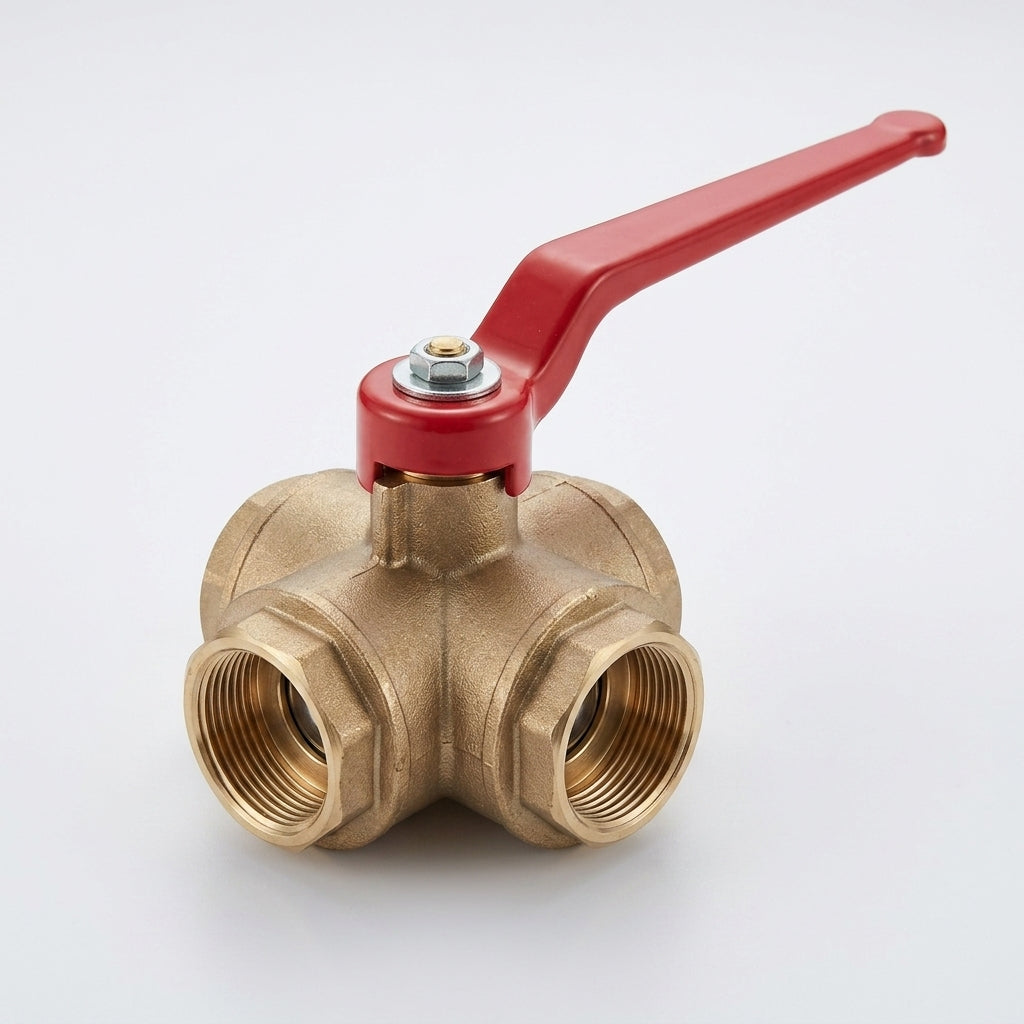

Three-way L port ball valve with 1in BSP female threads, rated to 25 bar and 80°C, constructed from nickel-chromium plated brass.
This compact 3-way valve is designed for diverting or combining flows in medium-pressure piping systems. The L port configuration allows selective direction of flow between the three connection points. Nickel-chromium plating provides corrosion resistance, whilst PTFE ball seats and Viton seals ensure reliable operation across industrial and commercial applications.
Key Features
- 1in BSP female connection threads
- L port design for flexible flow routing
- Nickel-chromium plated brass construction
- PTFE ball seats for low friction operation
- Viton seals for temperature and chemical resistance
- Maximum working pressure 25 bar
Specifications
- Connection size: 1in BSP female
- Port type: L (three-way)
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Body material: Nickel-chromium plated brass
- Seal material: Viton
- Ball seat material: PTFE
Applications
- Industrial fluid transfer and distribution systems
- Heating and cooling circuit switching
- Process plant flow control and diversion
- Water and air line manifold systems
- Medium-pressure pneumatic and hydraulic circuits
