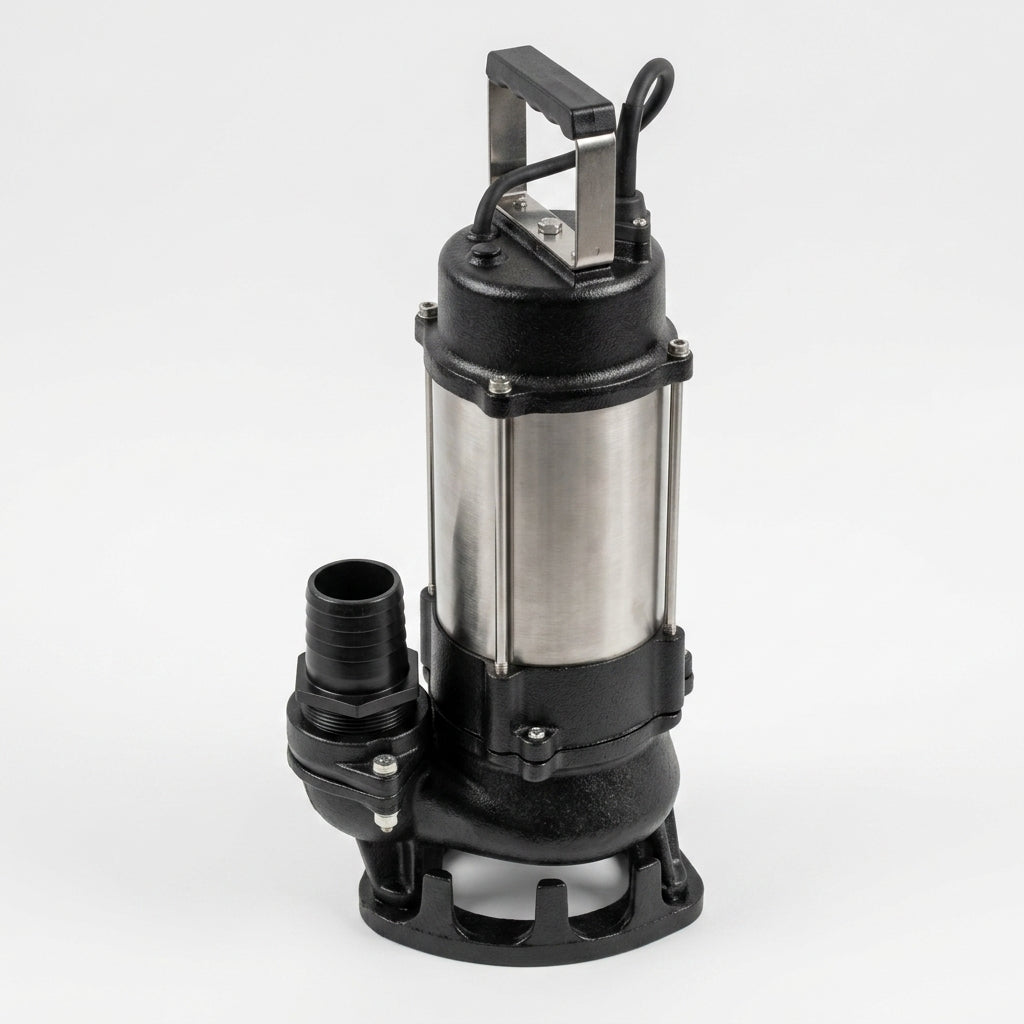

1.5 kW Heavy-Duty Drainage Pump 720 L/min 19m Head 230V

Professional-grade centrifugal pump designed for continuous site drainage and dewatering of clean and dirty water.

This heavy-duty drainage pump delivers 720 litres per minute at a maximum head of 19 metres, making it suitable for demanding commercial and construction applications. Built with stainless steel motor case and shaft combined with cast iron impeller and volute housing, the unit offers exceptional durability and corrosion resistance. Twin mechanical seals with carbon ceramic and silicon carbide components in a lubricated chamber ensure reliable operation.

Key Features

• 1.5 kW motor, 230V 50Hz single-phase supply
• Flow rate: 720 L/min at maximum capacity
• Maximum head: 19 metres for elevated discharge
• Stainless steel motor case and shaft for corrosion protection
• Twin mechanical seals in lubricated chamber
• 3in BSP male outlet with hose tail connection
• Manual and automatic operation options available
• Complete with 10 metres of power cable

Specifications

• Power: 1.5 kW, 230V 50Hz
• Flow rate: 720 L/min maximum
• Maximum head: 19 m
• Outlet: 3in BSP male
• Weight: 32 kg
• Dimensions: 510 H × 195 W × 285 L mm
• Impeller: Cast iron
• Seal type: Twin mechanical seals, carbon ceramic and silicon carbide

Applications

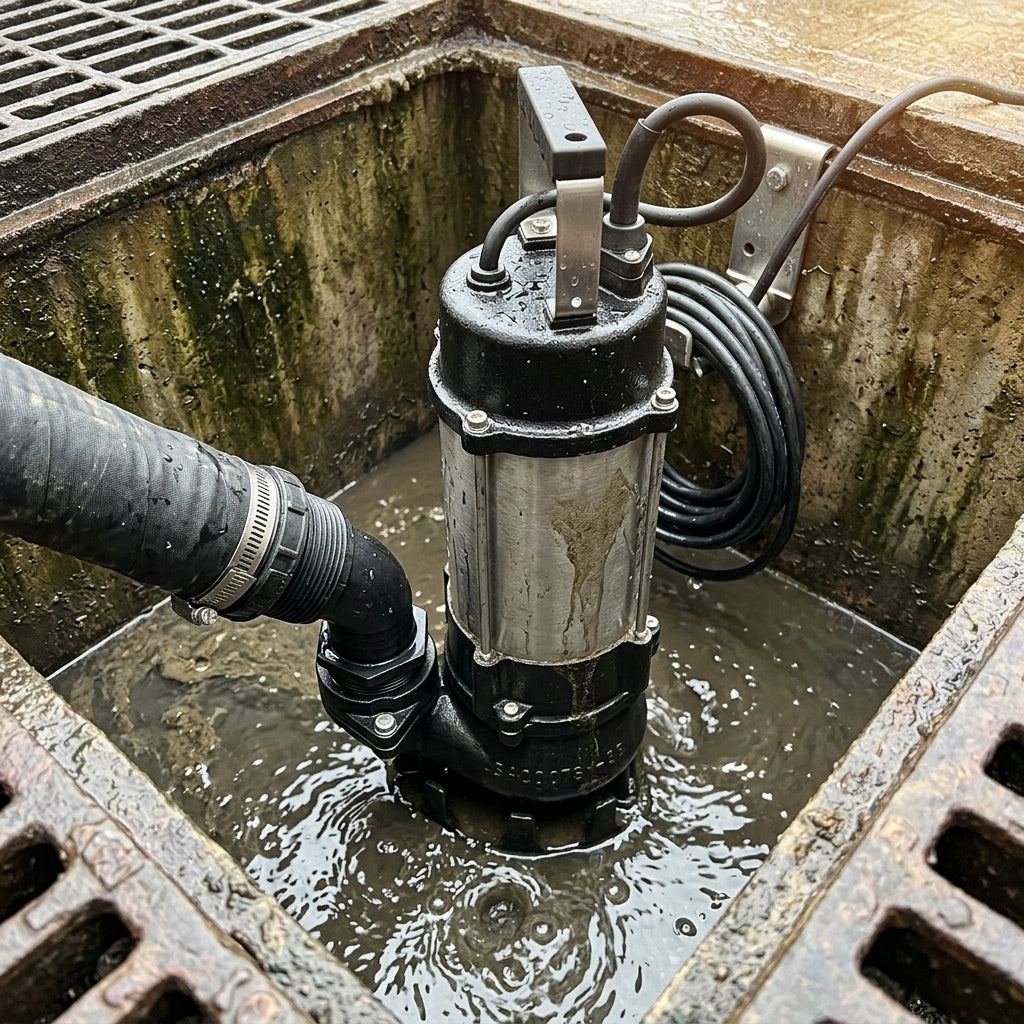

• Construction site drainage and dewatering
• Flood water removal from basements and foundations
• Sewage and foul water transfer
• Industrial water management and transfer
• Emergency water removal operations
