Description

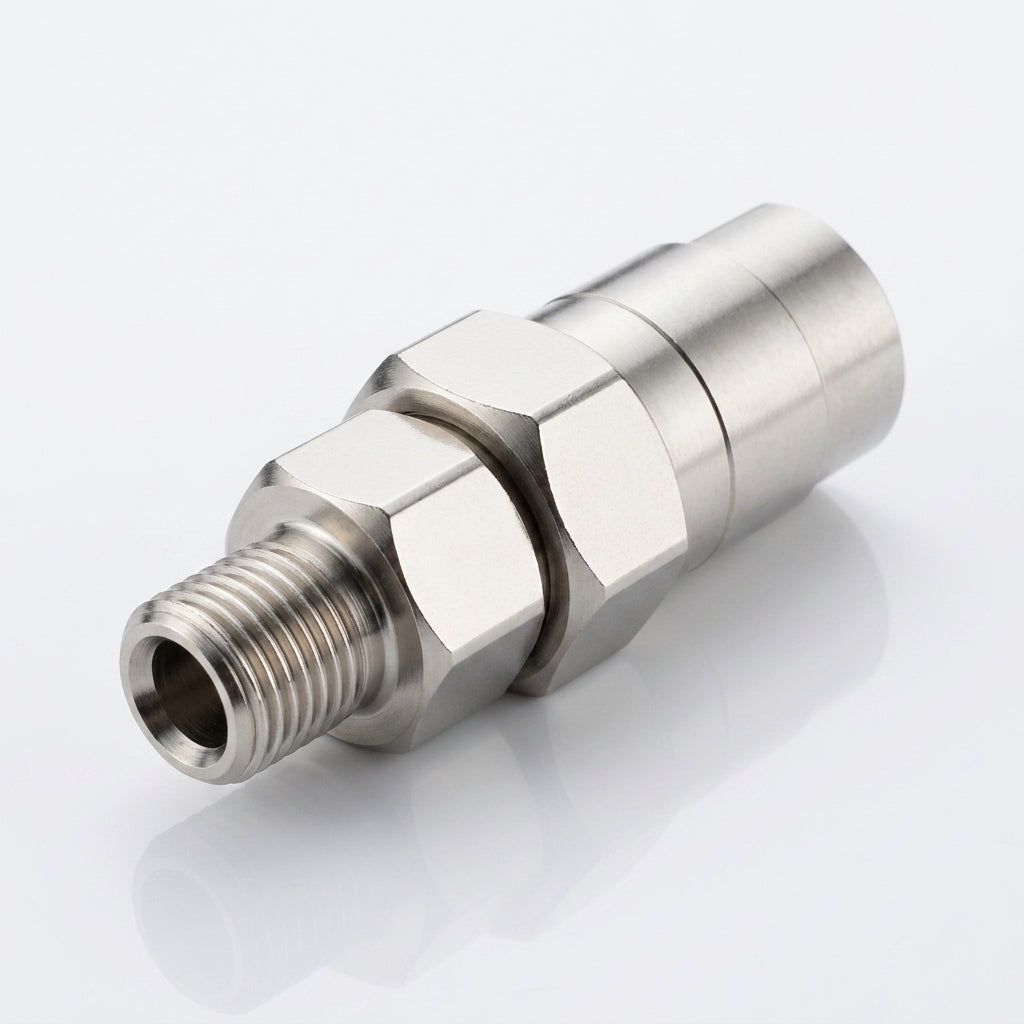

Triple bearing swivel connector with 1/4in BSP female inlet and male outlet, rated to 275 bar with nickel-plated brass body and stainless steel bearings.
This compact swivel is designed to prevent hose kinking and tangling in high-pressure applications. The triple bearing system ensures smooth rotation under load, whilst the nickel-plated brass construction offers durability and corrosion resistance across a wide range of fluid types.
Key Features
- Triple bearing system for reliable, long-life rotation
- Nickel-plated brass body for corrosion resistance
- Stainless steel bearings
- 275 bar maximum working pressure
- Suitable for water, oil, air and compatible fluids (pH 3–12)
- Compact 1/4in BSP connection size
Specifications
- Inlet: 1/4in BSP female
- Outlet: 1/4in BSP male
- Pressure rating: 275 bar
- Maximum speed: 1000 rpm @ 30°C; 30 rpm @ 120°C
- Body material: Nickel-plated brass
- Bearing material: Stainless steel
Applications
- High-pressure cleaning and washing systems
- Industrial hose assemblies and quick-connect systems
- Oil and fuel transfer lines
- Compressed air distribution
- General fluid handling and circulation systems
