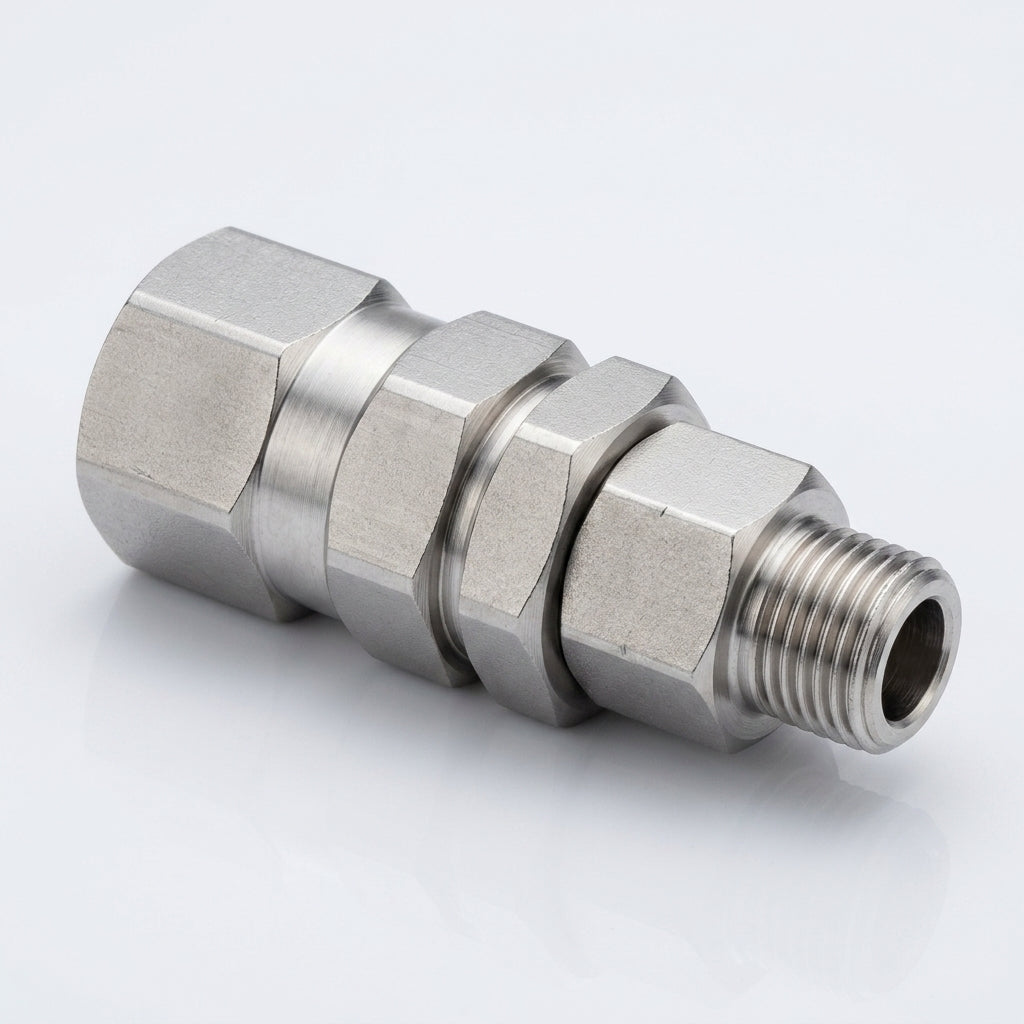

1/4in BSP Swivel Coupling – 350 Bar Stainless Steel Connector

Compact swivel coupling designed for reliable 350 bar high-pressure fluid transfer in industrial and mobile applications.

This 1/4in BSP swivel connector features a stainless steel body with FKM (Viton) seals to withstand demanding hydraulic environments. The 90° rotation capability reduces hose stress and simplifies connection alignment in confined spaces. Rated for continuous operation up to 90°C with thermal design limits to 160°C, it supports flow rates to 40 litres per minute.

Key Features

• 350 bar maximum working pressure
• Stainless steel body for corrosion resistance
• FKM (Viton) seals for chemical and temperature stability
• 1/4in BSP male taper inlet and female outlet configuration
• 90° swivel action to reduce hose flexing and strain
• Flow capacity to 40 litres per minute

Specifications

• Inlet: 1/4in BSP male taper
• Outlet: 1/4in BSP female
• Rated pressure: 350 bar
• Maximum flow: 40 litres per minute
• Operating temperature: up to 90°C continuous
• Design temperature: 160°C
• Maximum speed: 30 rpm
• Sealing material: FKM (Viton)
• Body material: stainless steel

Applications

• Hydraulic power units and mobile machinery
• Industrial fluid transfer systems with rotating components
• Equipment requiring hose relief and alignment flexibility
• High-pressure pressure-wash and cleaning systems
• Agricultural and construction equipment hydraulics
