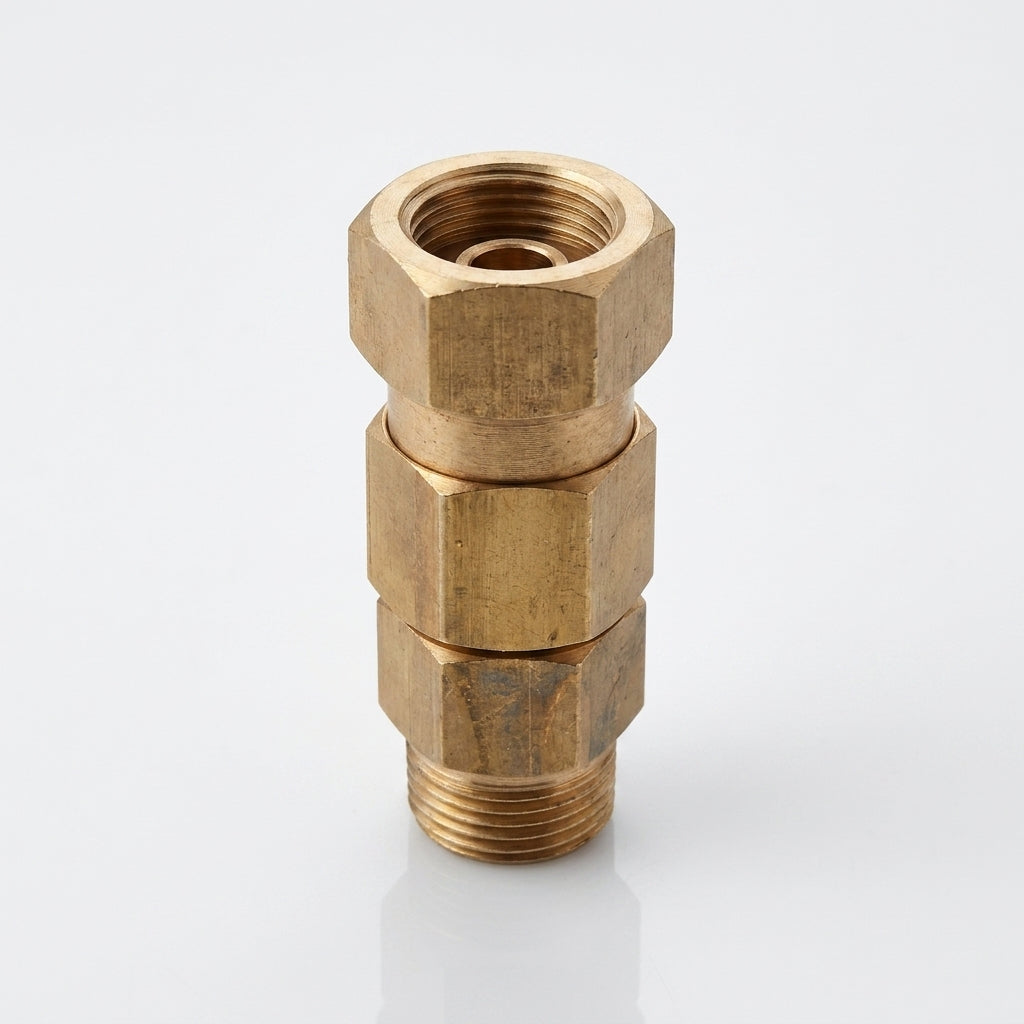

1/4in BSP Male to Female Brass Swivel, 250 Bar, 40 Lpm

Compact brass swivel coupling with 1/4in BSP male inlet and female outlet, rated 250 bar at 40 lpm flow rate.

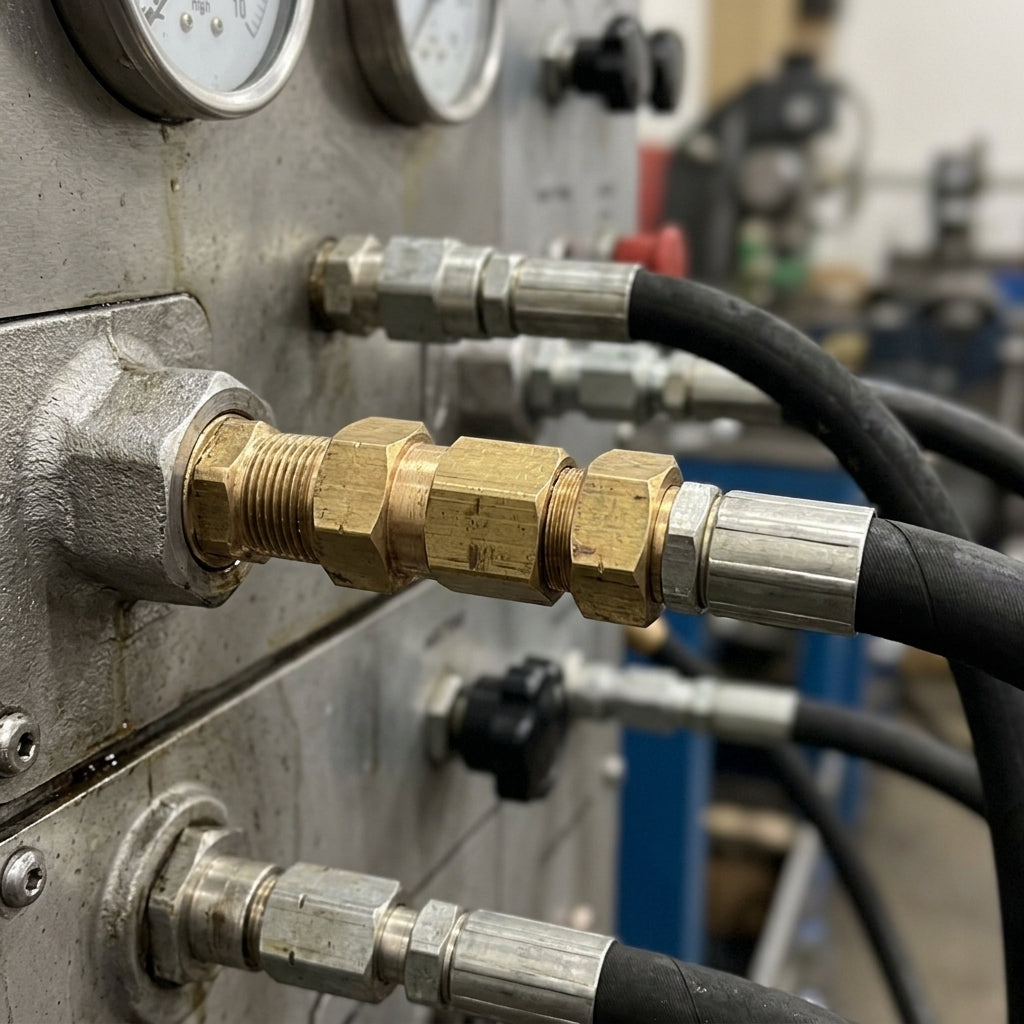

This swivel connector provides 360° rotational freedom to prevent hose kinking and twisting during operation. The tapered male inlet couples with standard 1/4in BSP female ports, while the outlet accepts compatible 1/4in BSP male connections. Manufactured from brass with FKM seals for reliable performance across hydraulic and fluid transfer applications.

Key Features

• 1/4in BSP taper male inlet × 1/4in BSP female outlet
• 360° swivel head prevents hose rotation and tangling
• 250 bar maximum rated pressure
• 40 lpm continuous flow capacity
• FKM (Viton) seals for chemical and temperature resistance
• Brass body for corrosion resistance

Specifications

• Connection size: 1/4in BSP both ends
• Body material: Brass
• Seal material: FKM (Viton)
• Rated working pressure: 250 bar
• Maximum flow rate: 40 litres per minute
• Operating temperature range: -20°C to +90°C
• Temperature rating: 160°C

Applications

• Hydraulic system connectors and couplings
• Fluid transfer lines and hose assemblies
• High-pressure industrial pumping systems
• Mobile and fixed hydraulic equipment
• Fuel and lubricant distribution networks
