Description

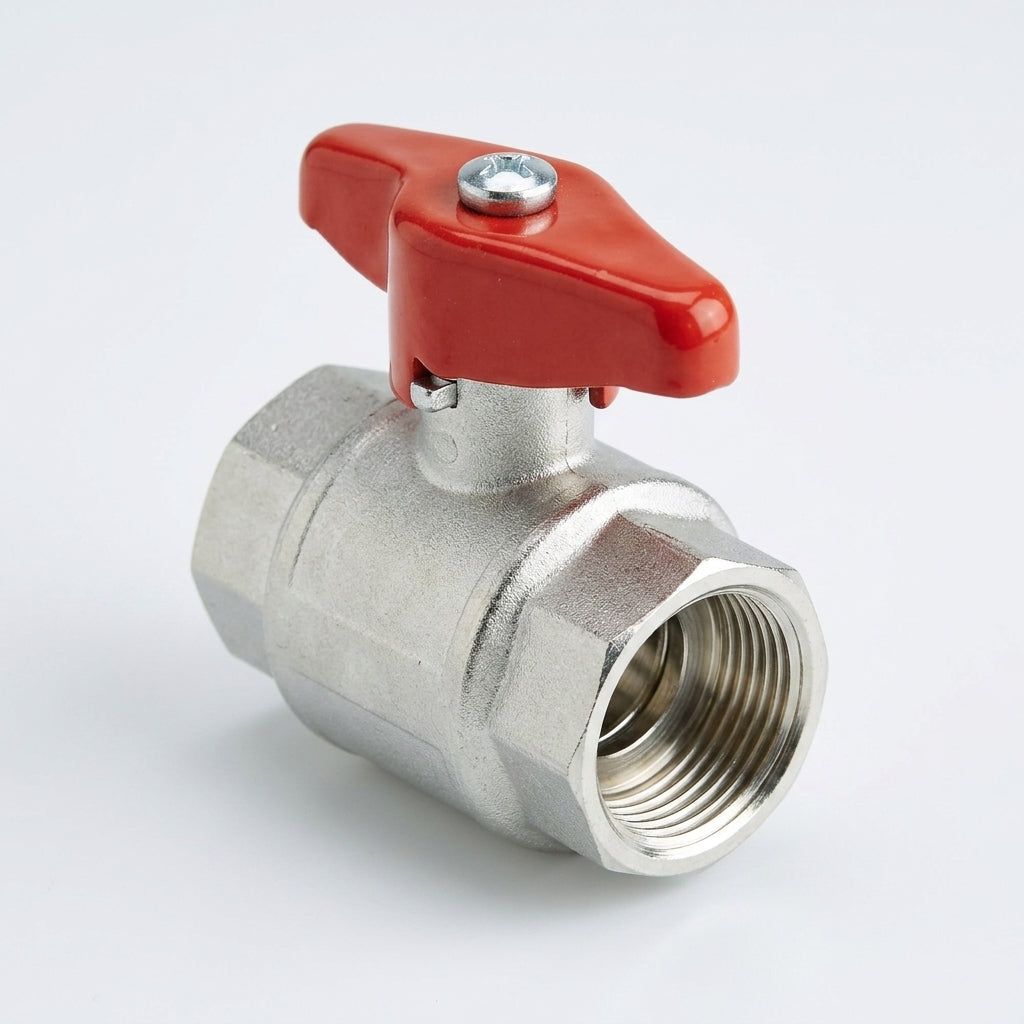

Quarter-inch BSP female-to-female nickel-plated brass ball valve rated to 32 bar and 80°C.
This compact ball valve features a T-handle for easy operation and is constructed from nickel and chromium-plated brass with PTFE ball seats for reliable sealing. Measuring 46 mm in length, it delivers dependable on-off control in confined spaces.
Key Features
- 1/4in BSP female connections on both ports
- Maximum operating pressure: 32 bar
- Maximum operating temperature: 80°C
- T-handle design for quick manual operation
- PTFE ball seats for durable sealing performance
- Compact 46 mm body length
Specifications
- Connection type: 1/4in BSP female × 1/4in BSP female
- Material: nickel and chromium-plated brass
- Pressure rating: 32 bar
- Temperature rating: 80°C maximum
- Overall length: 46 mm
- Seat material: PTFE
Applications
- General industrial fluid control systems
- Water and coolant circuits

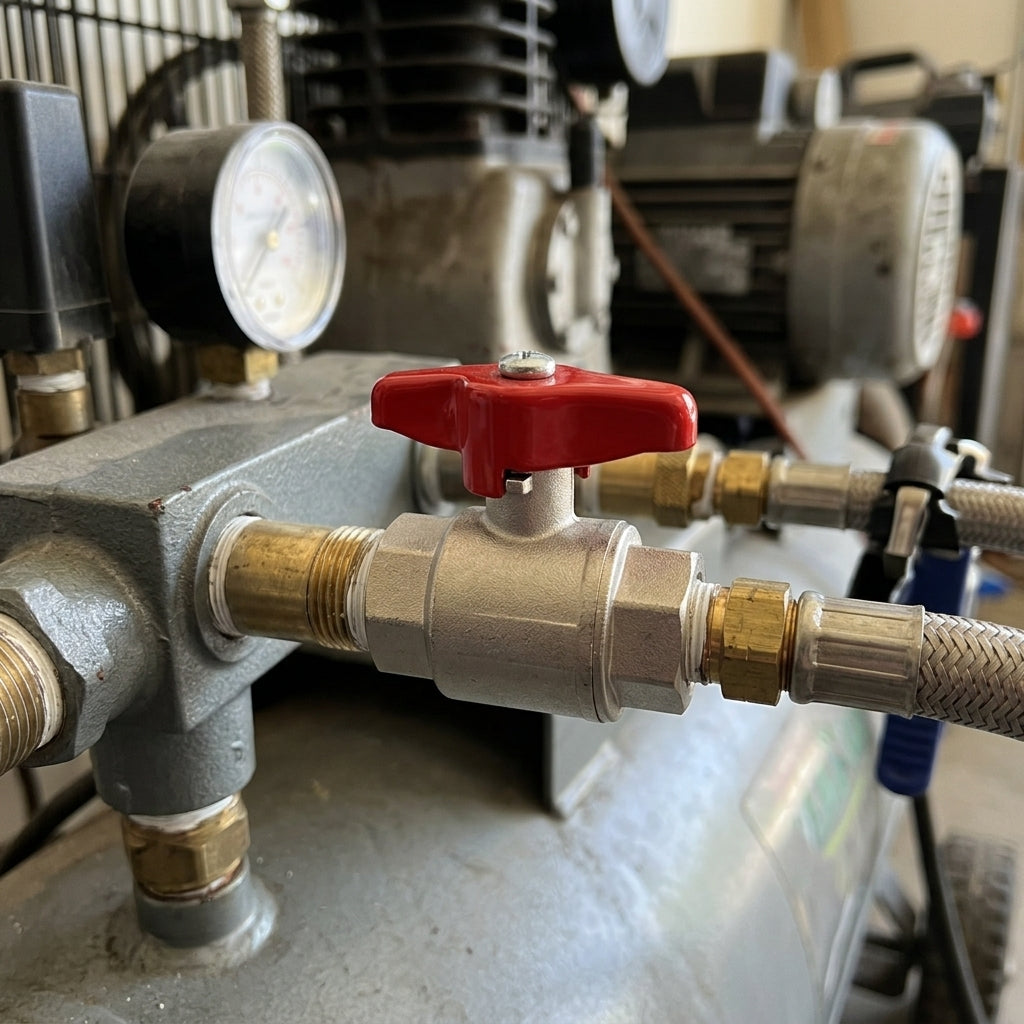

- Compressed air distribution networks
- Hydraulic test points and manifold connections
- Plumbing installations requiring compact isolation valves
