1/4in BSP Female × 3/8in BSP Male Swivel, 275 Bar Triple Bearing

Triple bearing swivel coupling connecting 1/4in BSP female inlet to 3/8in BSP male outlet, rated to 275 bar.

Engineered for high-pressure fluid transfer applications, this swivel features a nickel-plated brass body with stainless steel triple bearing system to reduce friction and enable smooth rotation under load. Suitable for water, oil, air and compatible fluids within pH 3–12 range. Rated for continuous operation at temperatures up to 120°C at 30 rpm, or up to 1000 rpm at 30°C.

Key Features

• Triple bearing system for reduced wear and extended service life
• Nickel-plated brass construction resists corrosion
• Stainless steel bearing components for durability
• Rated to 275 bar working pressure
• Operates across pH 3–12 fluid range
• Temperature-rated to 120°C continuous

Specifications

• Inlet: 1/4in BSP female
• Outlet: 3/8in BSP male
• Working pressure: 275 bar maximum
• Speed: 30 rpm @ 120°C; 1000 rpm @ 30°C
• Body material: Nickel-plated brass
• Bearing material: Stainless steel

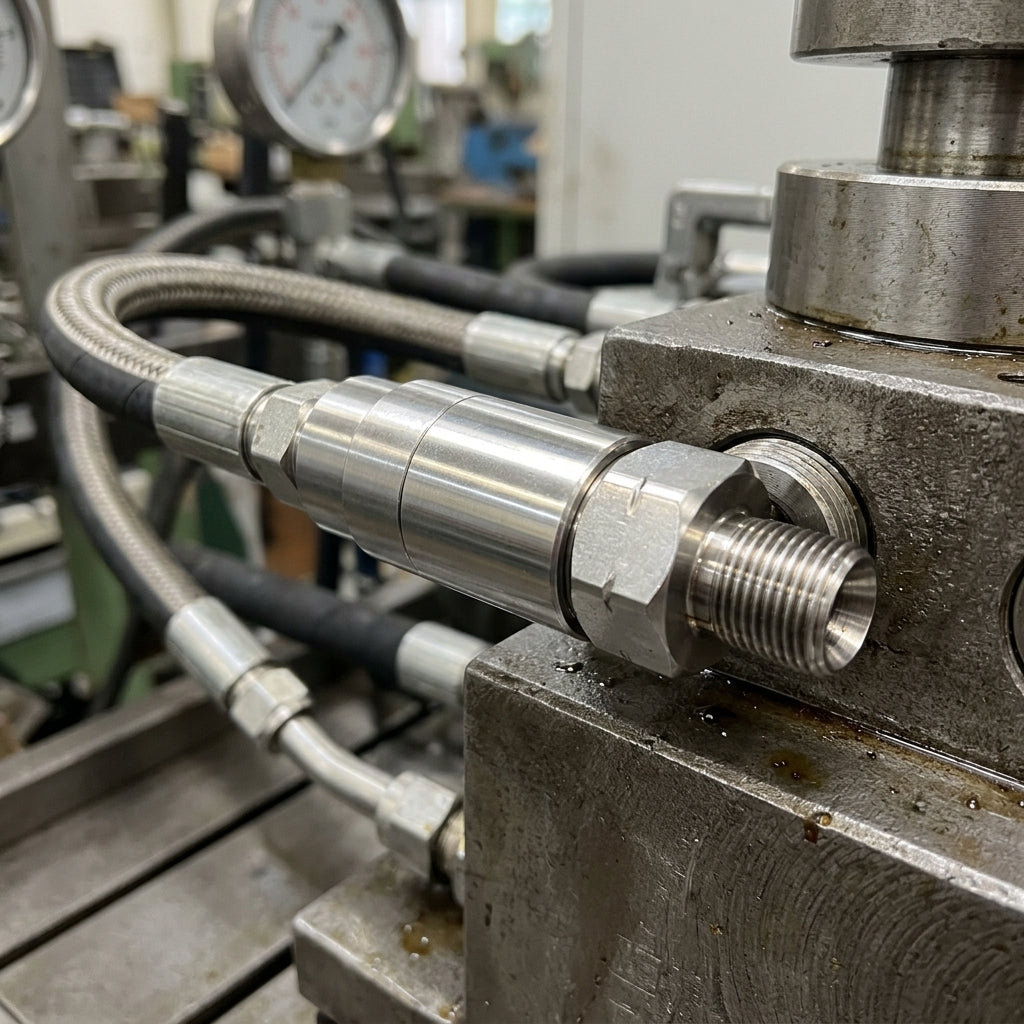

Applications

• High-pressure water and oil transfer systems
• Compressed air distribution networks
• Pressure washer and cleaning equipment
• Industrial fluid delivery and circulation
• Multi-fluid transfer where rotation is required
