Description

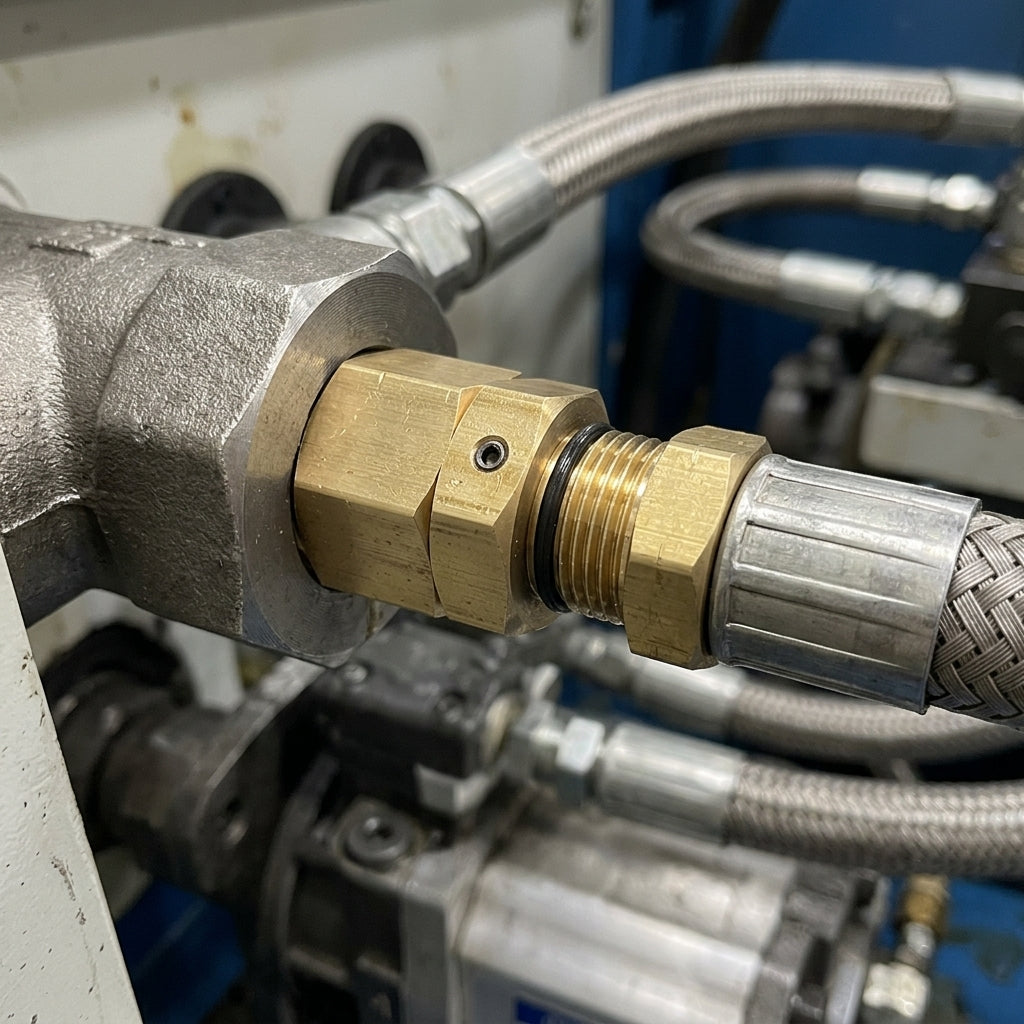

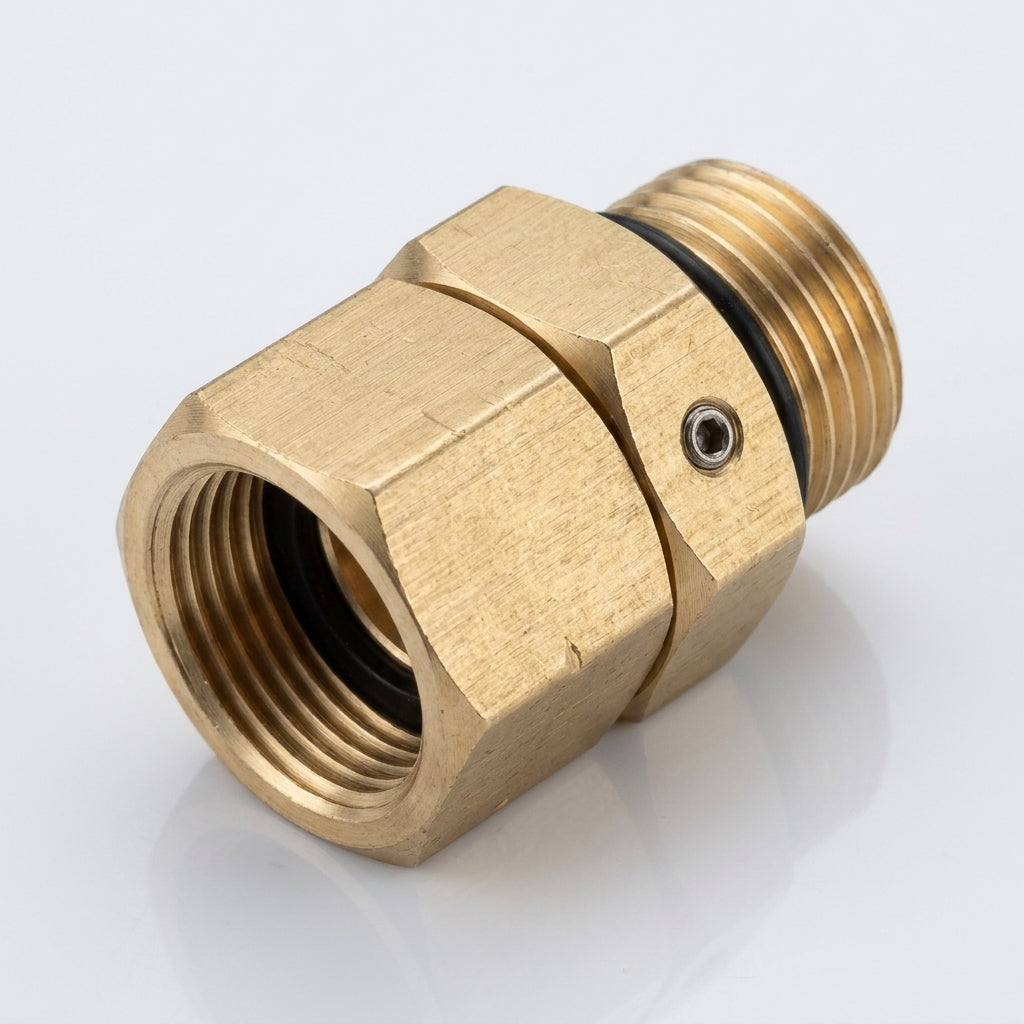

High-pressure brass swivel connection with 1/2in BSP ports, rated to 350 bar and 40 litres per minute flow capacity.
This large-flow swivel connector provides flexible coupling between hydraulic and pneumatic lines while enabling continuous rotation without twisting hose or tubing. Constructed from stainless steel with FKM seals, it withstands sustained pressures and elevated temperatures in industrial fluid-transfer applications.
Key Features
- 350 bar (5,076 psi) rated working pressure
- 40 litres per minute maximum flow capacity
- Stainless steel body for corrosion resistance
- FKM (Viton) seals for chemical compatibility
- 90°C continuous operating temperature; 160°C rated limit
- 30 rpm maximum rotational speed
Specifications
- Port size: 1/2in BSP male inlet, 1/2in BSP female outlet
- Material: stainless steel body
- Seal type: FKM (Viton)
- Pressure rating: 350 bar
- Flow capacity: 40 Lpm
- Temperature range: –20°C to 160°C
Applications
- Hydraulic systems and power units
- Pneumatic transfer lines
- Mobile and fixed plant machinery
- Agricultural and industrial equipment
- Fluid-handling systems requiring rotation without hose twist
