Description

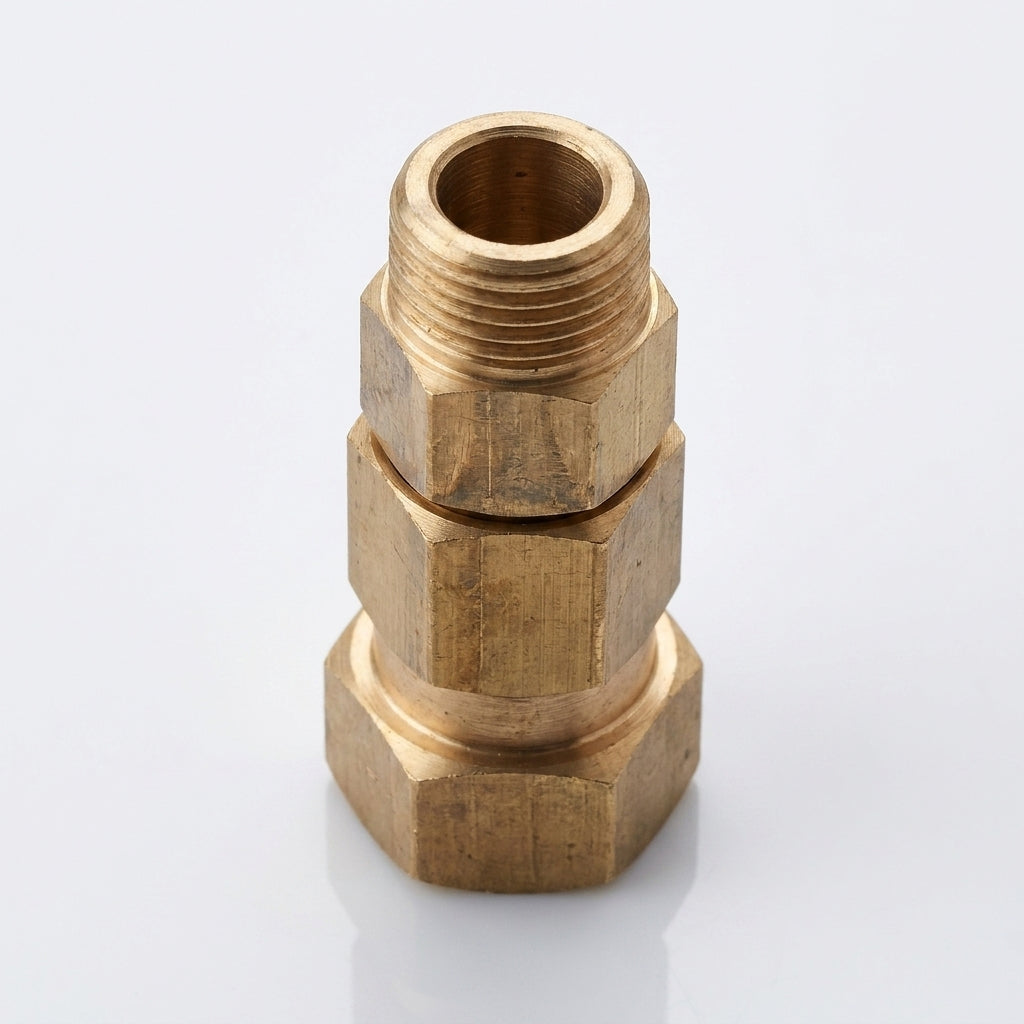

Brass swivel coupling with 1/2in BSP male and female ports, designed for high-pressure hydraulic systems and fluid transfer applications.
This swivel fitting enables 360° rotation without leaking, making it essential for applications where hoses or equipment need flexible positioning. The brass construction provides excellent corrosion resistance, whilst FKM seals ensure reliable performance across a wide temperature range.
Key Features
- 360° swivel action prevents hose kinking and tangling
- 250 bar working pressure rating
- Flow capacity up to 40 litres per minute
- Brass body for durability and corrosion resistance
- FKM (Viton) seals for temperature stability
- Male and female 1/2in BSP taper connections
Specifications
- Inlet: 1/2in BSP male taper
- Outlet: 1/2in BSP female
- Maximum working pressure: 250 bar
- Maximum flow rate: 40 Lpm
- Maximum working temperature: 90°C
- Rated temperature: 160°C
- Body material: Brass
- Seal material: FKM (Viton)
Applications

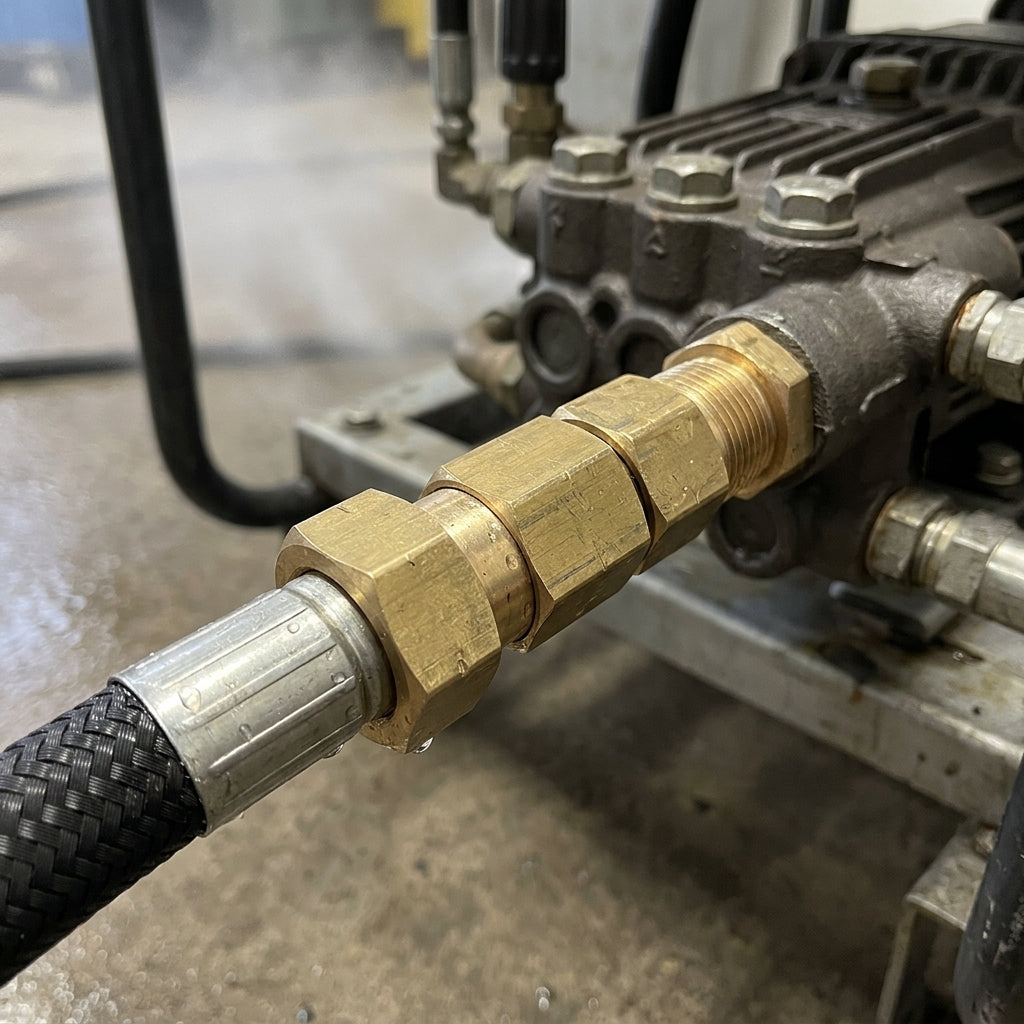

- Hydraulic systems and machinery
- Pressure washing and cleaning equipment
- Fluid transfer and circulation systems
- Industrial pump connections
- Mobile equipment and vehicles requiring flexible hose routing
