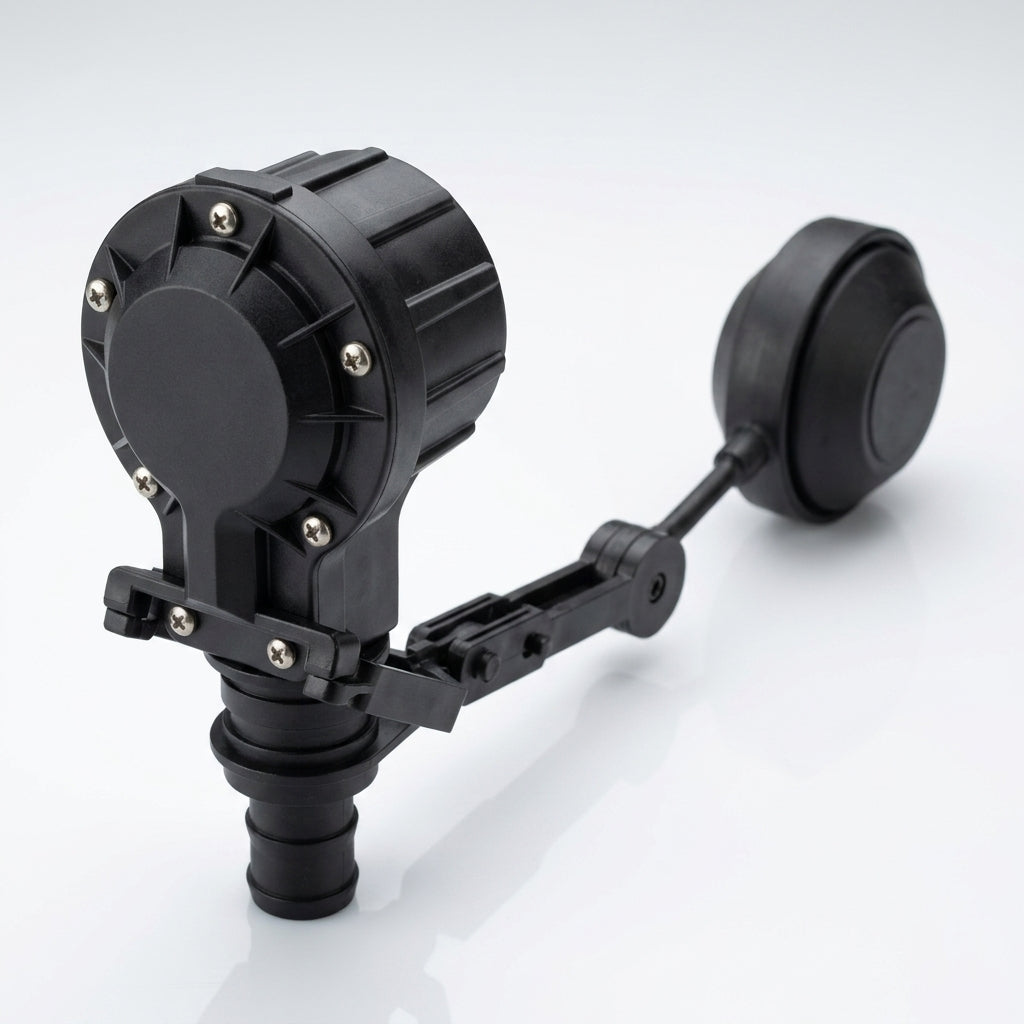

1 1/4in BSP Quick-Acting Float Valve for Water Tanks

Instant shut-off float valve designed to regulate water levels in tanks and cisterns whilst eliminating pump cycle chatter.

This hydraulic water level regulator switches instantly from full flow to complete closure, preventing repeated pump start/stop cycling during tank filling. The high flow rate enables rapid tank refilling with minimal pressure drop. A delayed restart feature (approximately 3 cm hysteresis) further reduces pump cycling frequency when water is drawn from the tank.

Key Features

• Instant open-to-closed transition eliminates pump cycling
• High flow rate with minimal pressure loss
• Adjustable float arm with 60 mm extension (6 settings)
• 180° float movement range for reliable operation
• Polycarbonate body and float construction
• CE marked and stainless steel fasteners

Specifications

• Connection: 1-1/4in BSP
• Operating pressure: 0.2–6 bar
• Operating temperature: 0–50°C
• Storage temperature: -20–80°C
• Over-pressure rating: 15 bar
• Burst pressure: >20 bar
• Float arm adjustment: up to 60 mm (6 settings)
• Body material: Polycarbonate
• Fasteners: Stainless steel

Applications

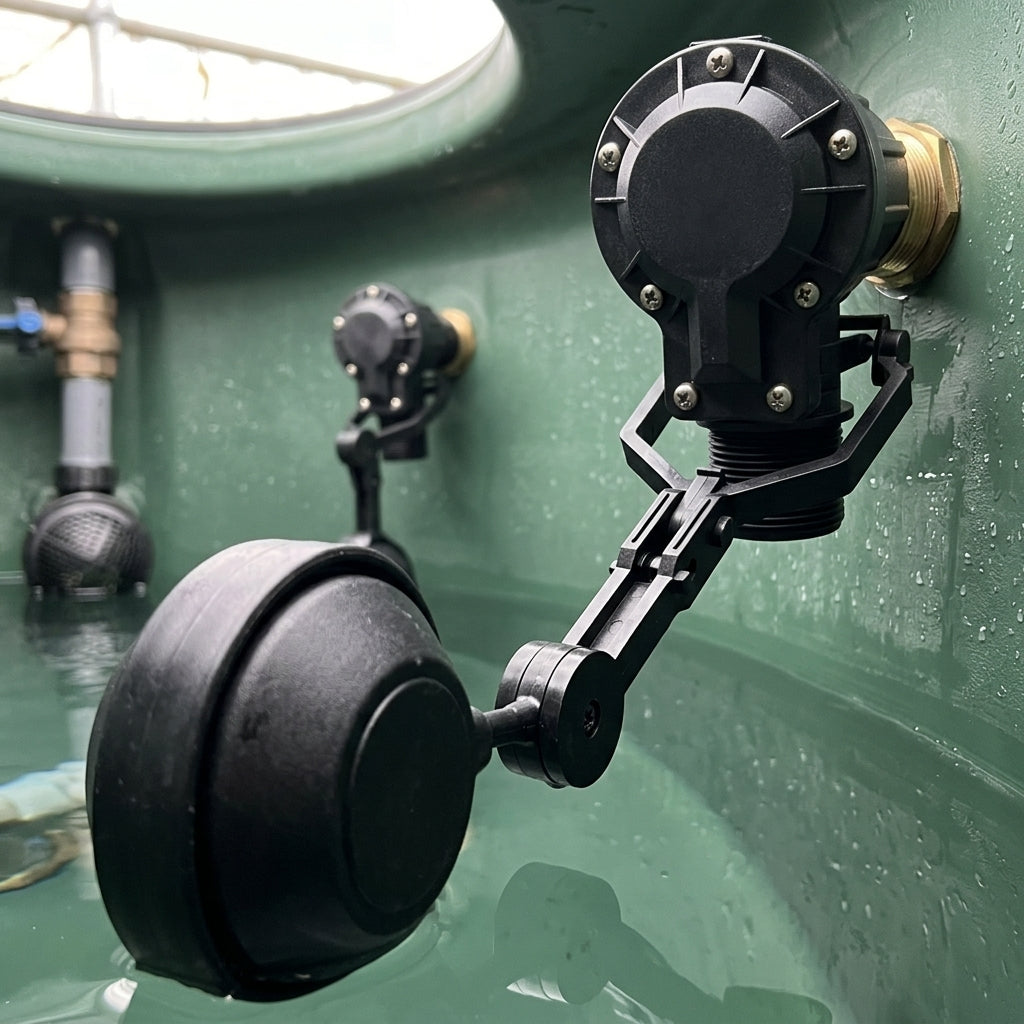

• Domestic and commercial water storage tanks
• Cistern level control and pump management
• Rapid-fill systems requiring low pressure drop
• Industrial water supply and recycling systems
• Agricultural water storage installations
