Description

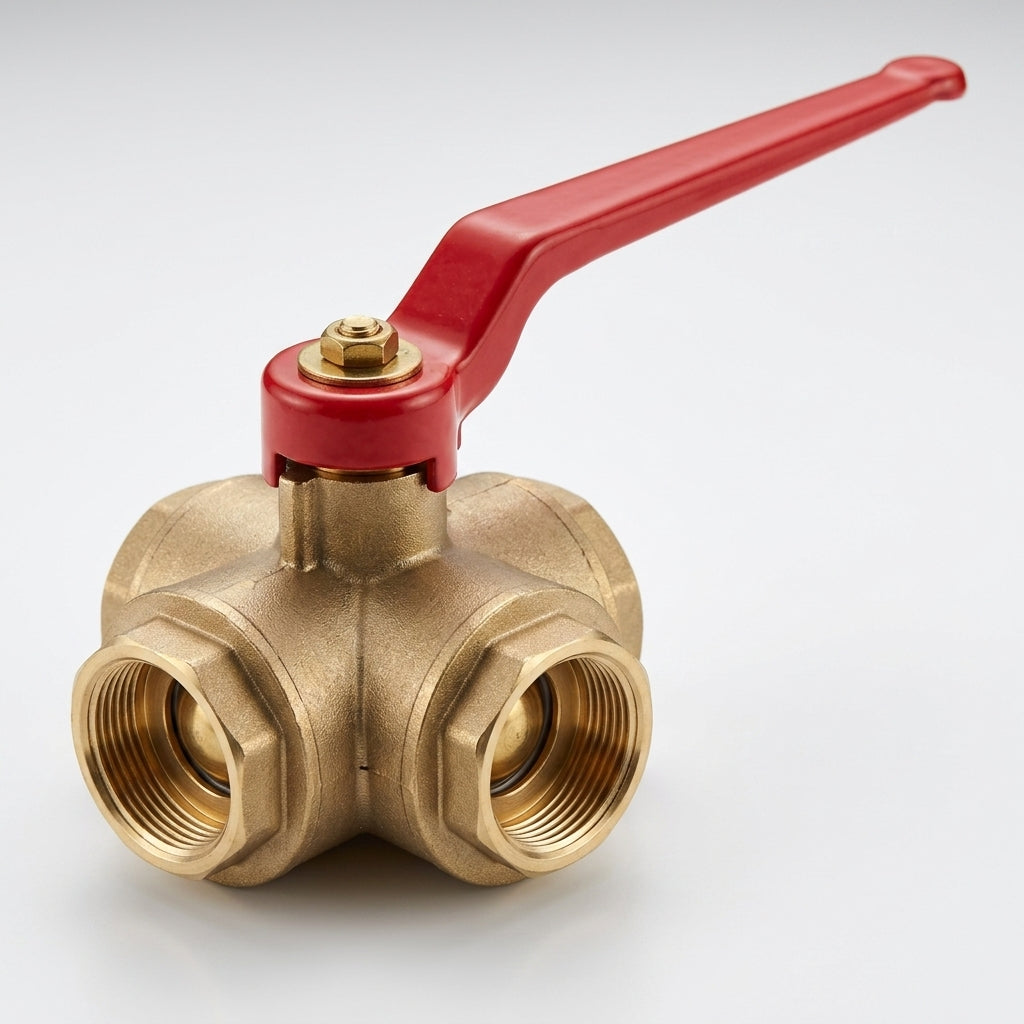

Three-way T port ball valve with 1-1/4in BSP female threaded connections, designed for directional flow control in medium-pressure systems.
This valve combines robust brass construction with precision engineered internals to deliver dependable performance across industrial and commercial applications. The T port configuration allows simultaneous flow to two outlets or selective routing between ports, making it ideal for system flexibility and bypass requirements.
Key Features
- 1-1/4in BSP female threaded ports
- T port design for multi-directional flow control
- Nickel and chromium plated brass body
- PTFE ball seats for smooth operation and durability
- Viton seals for chemical and temperature resistance
- Maximum working pressure: 20 bar
Specifications
- Connection type: BSP female
- Port configuration: T port (three-way)
- Maximum pressure rating: 20 bar
- Maximum temperature: 80°C
- Ball seat material: PTFE
- Seal material: Viton
- Body material: Nickel/chromium plated brass

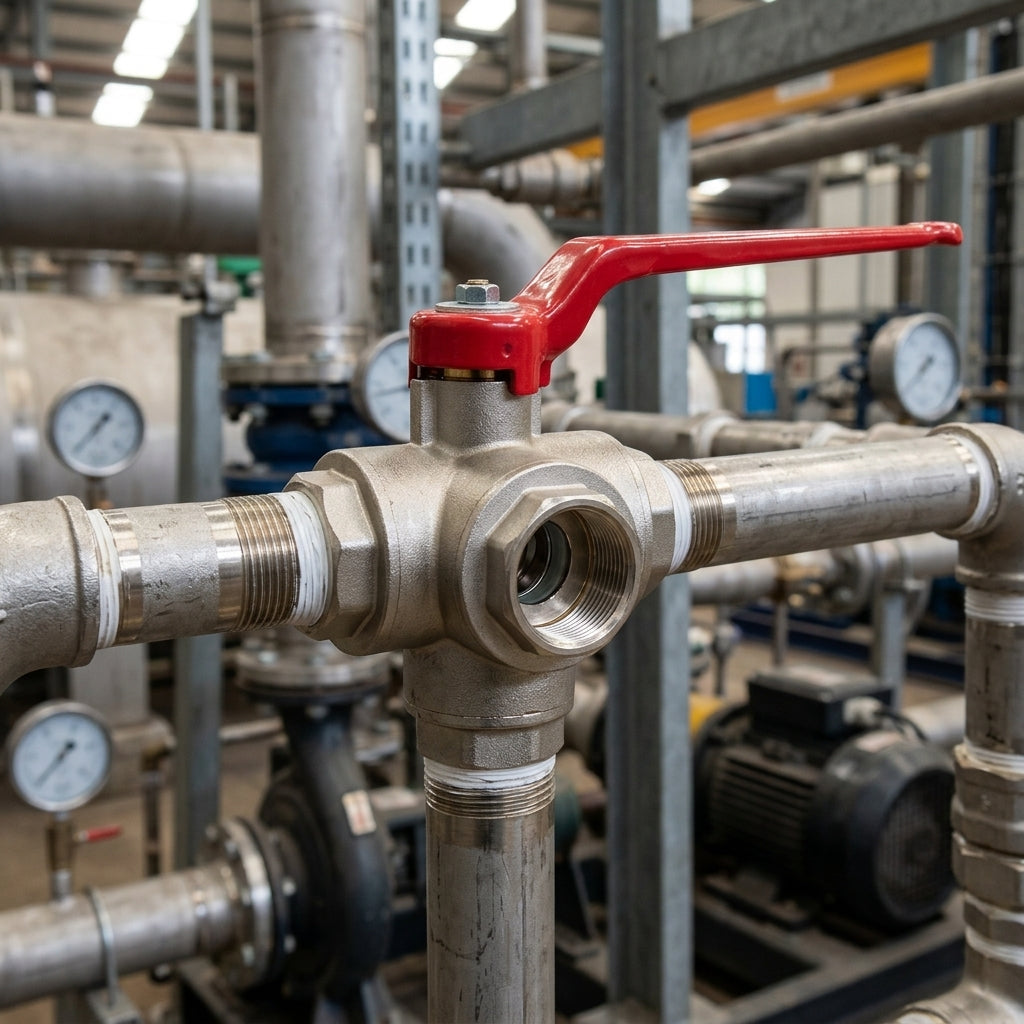

Applications
- Irrigation and water distribution systems
- Coolant flow control in industrial machinery
- Pneumatic and hydraulic circuit switching
- Bypass and diversion applications
- Multi-zone fluid routing in plant equipment
