Description

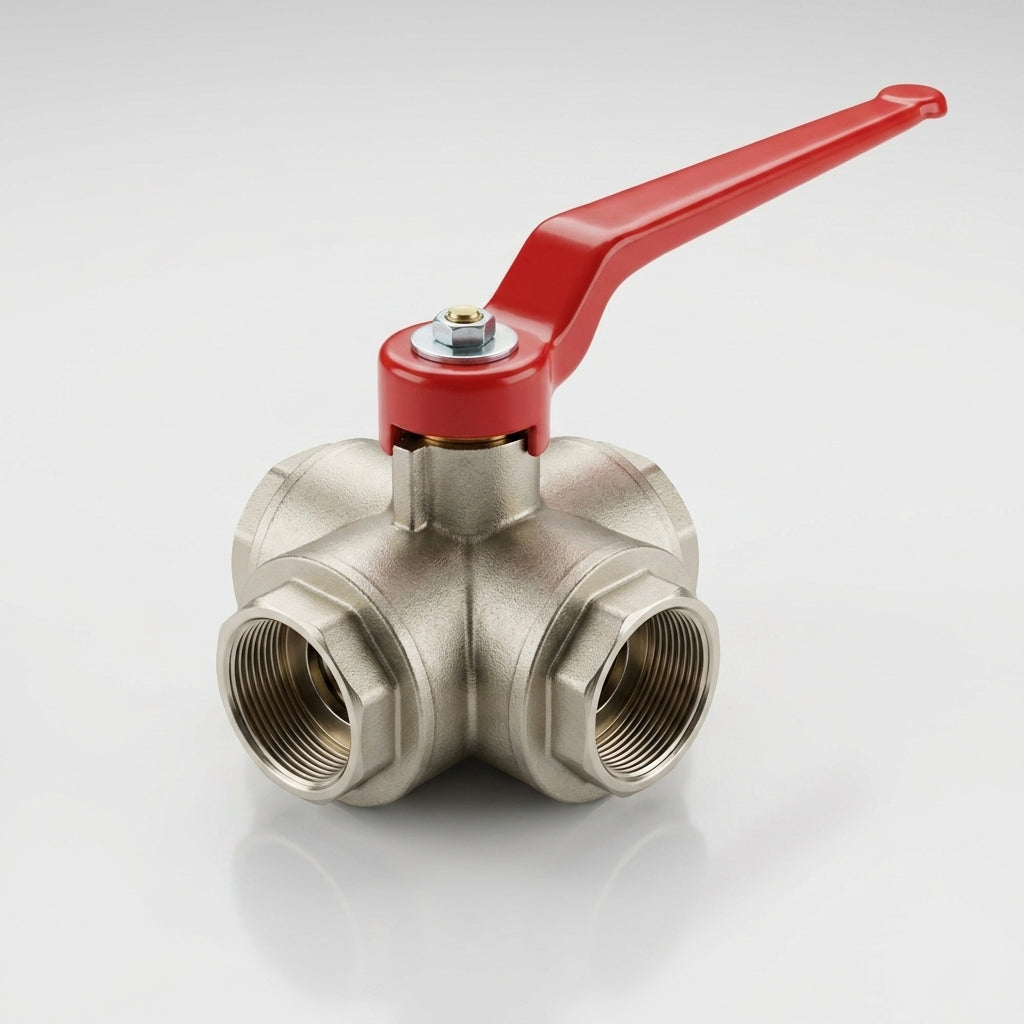

Three-way L-port ball valve with 1-1/4in BSP female connections, designed for directional flow control at pressures up to 20 bar.
This multi-port valve enables switching and diverting of fluid flow between three separate circuits. The nickel-chromium plated brass body provides corrosion resistance, while PTFE ball seats and Viton seals ensure reliable sealing across a range of industrial fluids. Suitable for applications requiring safe, reversible control at moderate temperatures.
Key Features
- 1-1/4in BSP female thread connections
- L-port configuration for three-way flow routing
- Nickel-chromium plated brass construction
- PTFE ball seats for extended service life
- Viton dynamic seals for compatibility with mineral oils and water
- Manual lever or actuator compatible operation
Specifications
- Connection size: 1-1/4in BSP female
- Maximum pressure: 20 bar
- Maximum temperature: 80°C
- Port configuration: L-port (three-way)
- Body material: Brass with nickel-chromium plating
- Seat material: PTFE
- Seal material: Viton
Applications
- Pump discharge direction control
- Tank fill and drain switching
- Cooling circuit bypass management
- Multi-zone heating system distribution
- Compressed air circuit diversion
