Description

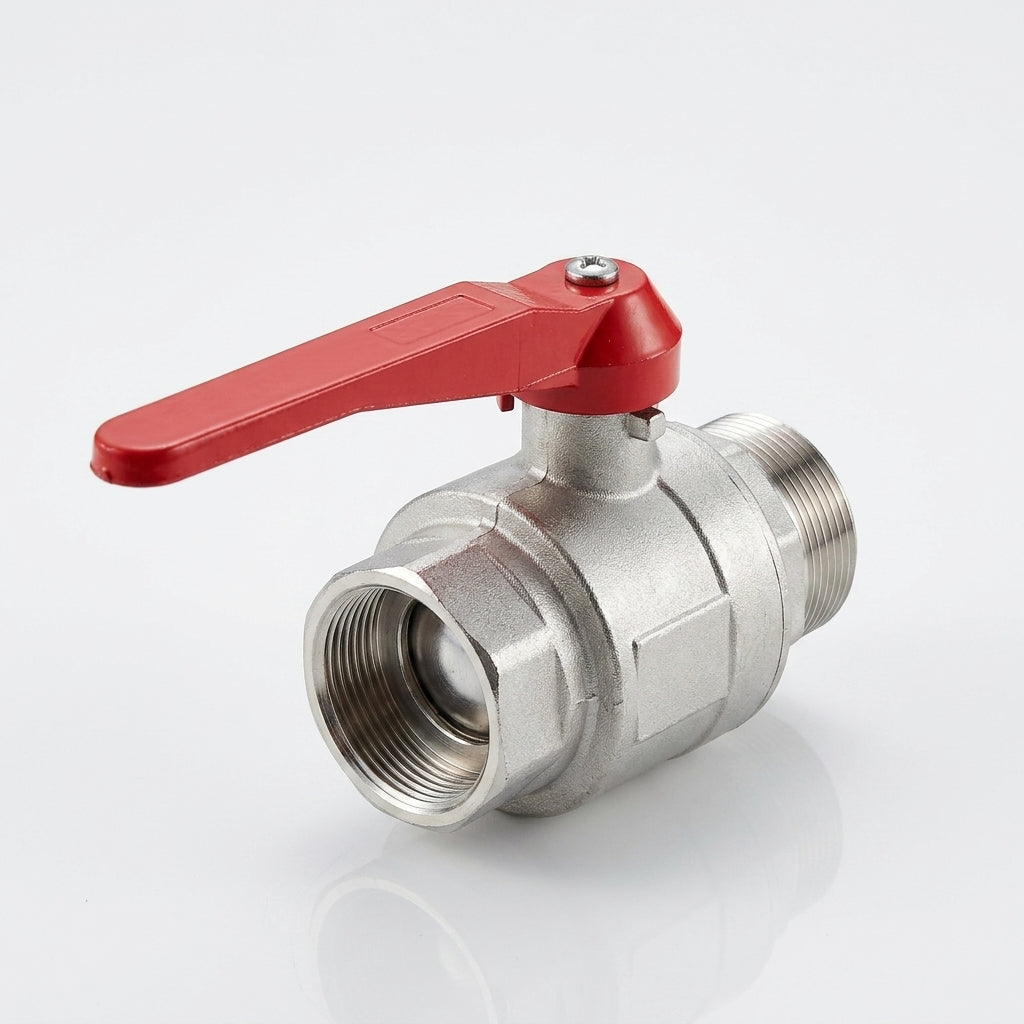

Nickel/chromium plated brass ball valve with lever handle, connecting 1-1/2in BSP male to 1-1/2in BSP female threads.
This compact valve provides dependable on-off flow control with a quick-action lever mechanism. The plated brass body resists corrosion, whilst PTFE ball seats ensure reliable sealing and smooth operation across repeated cycles.
Key Features
- Plated brass construction with corrosion resistance
- PTFE ball seats for reliable sealing
- Lever handle for quick manual operation
- Compact 103mm body length
- 20 bar maximum working pressure
- Operating temperature range to 80°C
Specifications
- Connection: 1-1/2in BSP male × 1-1/2in BSP female
- Pressure rating: 20 bar maximum
- Temperature limit: 80°C
- Body length: 103mm
- Material: Nickel/chromium plated brass
- Seat material: PTFE
Applications
- Industrial water supply and circulation systems
- Plant and machinery flow isolation
- Compressed air and pneumatic systems
- General purpose on-off service
- Maintenance and equipment isolation
