Slope Fittings – 11°–29° Base, Tee & Cross for 48.3mm Tube

Slope Fittings – Adjustable Clamp Range for Sloped Handrails (11°–29°)
These galvanised clamp fittings are designed for inclined handrail systems on slopes between 11° and 29°. Ideal for stairways, ramps, and uneven ground. Suitable for 48.3mm O.D. tube only.

Specifications:

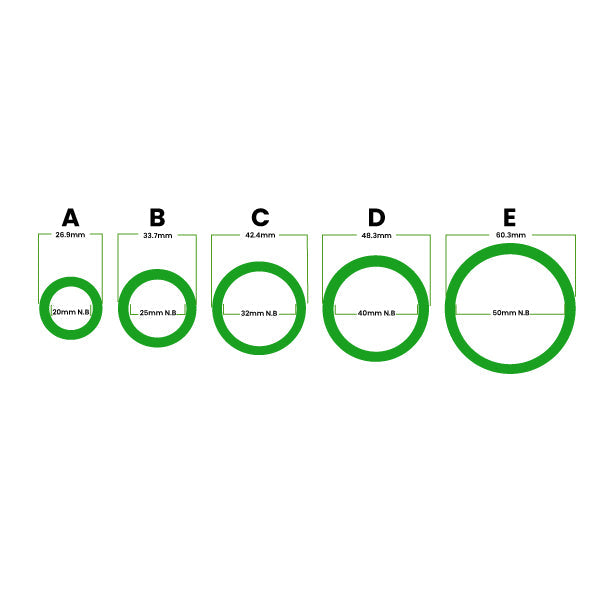

• Tube Compatibility: Fits 48.3mm O.D. tube

• Slope Range: Adjustable from 11° to 29°

• Material: Galvanised steel

• Application: Modular handrail systems on sloped surfaces

Product Options:

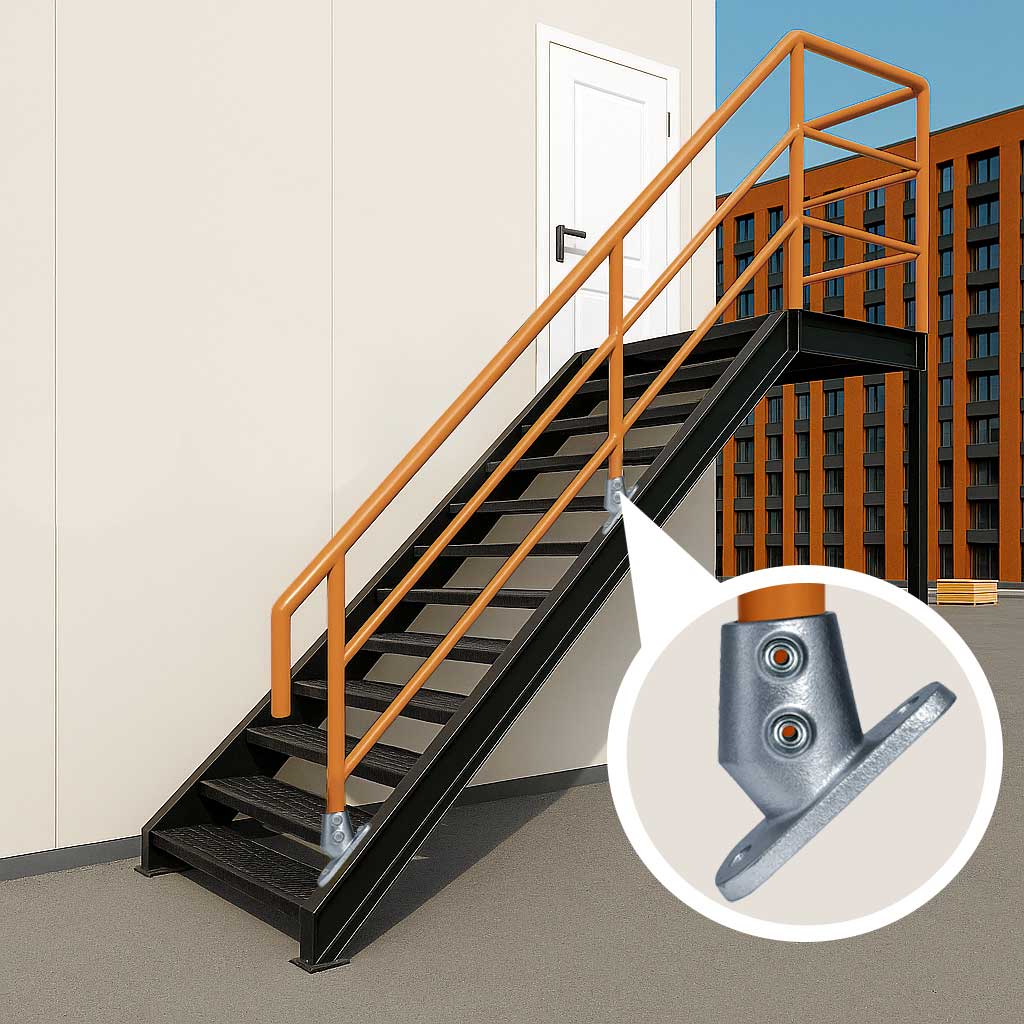

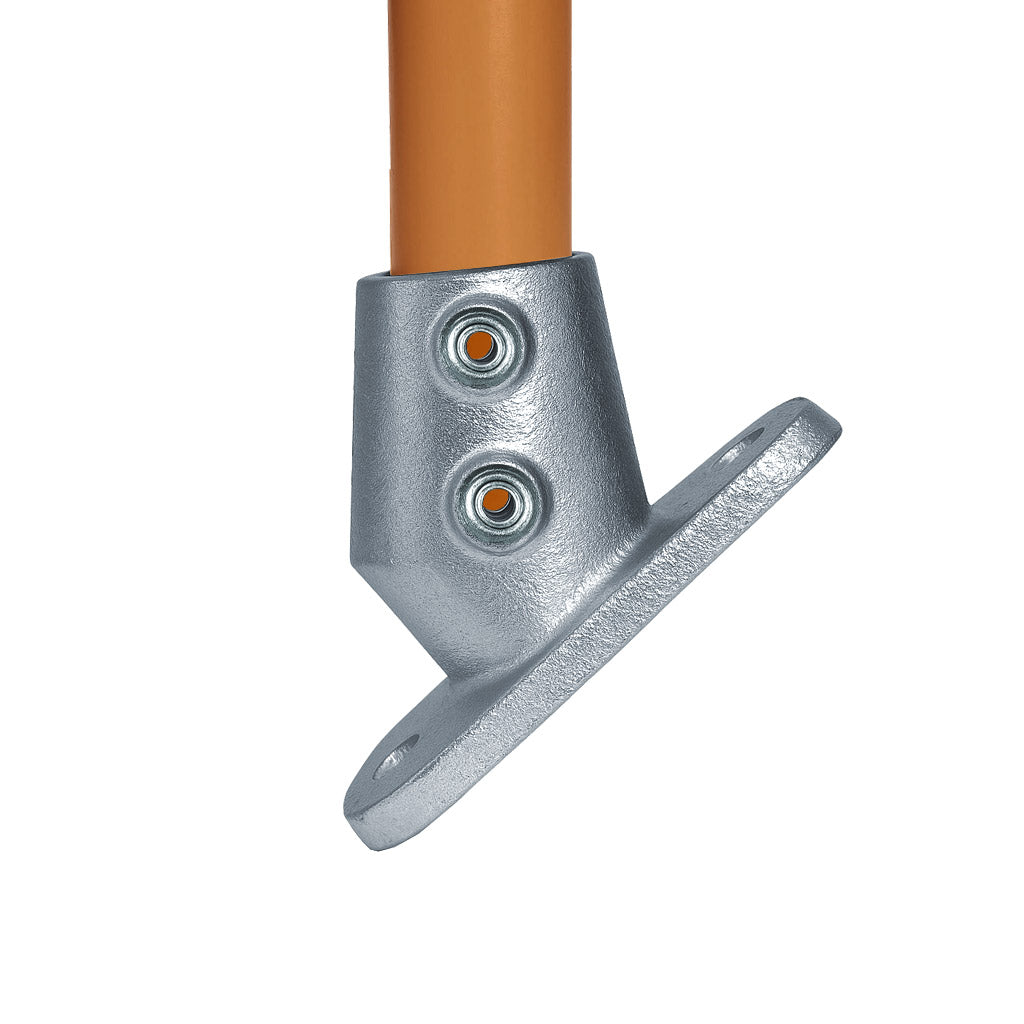

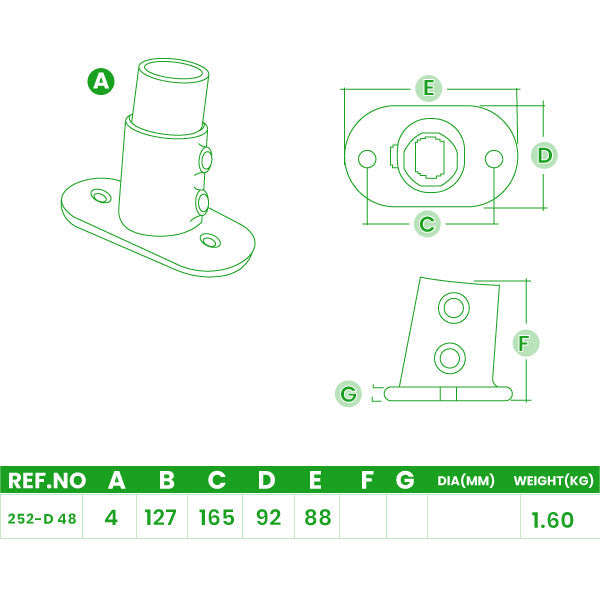

• Base Flange 252 D – Mounts uprights at a slope; for light-duty use only

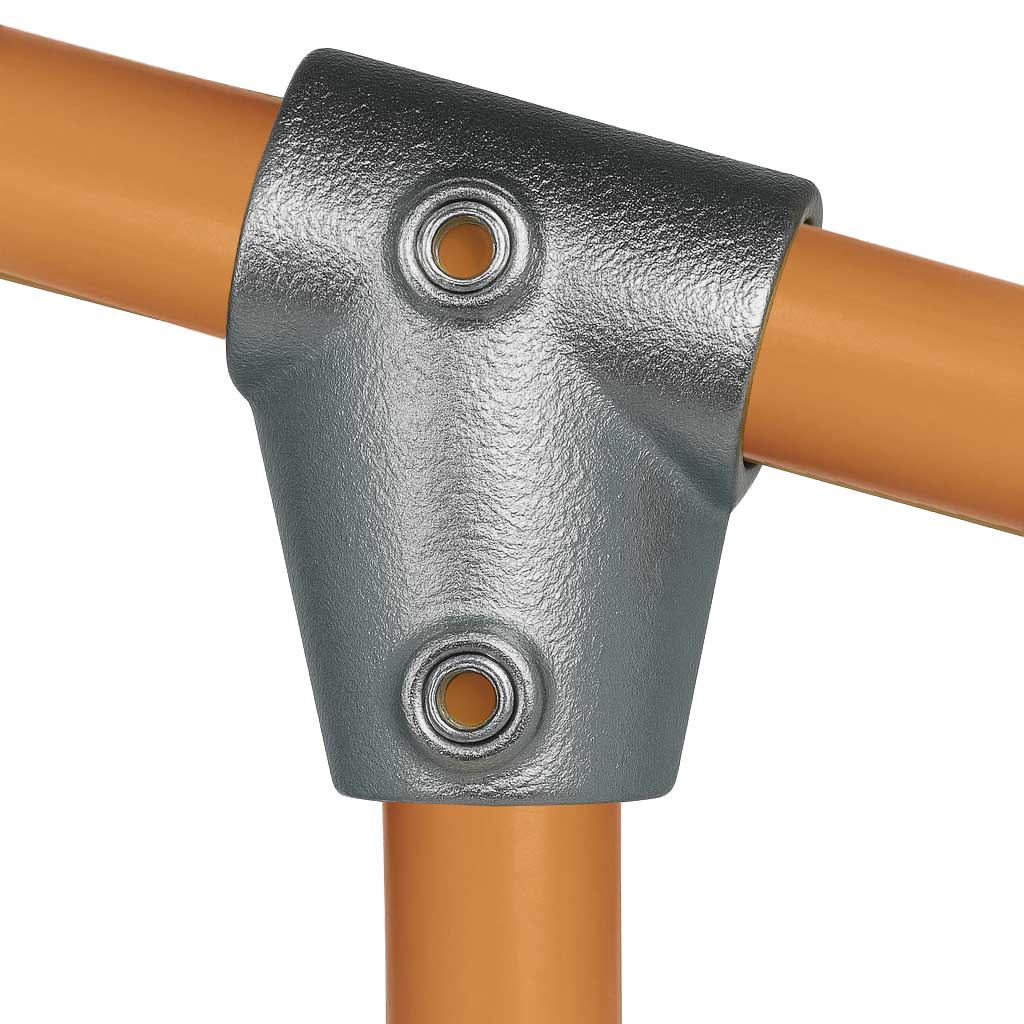

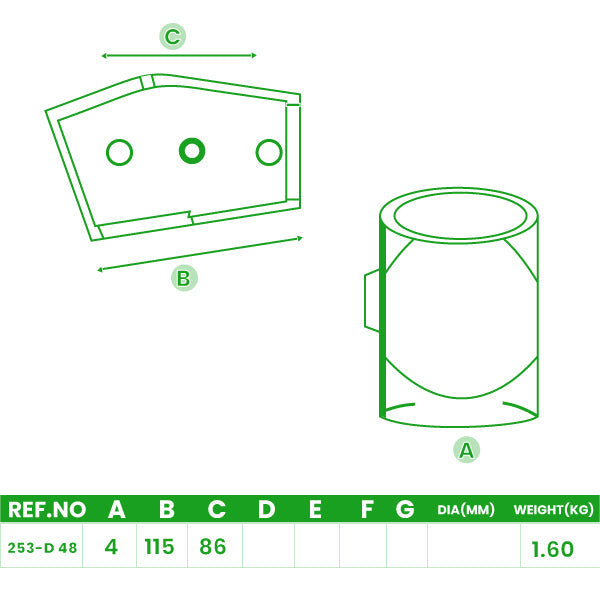

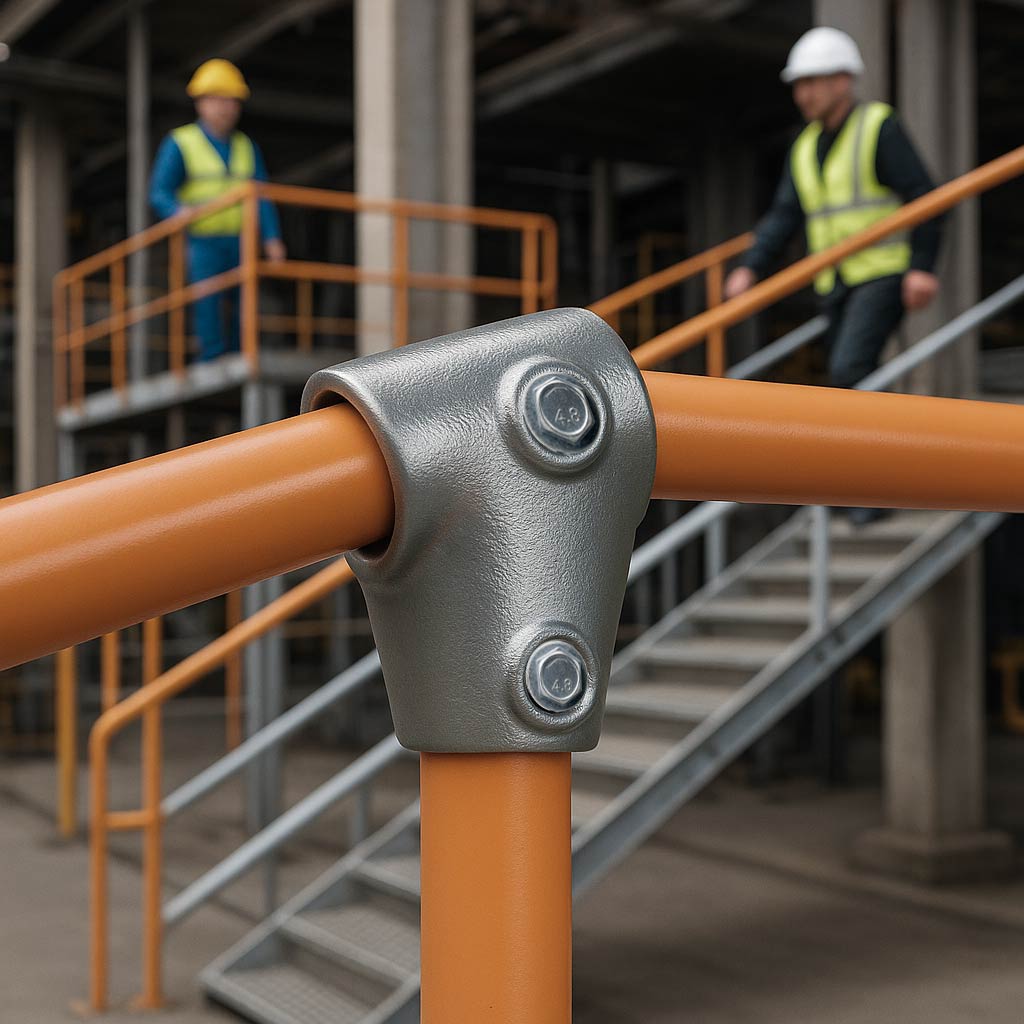

• Short Tee 253 D – Connects intermediate uprights to top/mid rails

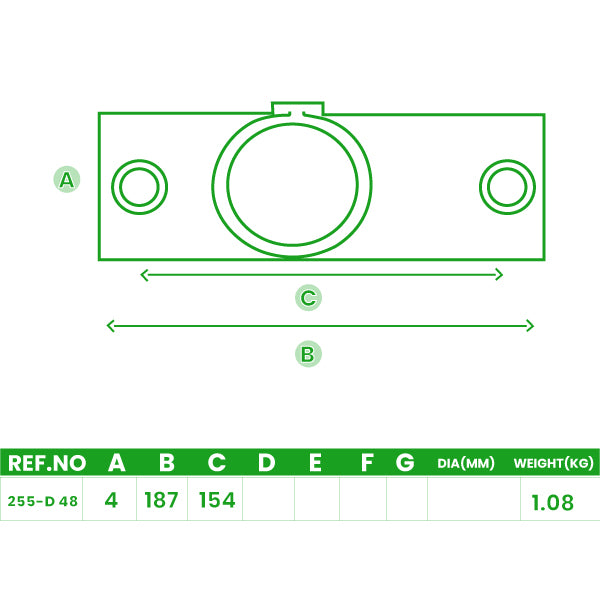

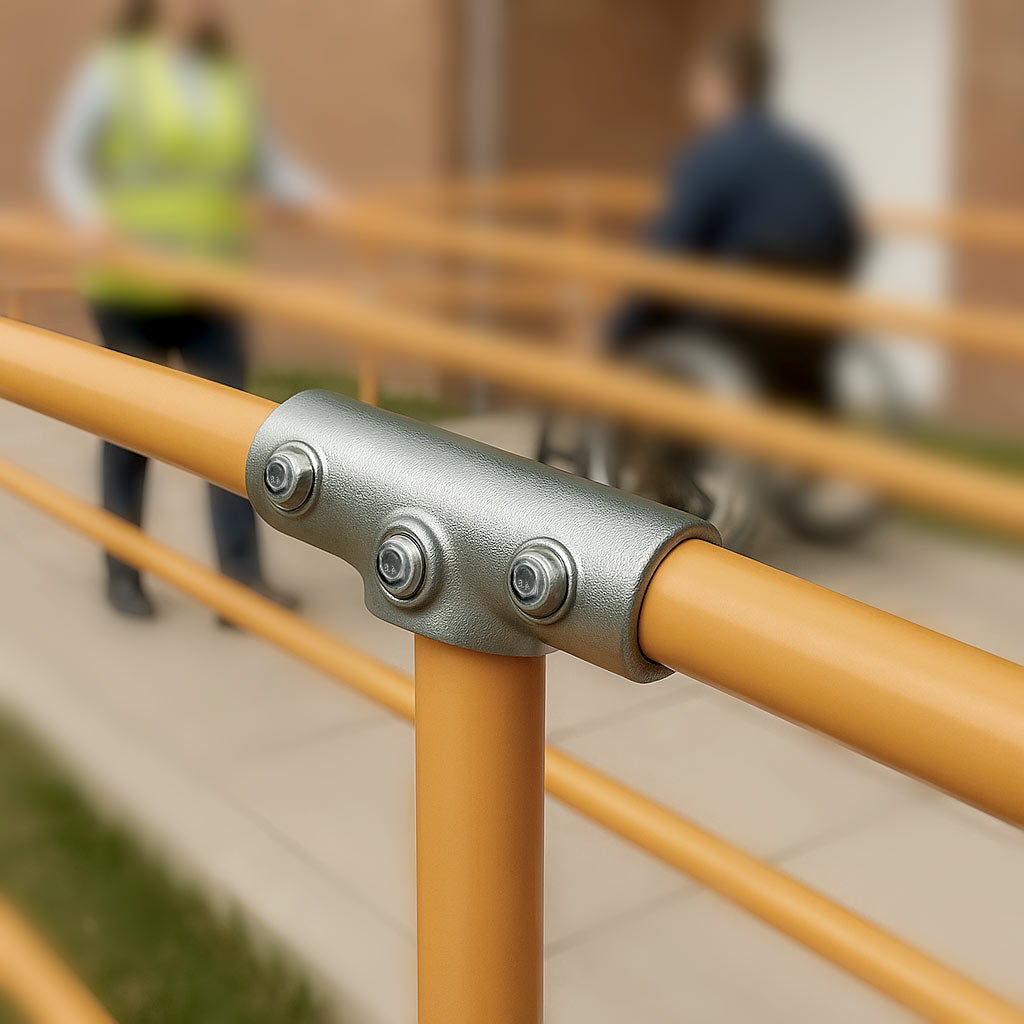

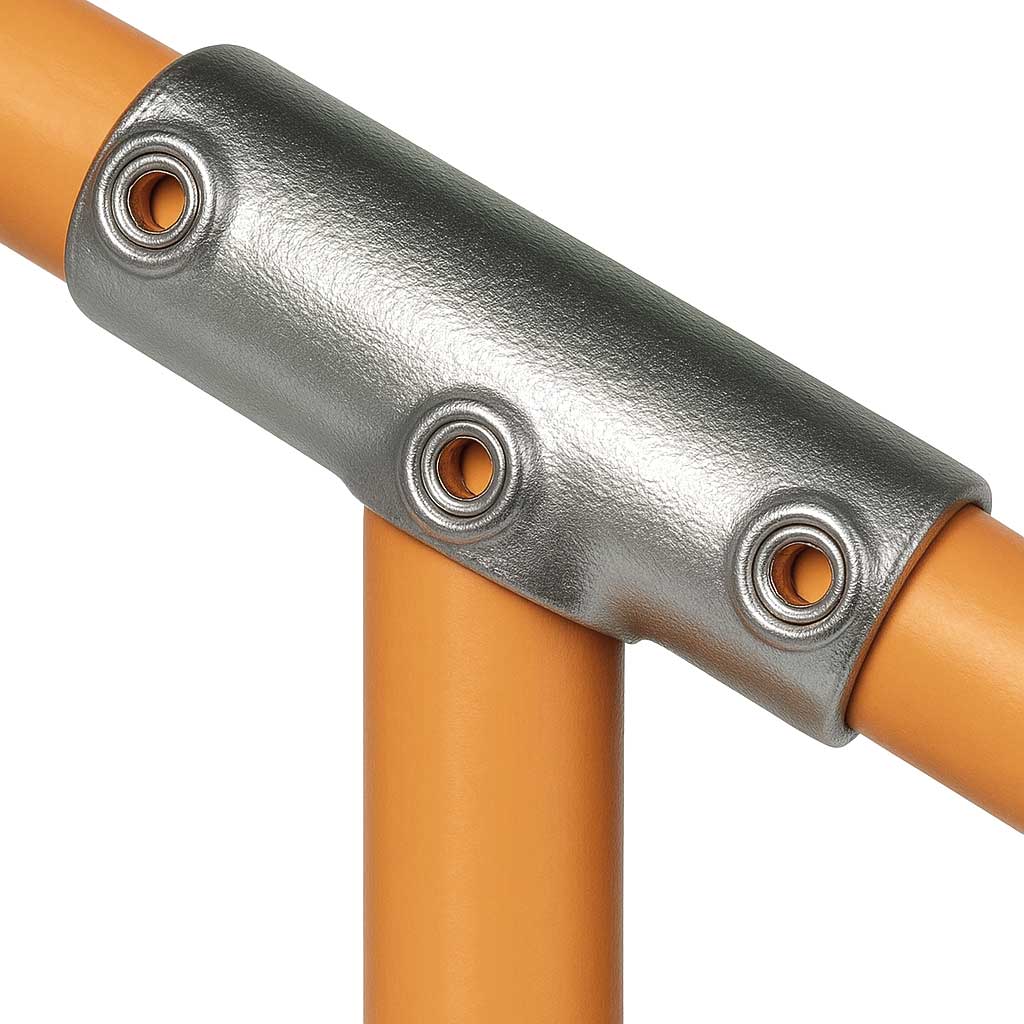

• Long Tee 255 D – For end upright to handrail or middle rail connection

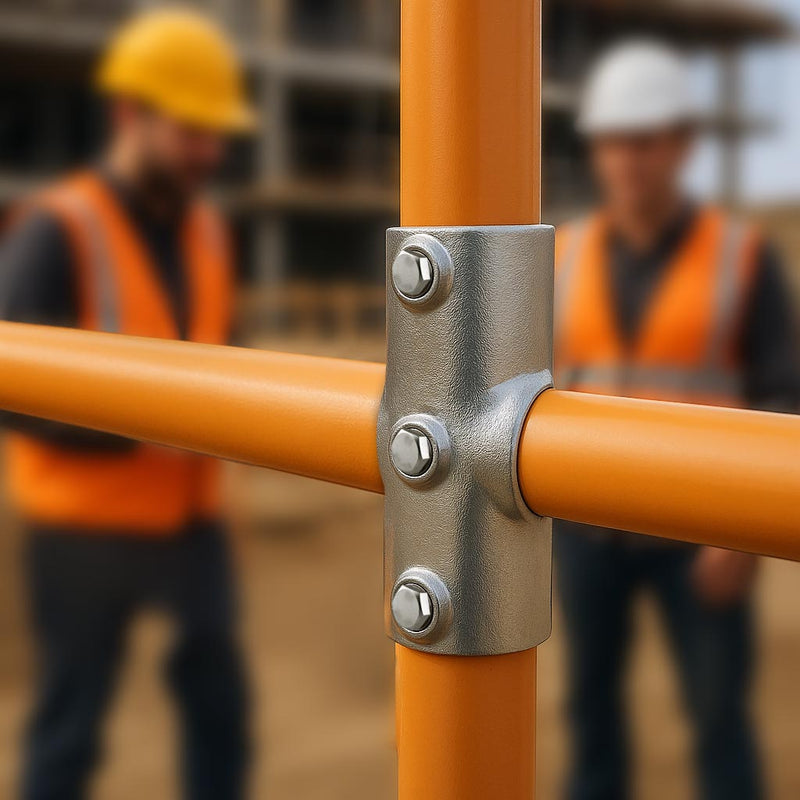

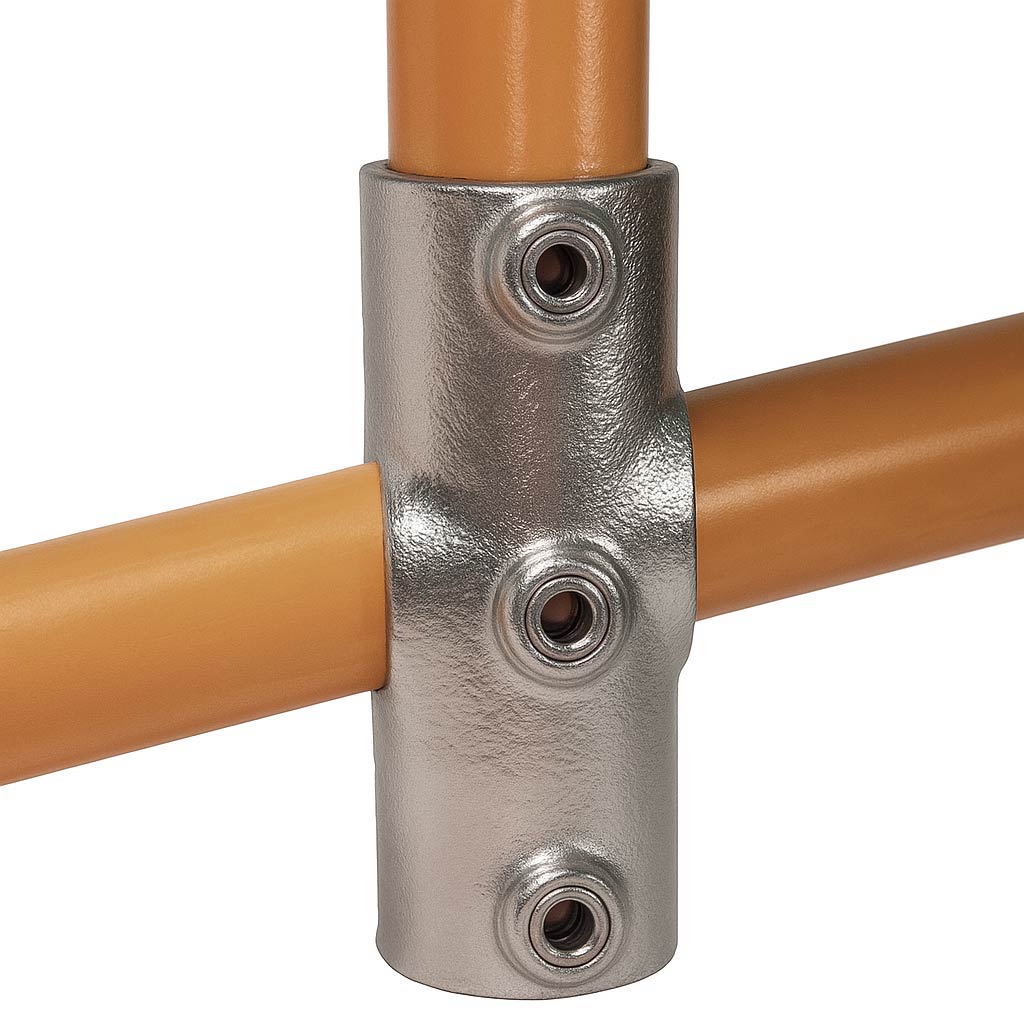

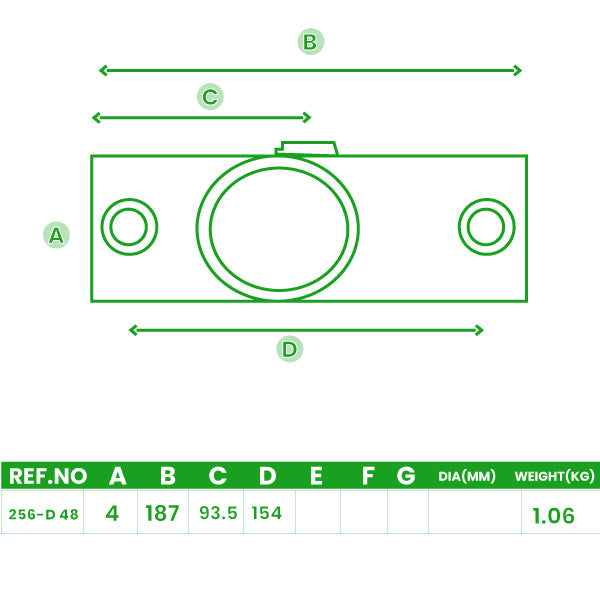

• Cross 256 D – Connects middle rails to uprights on slopes

Key Features:

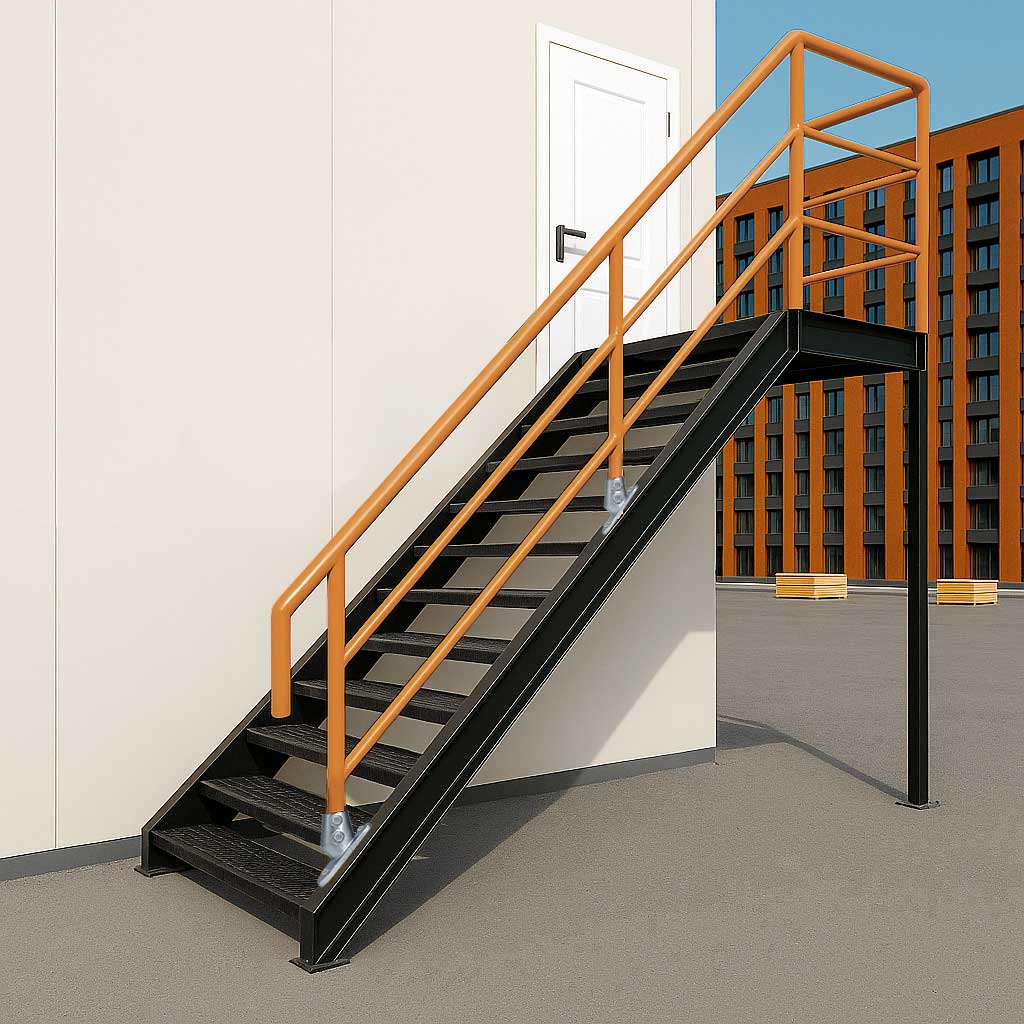

• Enables clean, angled connections on stairs and ramps

• Compatible with all modular clamp-based railing systems

• Provides flexible installation on sloping sites

• Quick to assemble—no welding required

• Ideal for commercial, industrial, or access platforms
