Description

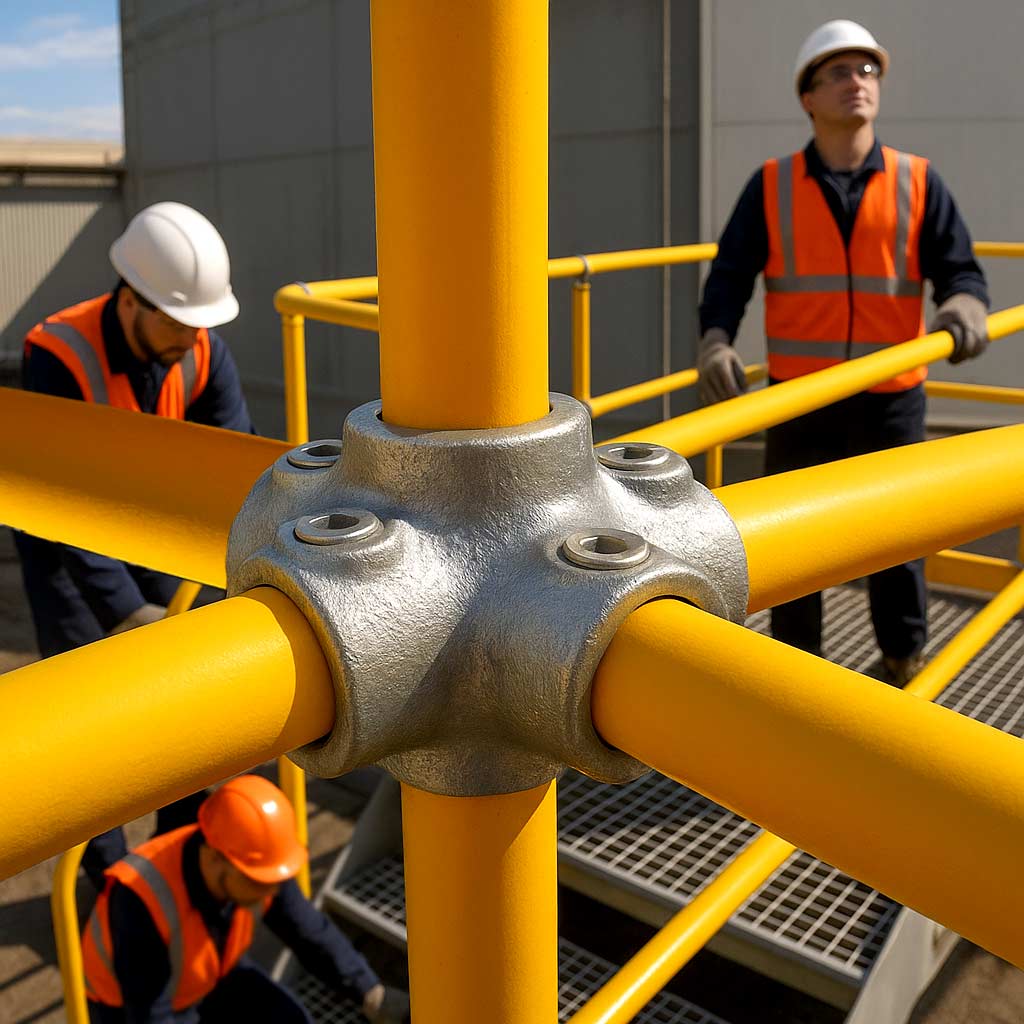

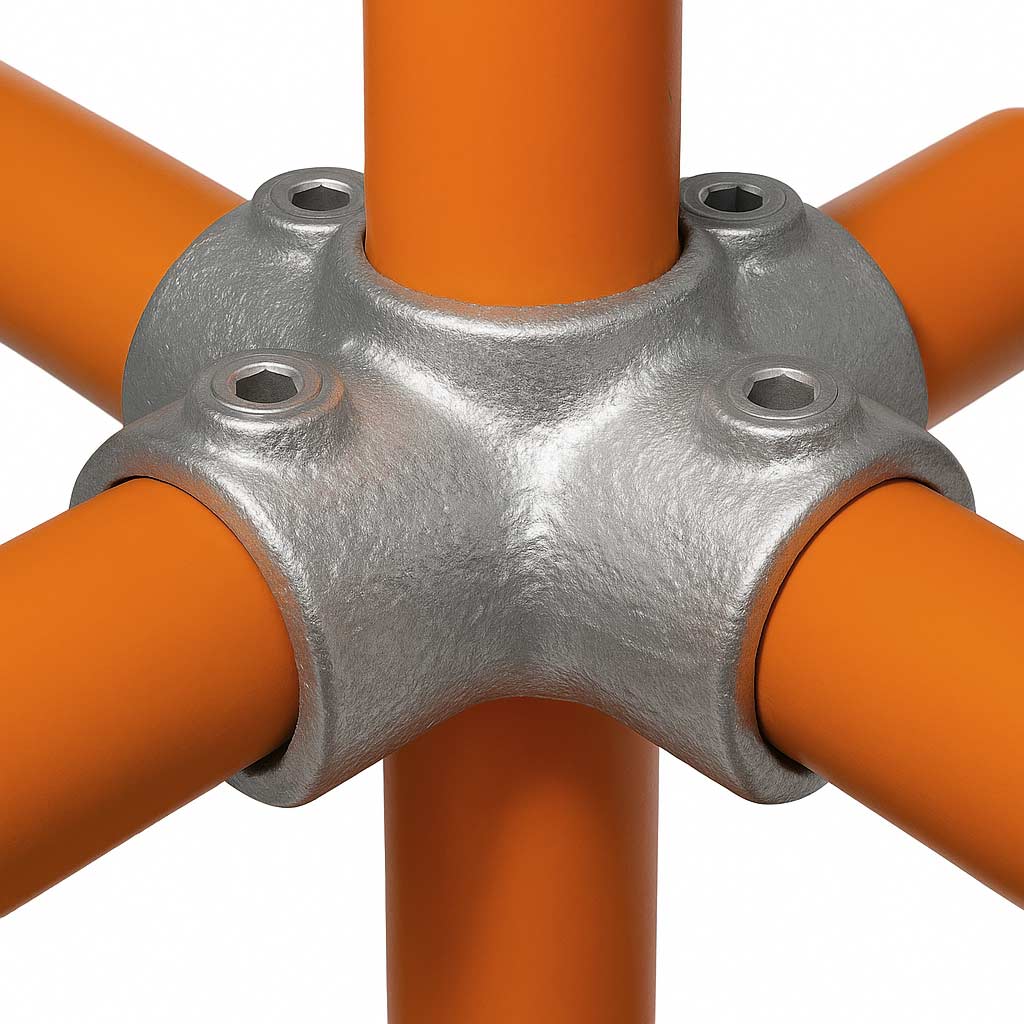

4 Way Cross Clamp Fitting – 90° Connector for Multi-Rail Structures
This versatile clamp fitting forms a 90° intersection between a vertical upright and four horizontal handrails. Commonly used in the centre of larger frames or play structures, where multiple cross connections are required.
Specifications:
-
Type: 4 way cross clamp fitting
-
Connection: 1 upright (through) + 4 horizontal rails at 90°
-
Material: Galvanised steel (check finish if specified)
-
Vertical: Tube passes through continuously—cannot join within fitting

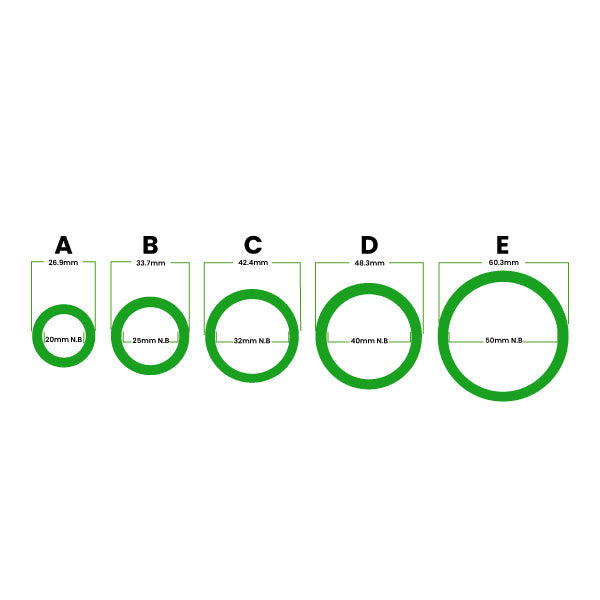

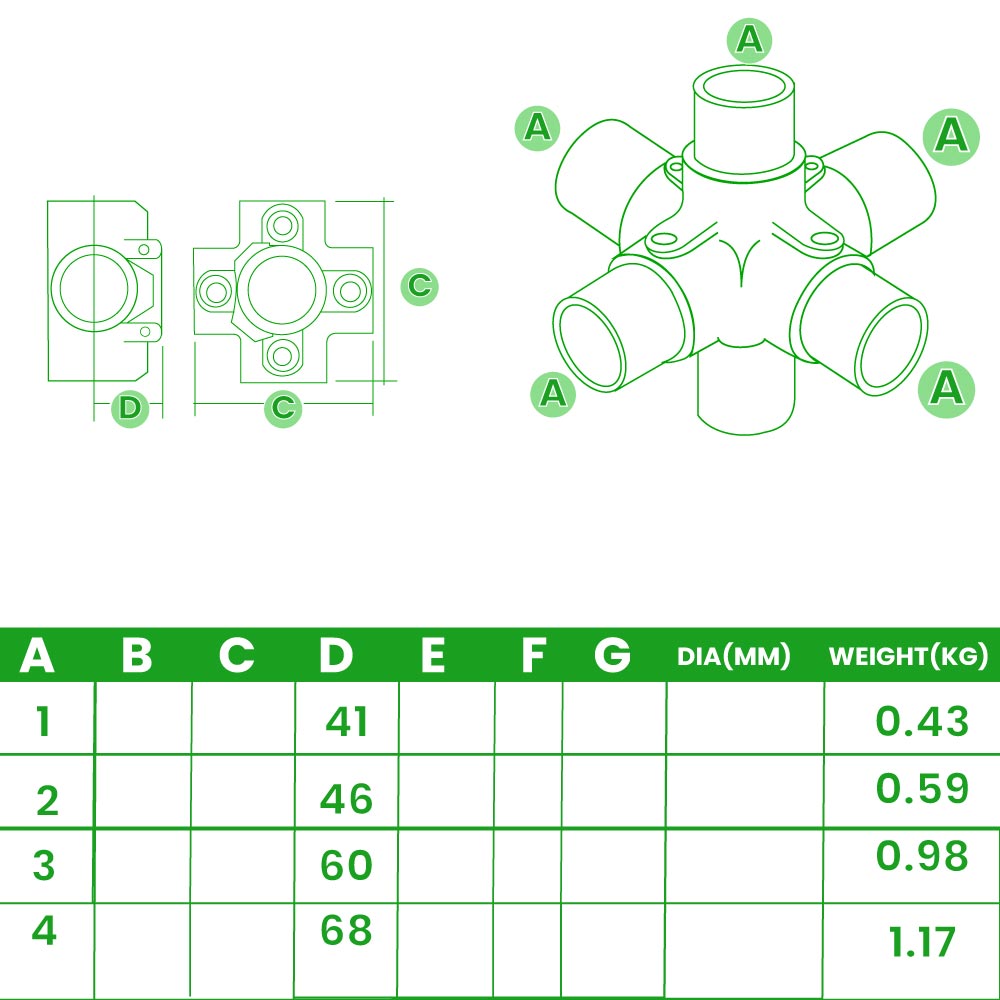

Select Product Size Options:
-
Fits 26.9mm O.D. tube
-
Fits 33.7mm O.D. tube
-
Fits 42.4mm O.D. tube
-
Fits 48.3mm O.D. tube
Key Features:
-
Ideal for mid-structure handrail or framework intersections
-
Provides secure multi-directional support without welding
-
Great for modular play zones, access frames, or safety railings
-
Compatible with standard modular handrail systems
-
Easy to install with hex bolts (not included unless specified)
