Description
Premium Heavy Duty Impact Protection Railing System
This Premium Heavy Duty Impact Protection Railing System is engineered for the robust protection of pedestrian walkways against vehicle traffic. It ensures the safety of pedestrians while offering exceptional durability and construction quality.
- Ensures the safety of pedestrians against vehicle traffic.
- Exceptional durability and construction quality.
- Modular framework allows for swift and straightforward installation.
- Countersunk bolts firmly attach rails to posts.
- Perfectly suited for tailored applications.
- Can be conveniently expanded at any point.
- Damaged parts can be replaced with ease.
- Secured effortlessly with bolts (not included).
- TUV-certified in accordance with DGUV 108-007.
Applications:

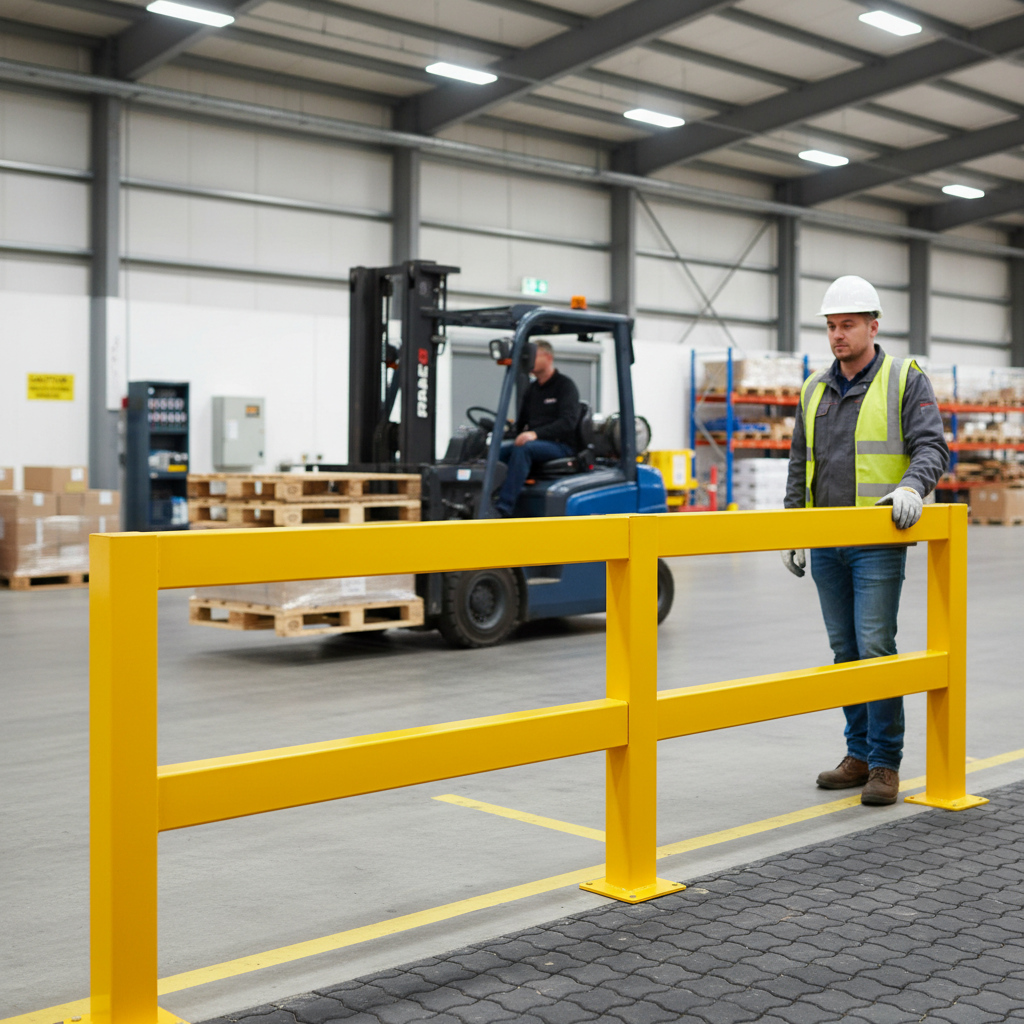

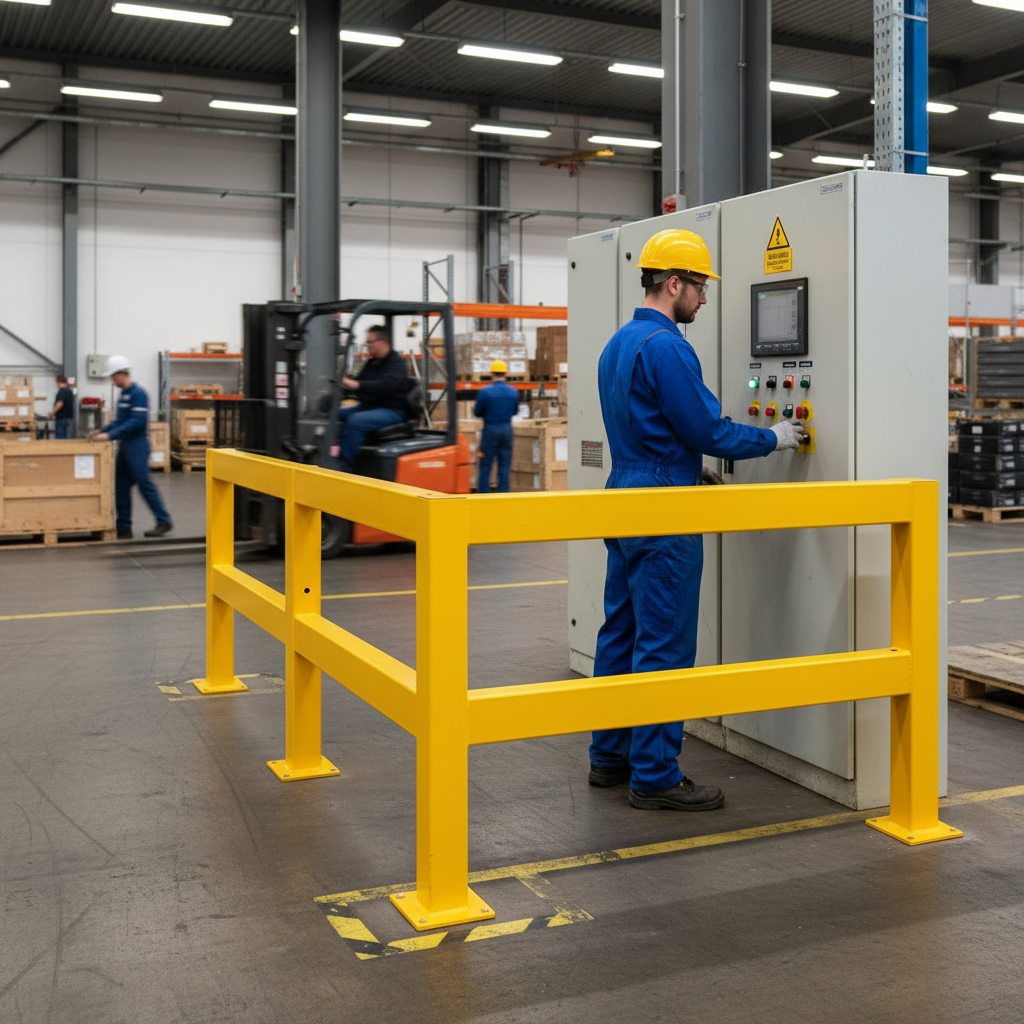

This system is ideal for separating traffic lanes designated for forklifts from pedestrian pathways, essential for safeguarding work zones, equipment, machinery, and facilities.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Posts Size | 100 x 100mm square |
| Post Height | 500mm and 1,000mm |
| Base Plate Size | 200 x 200 x 10mm thick (drilled 4 fixing holes) |
| Lateral Rails Size | 120mm x 80mm x 4mm wall |
| Rail Lengths | 1,000, 1,200, 1,500, or 2,000mm |
| Matching Bollards Size | 1,000mmH x 100 x 100mm Square |
| Bollard Base Plate Size | 200 x 200 x 10mm thick (drilled 4 fixing holes) |
Finishes:
- Interior: Powder coated yellow
- Exterior: Hot Dip Galv., powder coated yellow
Optional FLEX Mounting:
The incorporation of a polyurethane pad, resistant to UV rays, weather conditions, and temperature fluctuations, allows the guard rails to deflect up to 10 degrees. This feature enhances the railing system's ability to absorb shocks and impacts, significantly minimizing potential damage. Additionally, the pad raises the height of the railing system by 40mm and is secured in place with four chemi-anchors for each post.
Lead Time Note: Please note that galvanized and powder-coated finishes add 10 days lead time.
Technical Specifications
The system is designed with a modular framework allowing for easy customization and expansion, ensuring a tailored fit for various applications. All components are made with high-quality materials, ensuring long-lasting performance and safety.
Frequently Asked Questions
-
What materials are used in the railing system?
The railing system is constructed from heavy-duty materials, ensuring durability and safety. -
Can the system be customized?
Yes, the modular design allows for easy customization and expansion based on specific needs. -
What is the lead time for orders?
Galvanized and powder-coated finishes add 10 days lead time.
